Description

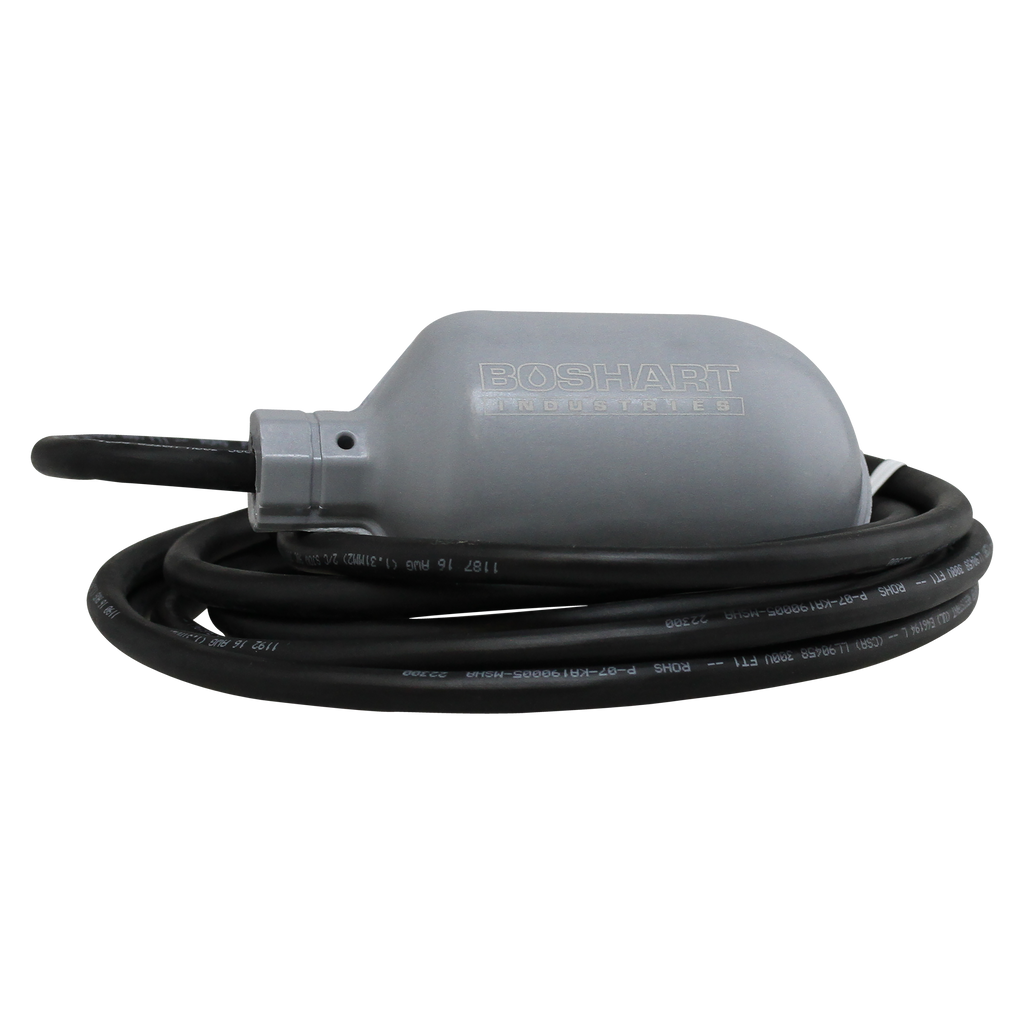

240v - 1-1/2hp Pump Up Switch 20' Cord
Part number: FS13U240PB-20
Sold as: Pack of 24
Estimated shipping: 14+ days
Category: Switches
UPC: 777808519989
Specifications
- Product Family: Pump Up Polypropylene 1.5HP/240V/13AMP
- Boshart Part Number: FS13U240PB-20
- Available In: 20.00
- Carton Quantity: 24
- UPC: 777808519989
- Package Width: 9.25 in
- Package Height: 3.6 in
- Package Length: 9.3 in
- Package Weight: 2.18 lb
- Description: Boshart FS13U240PB Series Pump Up Float (Pump) Switches are used to turn a pump on with liquid level falling, the contacts are normally closed (NC) for filling tank applications. Contacts are closed while the switch is hanging down and will open on a rising liquid level. This product can be used for a variety of applications, including but not limited to, cisterns, water tanks, and any other filling or low liquid level alarm applications. These float switches are wide angle, mechanically operated, and the contacts are opened / closed by a ball inside the float housing. All switches are supplied with a 240VAC piggyback plug in several cable lengths. Suitable for applications up to 1-1/2 HP with fluid temperatures up to 140° F (60°C). NOTE: Pump switches are not to be used as control / sensor switches directly wired into a control panel.
- Cord Length: 20.00 FEET ft
- Design: Pump Up
- Housing: Polypropylene
- Voltage: 240 VAC
- Temperature Range: 0°F to 140°F (-18°C to 60°C)
- Single Phase Electrical Rating: 1.5HP/240V/13AMP
- Product Model Short Description: Float Switches
- Certifications: CSA C22.2 No. 14
