Description

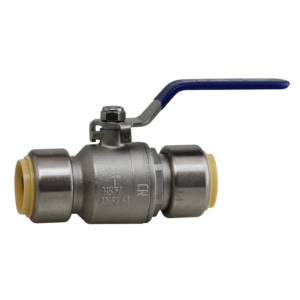

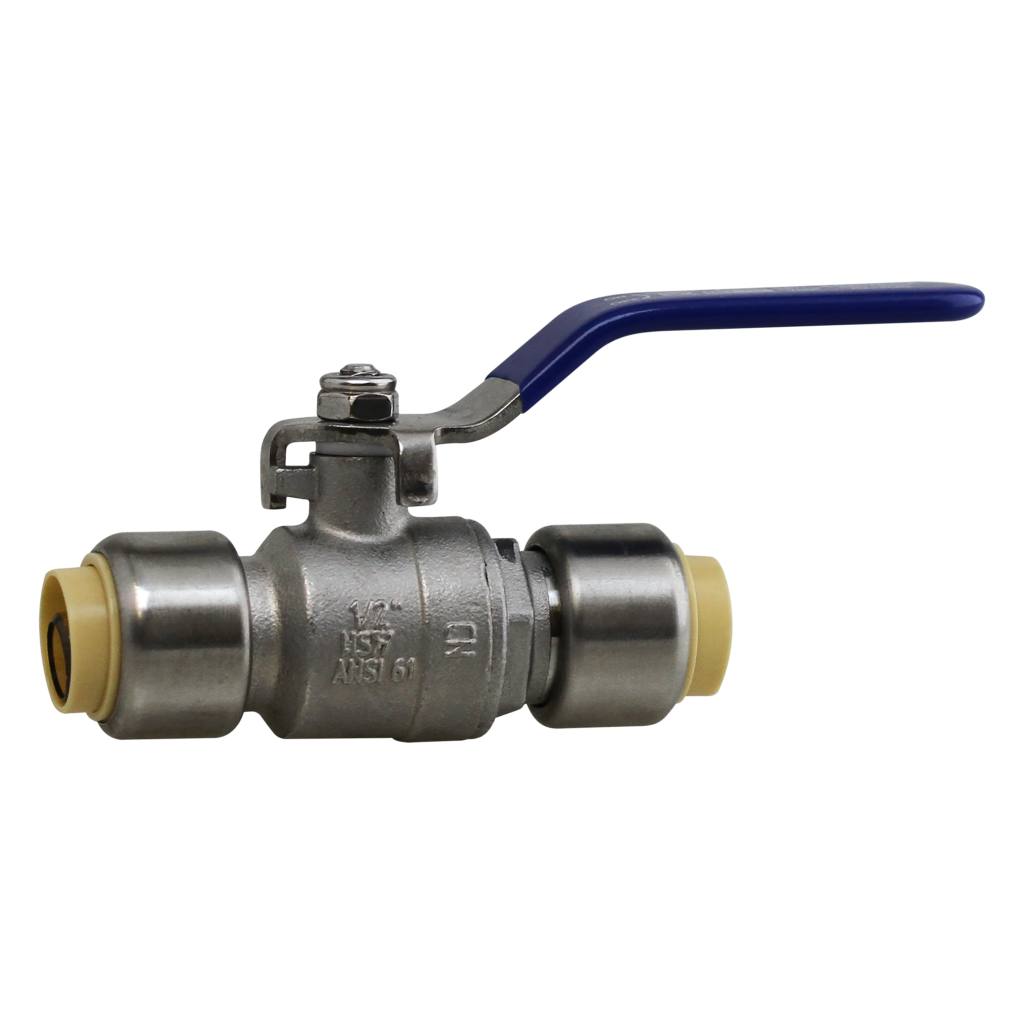

1" 304SS Push Fit Ball Valve - ASSE 1061
Part number: SSPFBV-10
Sold as: Each
Category: Fittings
UPC: 777808523627
Specifications
- Product Family: Push Fit 304 Stainless Steel 300 PSI CWP at 100°F (37.8°C); 200 PSI at 200°F (93°C)
- Boshart Part Number: SSPFBV-10
- Available In: 1"
- Carton Quantity: 5
- Package Width: 1.82 in
- Package Height: 2.11 in
- Package Length: 4.39 in
- Package Weight: 1.22 lb
- Description: Boshart's Stainless Steel Push Fit Ball Valves are designed for use on copper, CPVC, PEX PE-RT & HDPE piping in plumbing and hydronic heating systems. Approved for use in both underground and behind- the-wall applications (with proper wrapping to prevent corrosion). Eliminates need for soldering, crimping, or solvent welding, making them perfect for repairs in wet, hazardous or hard-to-reach locations. Valves come complete with stiffeners for PEX, PE-RT & HDPE piping, which can be removed for copper installations. Additionally, these valves are reusable and easily disassembled using the plastic disconnect tool.
- Short Description: Stainless Steel Push-Fit Ball Valves
- Ball Material: Stainless Steel
- Port Size: 0.98 INCH in
- Size: 1"
- Handle Type: Locking
- Design: Full Port
- Seat Material: PTFE
- Connection Type: Push Fit
- Handle Material: 304 SS / PVC Sleeve
- Primary Material: 304 Stainless Steel
- Temperature Range: 33.8°F (1°C) to 200°F (93°C)
- Maximum Pressure Rating: 300 PSI CWP at 100°F (37.8°C); 200 PSI at 200°F (93°C)
- Stem Packing Material: Nitrile Rubber
- Product Model Short Description: Stainless Steel Ball Valves
- Certifications: IAPMO/ANSI Z1157 No Lead NSF / ANSI 61 & 372
