Description

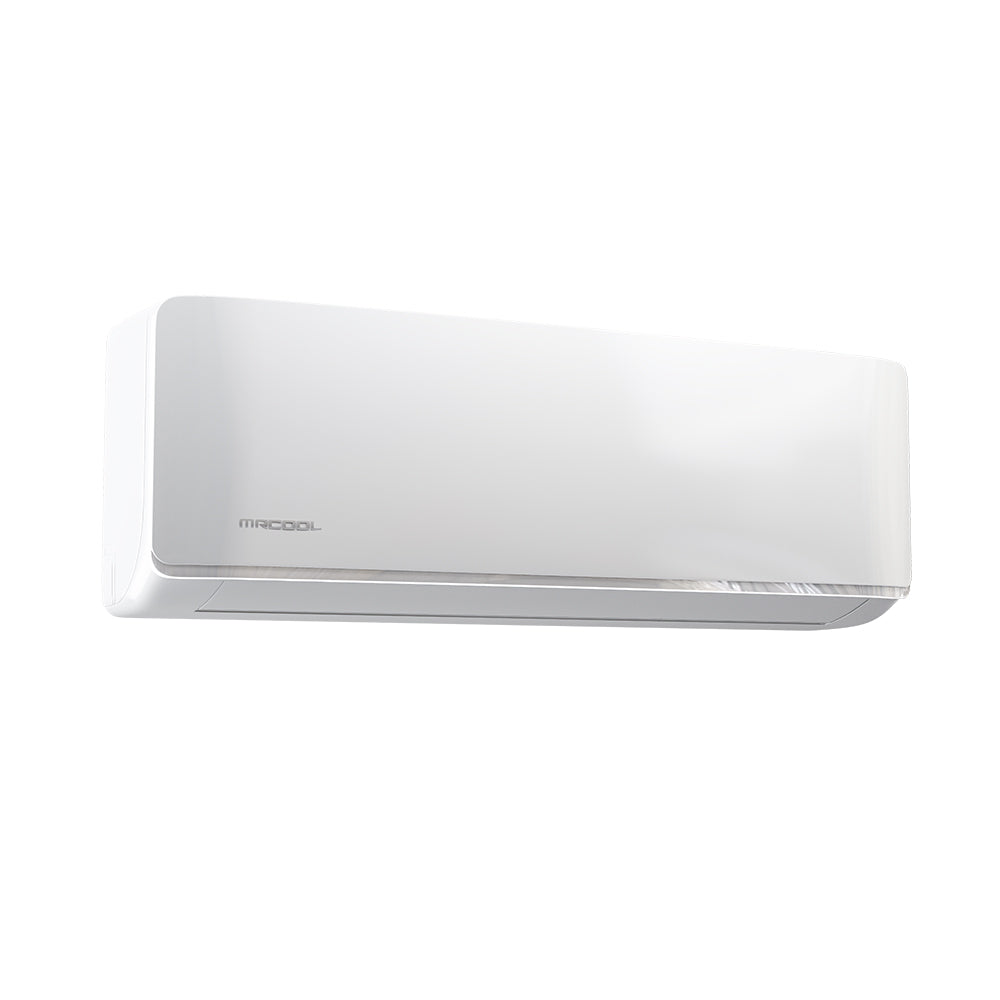

The MRCOOL� 4th Generation DIY� 12K BTU Ductless Wall Mounted Air Handler is an essential component of the MRCOOL� DIY� system. When paired with a MRCOOL� condenser, it is capable of achieving a 22 SEER efficiency rating and can heat and cool an area of up to 500 sq ft. It features multiple modes of operation such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP so it is sure to suit your needs. It can also be conveniently operated from anywhere using your Apple or Android smartphone with the Smart HVAC app. This air handler can be easily mounted with the included and easy-to-use wall mounting plate. It is also very compact, especially when compared to the components of a traditional ducted system, so it can be easily maneuvered into place. It is designed to be used with MRCOOL�s� Pre-Charged Quick Connect� Line Set, so installing the refrigerant piping is as simple as turning a few wrenches. Since the line set comes pre-charged with the precise amount of R-410A refrigerant, no vacuuming or charging is required once connected. Select the MRCOOL� 4th Generation DIY� 12K BTU Ductless Wall Mounted Air Handler to be your home comfort solution.
Model: DIY-12-HP-WMAH-230C25
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 4th Gen Wall Mount Air Handler
- MODEL: DIY-12-HP-WMAH-230C25
- GTIN: 00810063869540
- UPC: 810063869540
- UNIT TYPE: Mini Split
- COOLING CAPACITY (BTU): 12000
- HEATING CAPACITY (BTU): 12000
- VOLTAGE (V): 208-230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 3
- MOUNT TYPE: Wall
- COLOR: White
- COLOR FAMILY: White
- MAX COVERAGE AREA: Up to 500
- REFRIGERANT TYPE: R-410A
- DECIBEL RATING (DBA): 35
- DECIBEL RATING LOW (DBA): 25
- DECIBEL RATING HIGH (DBA): 40
- INVERTER: Yes
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 1/2
- BLOWER MOTOR RPM: 1050/850/650
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE WARRANTY: 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY: 5-year Parts
- BASE COMPRESSOR WARRANTY: 7-year Compressor
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU;PR;VI
- NET DEPTH (IN): 7.44
- NET HEIGHT (IN): 11.69
- NET WIDTH (IN): 31.57
- NET WEIGHT (LBS): 23.81
- GROSS DEPTH (IN): 16.34
- GROSS HEIGHT (IN): 13.98
- GROSS WIDTH (IN): 36.02
- GROSS WEIGHT (LBS): 34
Product documents
