Description

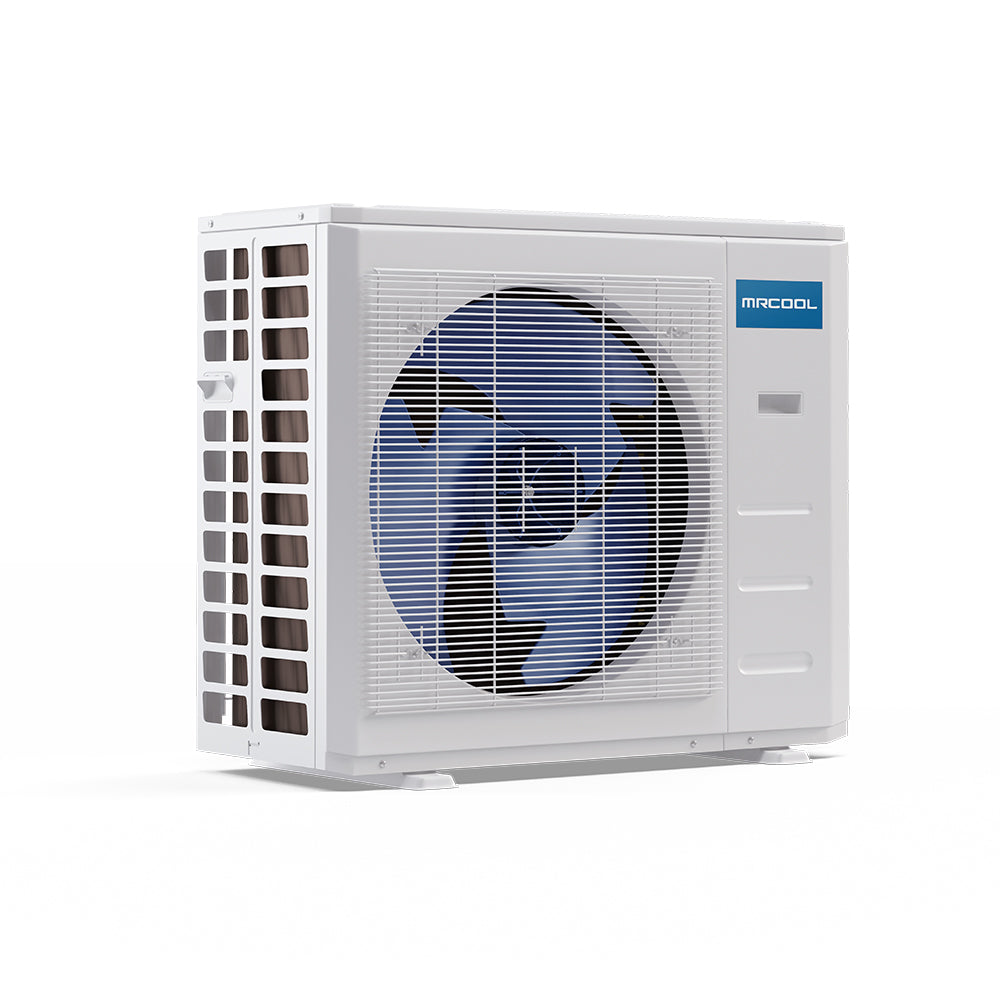

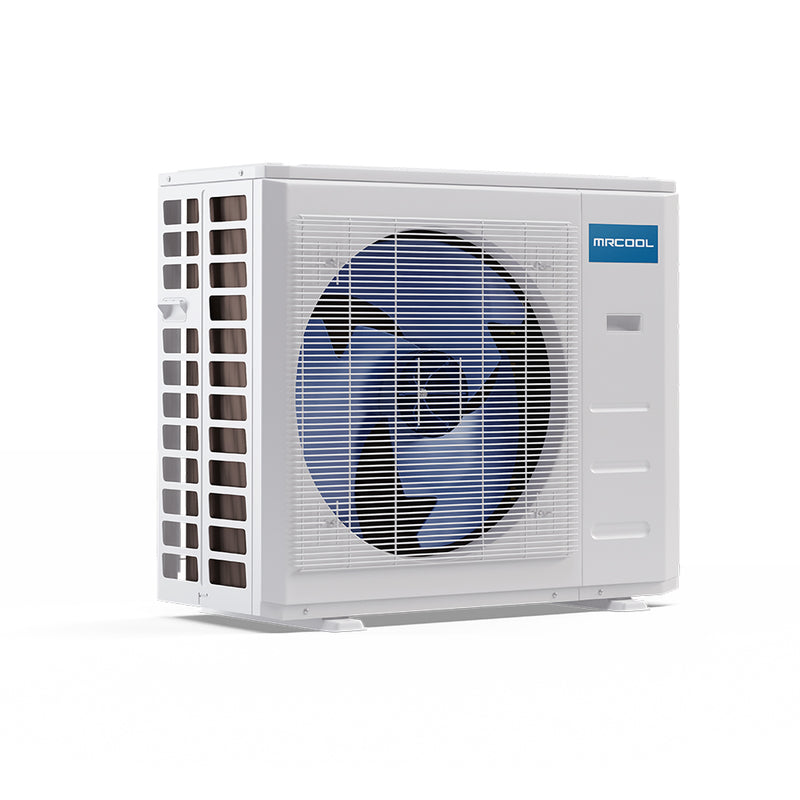

The 4th Generation MRCOOL� DIY� 18K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MRCOOL� air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13�F. It features robust construction which includes a Gold Fin� condenser coating so it is sure to withstand exposure to the elements. As a MRCOOL� DIY� product, this heat pump is designed specifically to be used with MRCOOL's� R-410A Pre-Charged Quick Connect� Line Sets�so homeowners can avoid refrigerant handling and brazing. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. The MRCOOL� DIY� 18K system is supported by comprehensive warranty coverage, including a 7-year compressor warranty and 5-year parts protection, and eligibility for the MRCOOL� Care Program. Let the 4th Generation MRCOOL� DIY� 18K be the solution to your home�s heating and cooling needs.
Model: DIY-MULTI2-18HP230C
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 4th Gen Multi-Zone
- MODEL: DIY-MULTI2-18HP230C
- GTIN: 00810063869496
- UPC: 810063869496
- UNIT TYPE: Mini-Split
- SEER: 21
- SEER2: 21.2
- EER: 12.5
- EER2: 12.5
- HSPF-4: 10.6
- HSPF-5: 8.6
- CFM: 1764.71
- COOLING CAPACITY (BTU): 18000
- HEATING CAPACITY (BTU): 19000
- VOLTAGE (V): 208-230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 25
- MIN CIRCUIT AMPACITY (A): 18
- COLOR: White
- COLOR FAMILY: White
- ZONE CAPACITY: 2
- REFRIGERANT TYPE: R-410A
- REFRIGERANT VOLUME (OZ): 65.26
- DECIBEL RATING (DBA): 59
- INVERTER: Yes
- MIN AMBIENT COOL (F): 5 ~ 122
- MIN AMBIENT HEAT (F): -13 ~ 75.2
- MAX LINESET LENGTH (FT): 123 TOTAL
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 1/2
- COMPRESSOR MOTOR TYPE: Twin - Rotary
- CONDENSER FAN MOTOR RPM: 750/600/500
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- BASE WARRANTY: 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY: 5-year Parts
- BASE COMPRESSOR WARRANTY: 7-year Compressor
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 13.46
- NET HEIGHT (IN): 26.50
- NET WIDTH (IN): 35.04
- NET WEIGHT (LBS): 100.53
- GROSS DEPTH (IN): 17.64
- GROSS HEIGHT (IN): 29.33
- GROSS WIDTH (IN): 40.94
- GROSS WEIGHT (LBS): 111
- BROCHURE: Open
- SPECS: Open
- MISC DOC4: Open
