Description

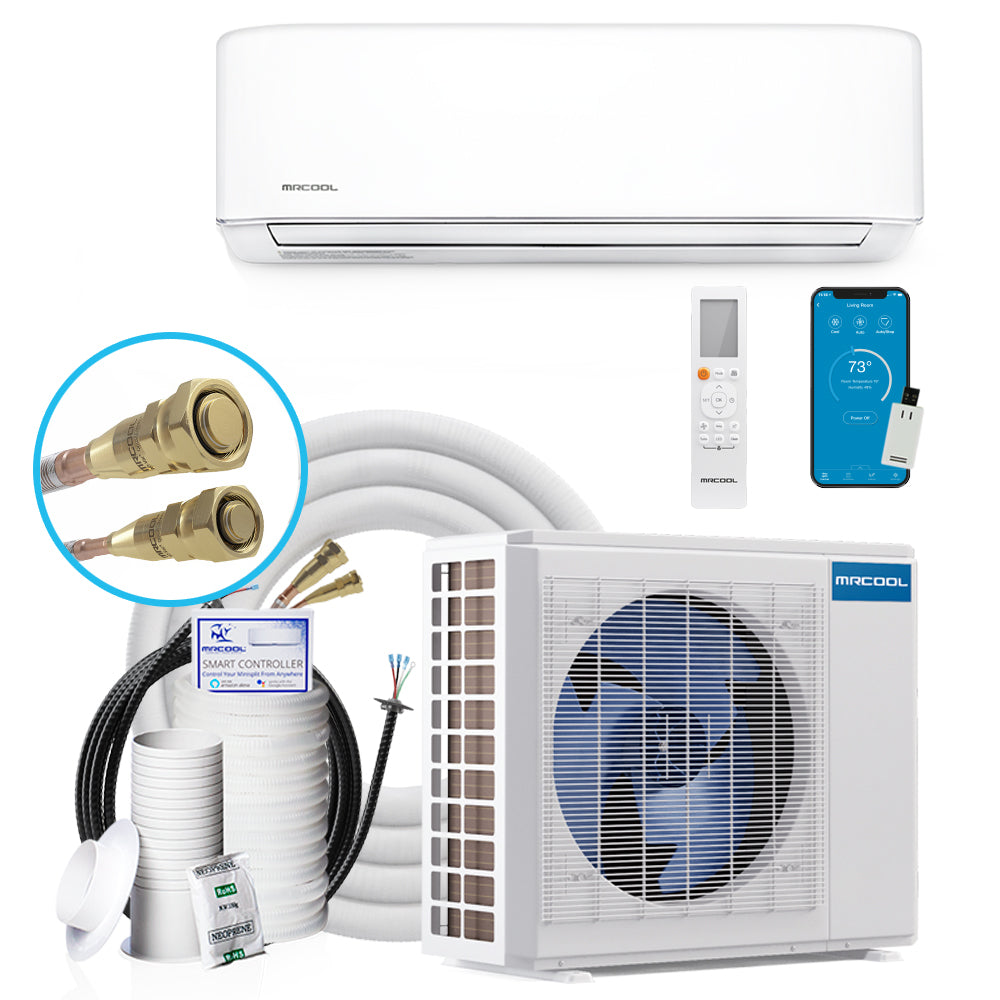

MRCOOL DIY 4th Generation 24,000 BTU ductless mini-split heat pump complete system for 208-230V power. Includes the DIY-24-HP-C-230C25 condenser and DIY-24-HP-WMAH-230C25 wall-mounted air handler. Consult the manufacturer brochure and installation manual for the listed system ratings, included components, and installation requirements.
Model: DIY-24-HP-WM-230C25
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 4th Gen E STAR
- MODEL: DIY-24-HP-WM-230C25
- GTIN: 00810035935174
- UPC: 810035935174
- UNIT TYPE: Mini-Split
- SEER: 20.5
- SEER2: 20.5
- EER: 12.5
- EER2: 12.5
- COP 47: 3.15
- HSPF-4: 10.5
- HSPF-5: 9
- HSPF2-4: 9.2
- HSPF2-5: 7.1
- CFM: 605.88/505.88/364.71
- TONNAGE: 2
- COOLING CAPACITY (BTU): 23000
- HEATING CAPACITY (BTU): 25000
- VOLTAGE (V): 208-230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 35
- MIN CIRCUIT AMPACITY (A): 22
- COLOR: White
- COLOR FAMILY: White
- RATED LOAD: 0.45
- MAX COVERAGE AREA: Up to 1000
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-410A
- REFRIGERANT VOLUME (OZ): 81.13
- DECIBEL RATING (DBA): 48.5/43.5/33
- DECIBEL RATING LOW (DBA): 33
- DECIBEL RATING HIGH (DBA): 48.5
- AIR FLOW DIRECTION: 4-W
- OSCILLATION: Yes
- INVERTER: Yes
- MIN AMBIENT COOL (F): -13 ~ 122
- MIN AMBIENT HEAT (F): -13 ~ 75
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 75
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- COMPRESSOR MOTOR TYPE: Twin-Rotary
- CONDENSER FAN MOTOR RPM: 850/750/700
- BLOWER MOTOR RPM: 1200/1000/700
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- UL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE WARRANTY: 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY: 5-year Parts
- BASE COMPRESSOR WARRANTY: 7-year Compressor
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU;PR;VI
- VIDEO 1: Open
- VIDEO 2: Open
- VIDEO 3: Open
- VIDEO 4: Open
- VIDEO 5: Open
- BROCHURE: Open
- SPECS: Open
