Description

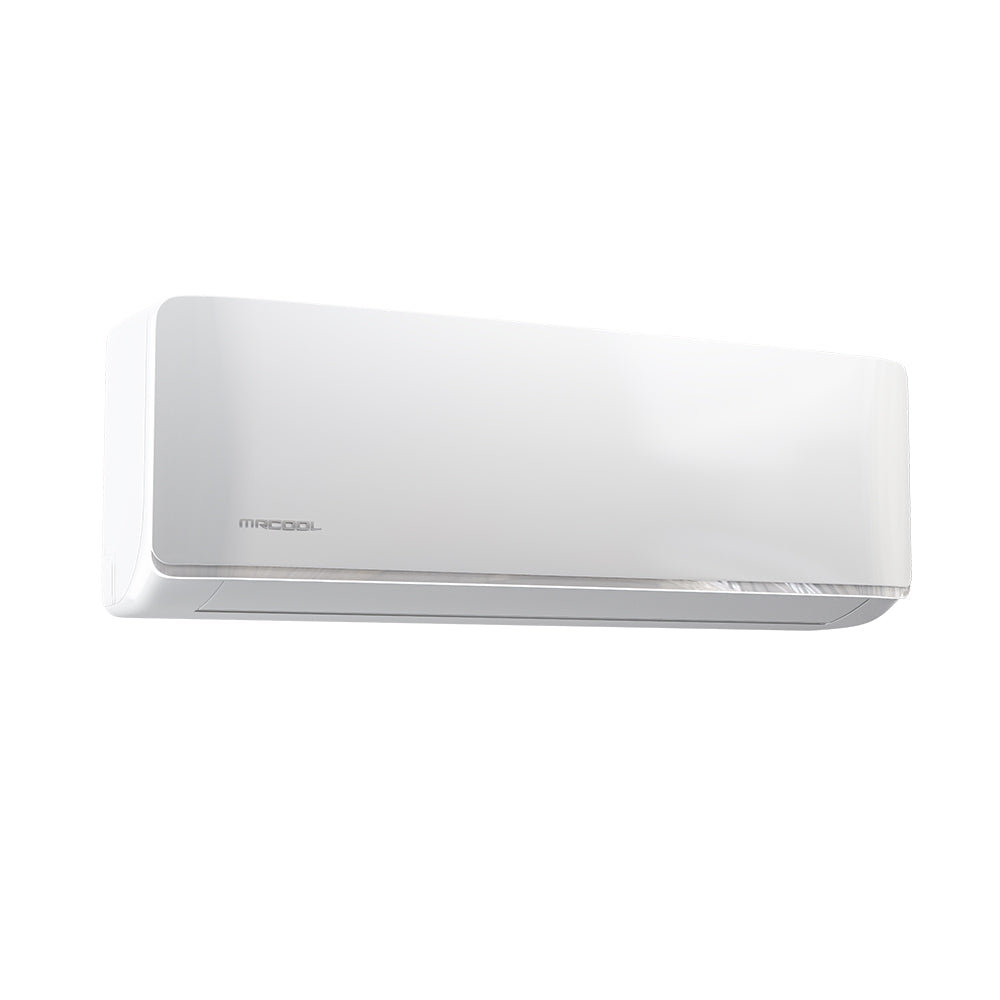

The MRCOOL� 4th Generation DIY� 24K BTU Ductless Wall Mounted Air Handler offers the performance you need to compliment your MRCOOL� DIY� system. When connected to a MRCOOL� condenser, this air handler has the ability to reach a 20.5 SEER efficiency rating. It also has the power to deliver air to an area of up to 1,000 sq. ft.To make sure it can handle your needs, it is also equipped with multiple operating modes which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. With the use of the Smart HVAC app, it also has the ability to be operated from your Apple or Android smartphone. With its compact design and easy to use mounting plate, this air handler can be mounted to most interior walls. It is also meant to be used with the MRCOOL� Pre-Charged Quick Connect� Line Set to further the ease of installation. This line set is equipped with MRCOOL�s� patented quick connectors, so it can be connected with use of only simple hand tools. It also precharged from the factory with the correct amount of R-410A refrigerant and requires no vacuuming once connected. The MRCOOL� 4th Generation DIY� 24 BTU Ductless Wall Mounted Air Handler is equipped with the power and performance to satisfy air conditioning needs of your home.
Model: DIY-24-HP-WMAH-230C25
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 4th Gen Wall Mount Air Handler
- MODEL: DIY-24-HP-WMAH-230C25
- GTIN: 00810063868536
- UPC: 810063868536
- UNIT TYPE: Mini Split
- COOLING CAPACITY (BTU): 23000
- HEATING CAPACITY (BTU): 25000
- VOLTAGE (V): 208-230
- PHASE: 1
- CYCLE: 60
- MOUNT TYPE: Wall
- COLOR: White
- COLOR FAMILY: White
- MAX COVERAGE AREA: Up to 1000
- REFRIGERANT TYPE: R-410A
- DECIBEL RATING (DBA): 48.5/43.5/33
- DECIBEL RATING LOW (DBA): 33
- DECIBEL RATING HIGH (DBA): 48.5
- INVERTER: Yes
- MAX LINESET LENGTH (FT): 98.42
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- BLOWER MOTOR RPM: 1200/1000/700
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE WARRANTY: 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY: 5-year Parts
- BASE COMPRESSOR WARRANTY: 7-year Compressor
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU;PR;VI
- NET DEPTH (IN): 8.90
- NET HEIGHT (IN): 13.19
- NET WIDTH (IN): 42.52
- NET WEIGHT (LBS): 35.27
- GROSS DEPTH (IN): 19.57
- GROSS HEIGHT (IN): 17.32
- GROSS WIDTH (IN): 49.09
- GROSS WEIGHT (LBS): 60
- BROCHURE: Open
- SPECS: Open
