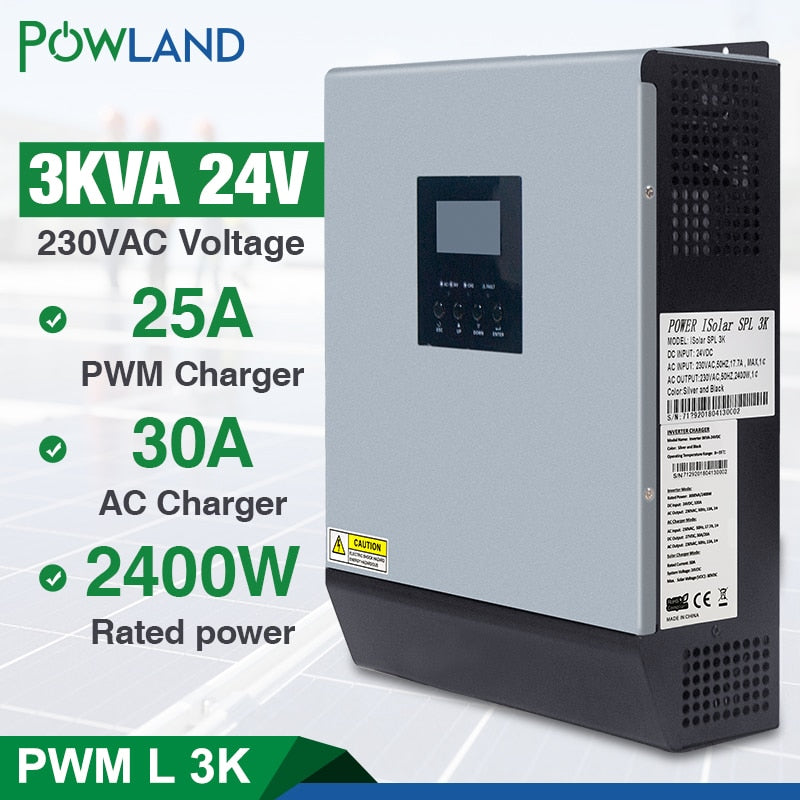

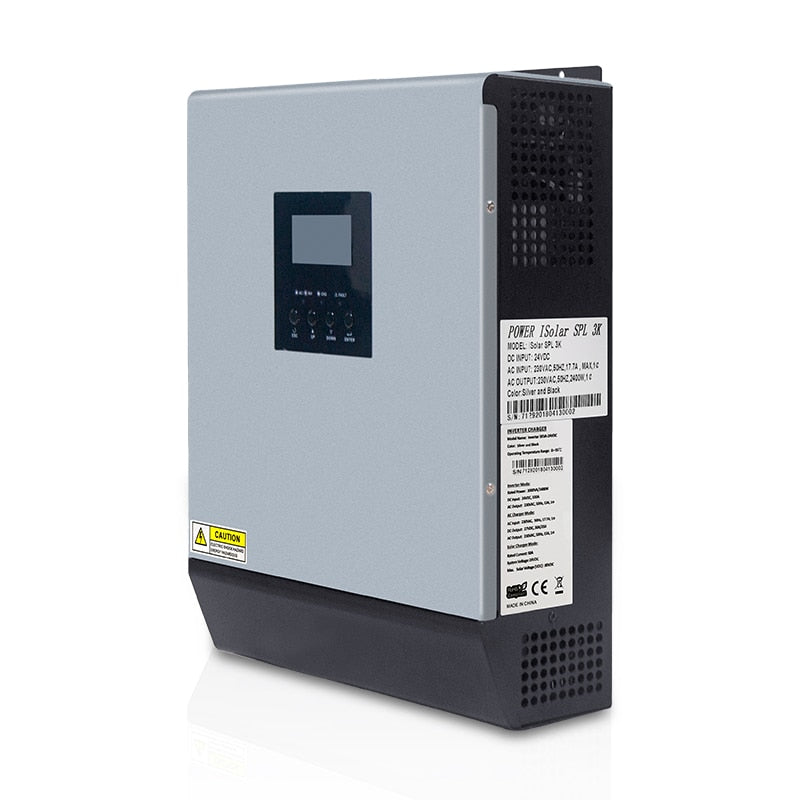

3000VA Solar Inverter 24vDC 220VAC Pure Sine Wave W/PWM Charge Controller

Save $303.55

Price:
$509.99 $813.54

Description

Please be informed that this inverter is not standard for USA use. Most homes use 240V split phase. This inverter is 220V single phase no center tap. If you use it in the USA please ensure it will suit your application.

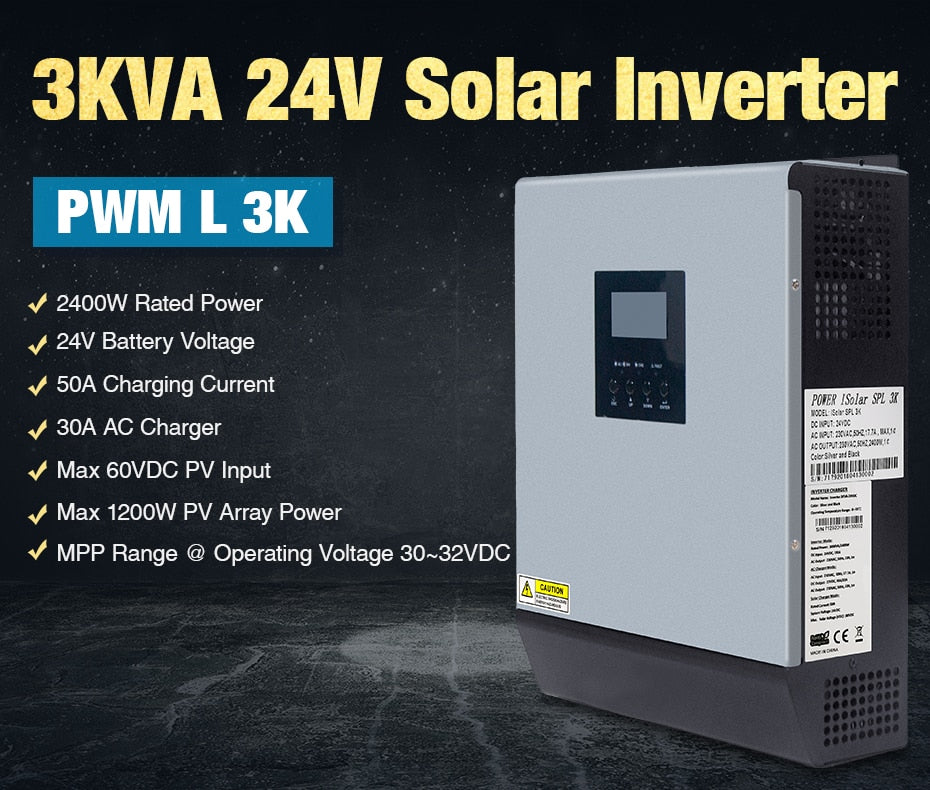

PWM L 3KVA 2400w 24Vdc Off Grid Solar Power Inverter PWM Solar Inverter with 50A PWM Solar Charger and 30A AC Charger

It is Pure Sine Wave Hybrid Solar Inverter Built-in PWM Solar Charge Controller for Home Use

This is multi-function inverter/charger ,combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications


Features:

  • Pure sine wave inverter

  • Built-in PWM solar charge controller

  • Configurable input voltage range for home appliances and personal computers via LCD setting

  • Configurable AC/Solar Charger priority via LCD setting

  • Configurable AC/Solar input priority via LCD setting

  • Compatible to mains voltage or generator power

  • Auto restart while AC is recovering

  • Overload/over temperature/ short circuit protection

  • Smart charging system optimizes battery performance

  • Cold start function

  • ​inversor solar

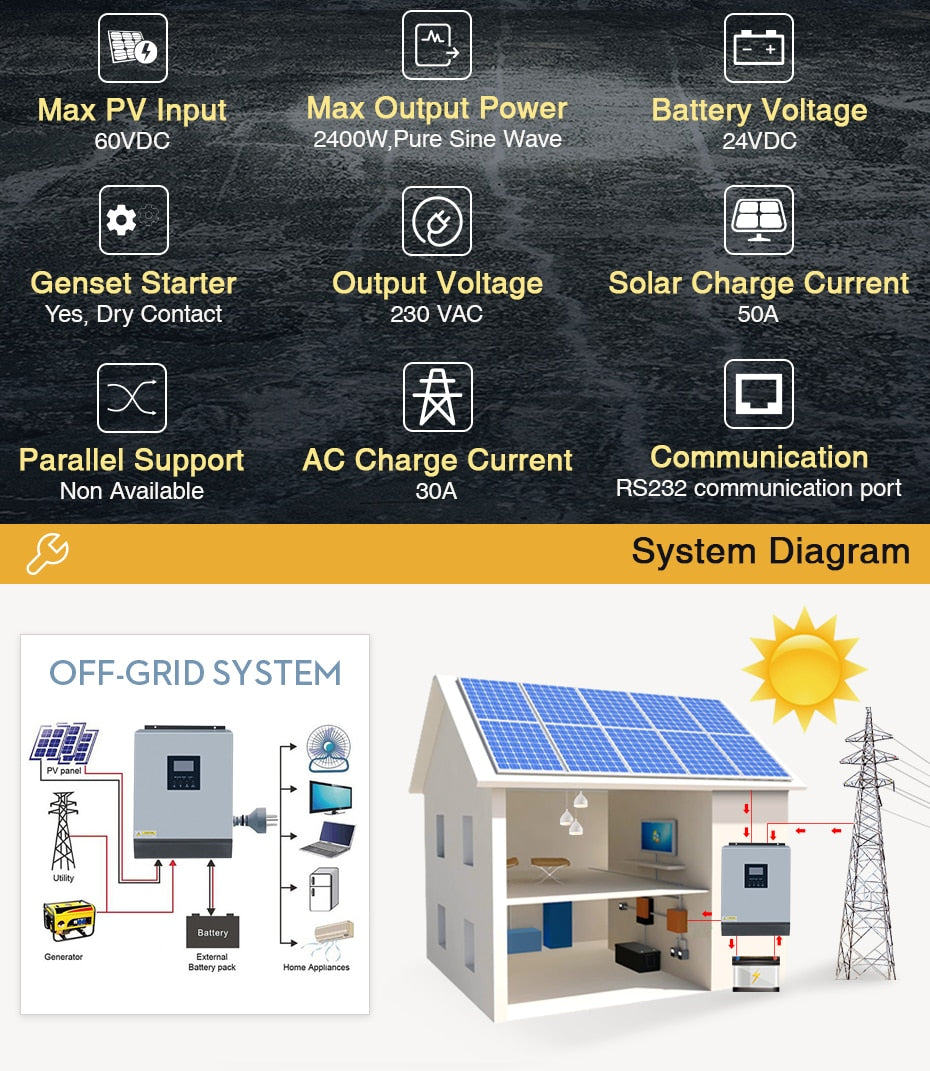

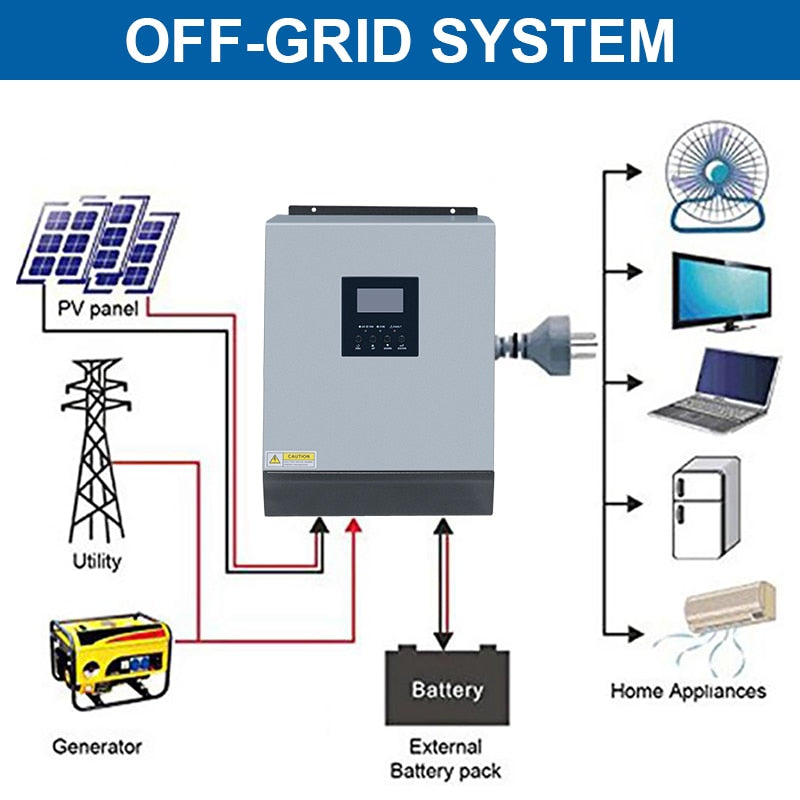

Basic System Architecture:

The following illustration  basic application for this inverter/charger .It also includes following devices to have a complete running system :

  • Generator or Utility
  • PV modules (Option)

Consult with your system integrator for other possible system architectures depending on your requirements .This inverter can power all kinds of appliances in home or office environment ,including motor-type appliances such as light ,fan,refrigerator and air conditioner




MODEL

PWM L 3K

Rated Power

3000VA/2400W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280 VAC(For Persongl Computers) ; 90-280 VAC(For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensig)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Sutge Power

6000VA

Efficiency(Peak)

93%

Transfer Time

10 ms (For Personal Computers) ; 20 ms (For home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

24 VDC

Floating Charge Voltage

27 VDC

Overcharge Protection

30 VDC

Maximum Charge Current

20A or 30A

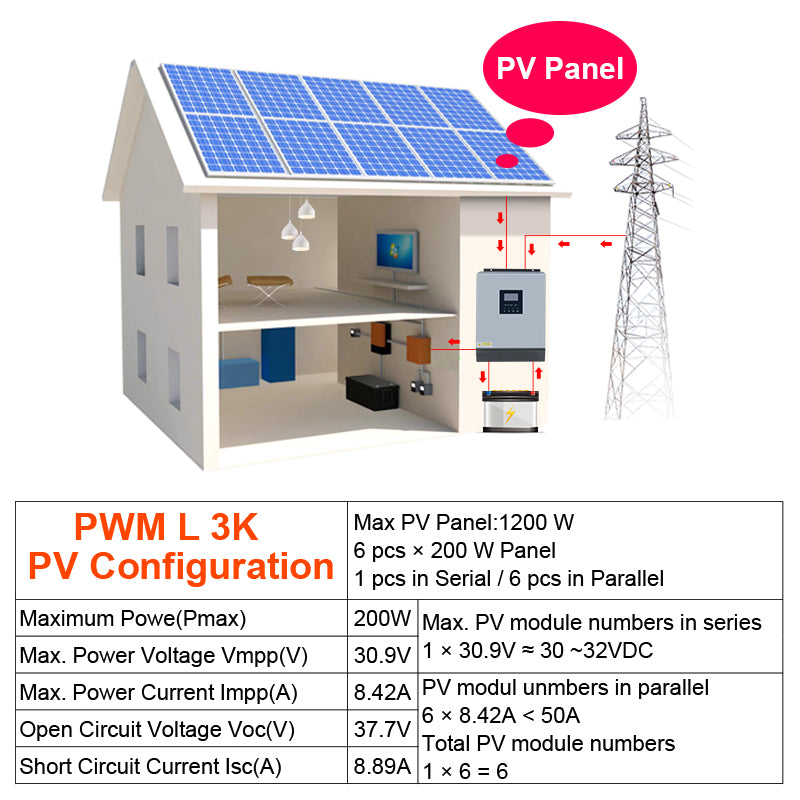

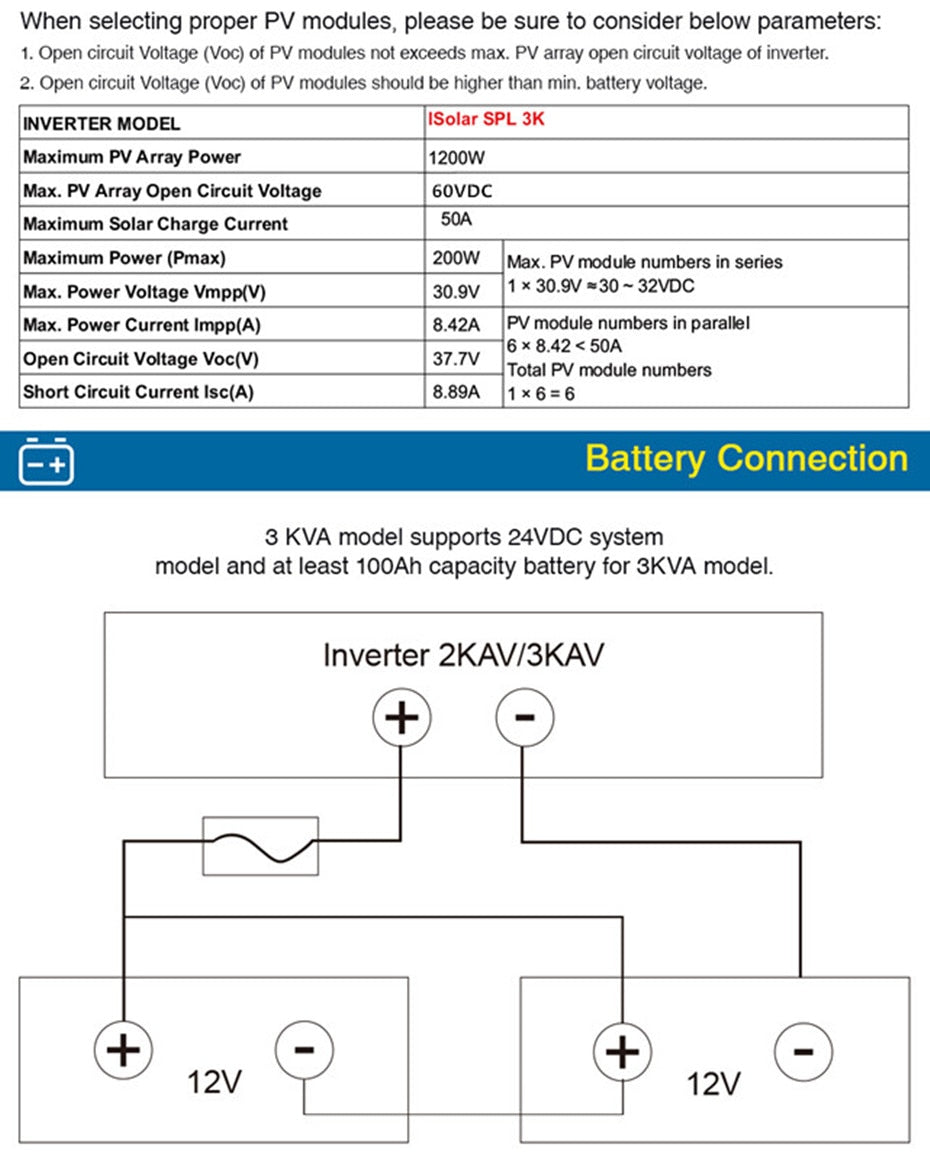

SOLAR CHARGER(OPTION)

Charging Current

50A

Maximum PV Array Power

1200W

Maximum PV Array Open

60 VDC

Standby Power Consumptio

2 W

PHYSICAL

Dimension,D×W×H (mm)

100×272×355

Net Weight(kgs)

6.9

OPERAFTING ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operatin Temperature

0℃-55℃

Storage Temperature

15℃-60℃
