Description

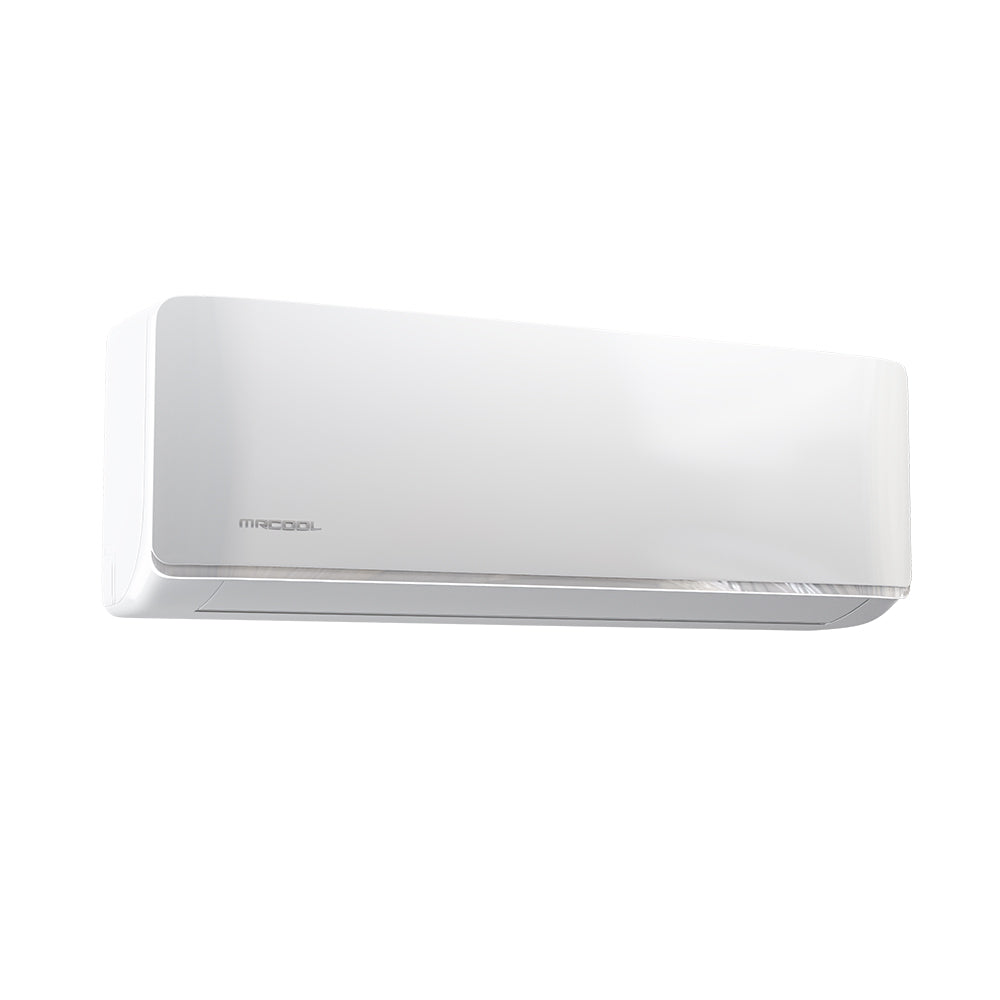

The MRCOOL� 4th Generation DIY �36K BTU Ductless Wall Mounted Air Handler is the highest capacity air handler in the DIY� series and has the ability to cover an area up to 1,500 sq. ft. Even with that level of performance, it can still deliver an impressive 18 SEER efficiency rating when connected to a MRCOOL� condenser. It also features multiple operating modes which include HEAT, COOL, AUTO, DRY (dehumidify), and SLEEP. To take the functionality even further, this unit can also be operated by your Apple or Android smartphone with use of our convenient Smart HVAC app. This air handler has a compact design which makes it easier to mount to most interior walls when using the included mounting plate. This air handler is also designed to be installed using MRCOOL�s� patented Pre-Charged Quick Connect� Line Set. The quick connectors allow the line set to be installed in a few simple steps with two wrenches. It comes precharged with R-410A refrigerant, so no vacuuming or charging of the system is required once installed. Let the MRCOOL� 4th Generation DIY� 36K BTU Ductless Wall Mounted Air Handler take care of the heating and cooling of your home.
Model: DIY-36-HP-WMAH-230C25
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 4th Gen Wall Mount Air Handler
- MODEL: DIY-36-HP-WMAH-230C25
- GTIN: 00810063868550
- UPC: 810063868550
- UNIT TYPE: Mini Split
- COOLING CAPACITY (BTU): 36000
- HEATING CAPACITY (BTU): 36000
- VOLTAGE (V): 208-230
- PHASE: 1
- CYCLE: 60
- MOUNT TYPE: Wall
- COLOR: White
- COLOR FAMILY: White
- MAX COVERAGE AREA: Up to 1500
- REFRIGERANT TYPE: R-410A
- DECIBEL RATING (DBA): 52/45/34
- DECIBEL RATING LOW (DBA): 34
- DECIBEL RATING HIGH (DBA): 52
- INVERTER: Yes
- MAX LINESET LENGTH (FT): 213.25
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- BLOWER MOTOR RPM: 1200/950/750
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- ENERGY STAR CERTIFIED: No
- AHRI CERTIFIED: Yes
- BASE WARRANTY: 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY: 5-year Parts
- BASE COMPRESSOR WARRANTY: 7-year Compressor
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU;PR;VI
- NET DEPTH (IN): 11.10
- NET HEIGHT (IN): 14.25
- NET WIDTH (IN): 49.57
- NET WEIGHT (LBS): 47.84
- GROSS DEPTH (IN): 21.26
- GROSS HEIGHT (IN): 19.69
- GROSS WIDTH (IN): 56.69
- GROSS WEIGHT (LBS): 78
- BROCHURE: Open
- SPECS: Open
