Description

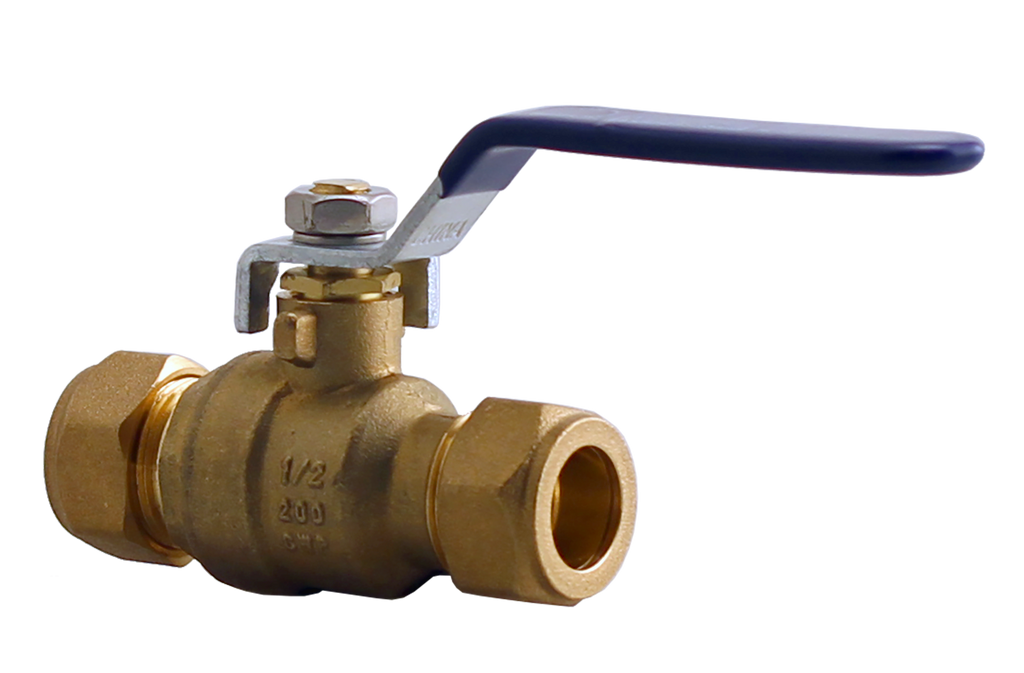

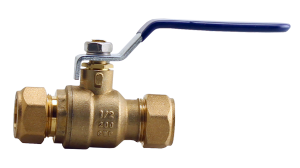

1/2" NL Full Port Comp Ball Valve No Drain 200 CWP
Part number: 082CPND-05NL
Sold as: Pack of 10
Estimated shipping: 14+ days
Category: Valves
UPC: 777808440764
Specifications
- Boshart Category Path: Master > Valves > Ball Valves > Brass > Brass Ball Valves
- Product Family: Brass Ball Valves
- Boshart Part Number: 082CPND-05NL
- Available In: 1/2"
- Carton Quantity: 10
- UPC: 777808440764
- Package Width: 2.99 in
- Package Height: 2.44 in
- Package Length: 5.31 in
- Package Weight: 0.56 lb
- Description: Note: Can be used to make connections between Copper, Brass, Aluminum, Plastic, CPVC & Pex tubing. Not recommended for use with steel tubing, designed for use with tube manufactured to CTS-OD tubing.
- Ball Material: Chrome Plated
- Port Size: 0.59 INCH in
- Size: 1/2"
- Handle Type: Rubber Grip
- Design: Full Port
- Seat Material: PTFE
- Connection Type: Comp
- Primary Material: Brass
- Temperature Range: Up to 300°F (149°C)
- Maximum Pressure Rating: 200 PSI CWP
- Stem Packing Material: PTFE
- Product Model Short Description: Brass Ball Valves
- Certifications: cUPC Standard IGC 157 No Lead NSF / ANSI 372 NSF / ANSI 61
