Description

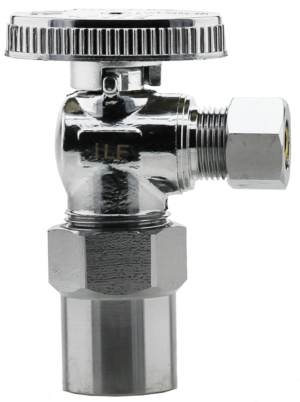

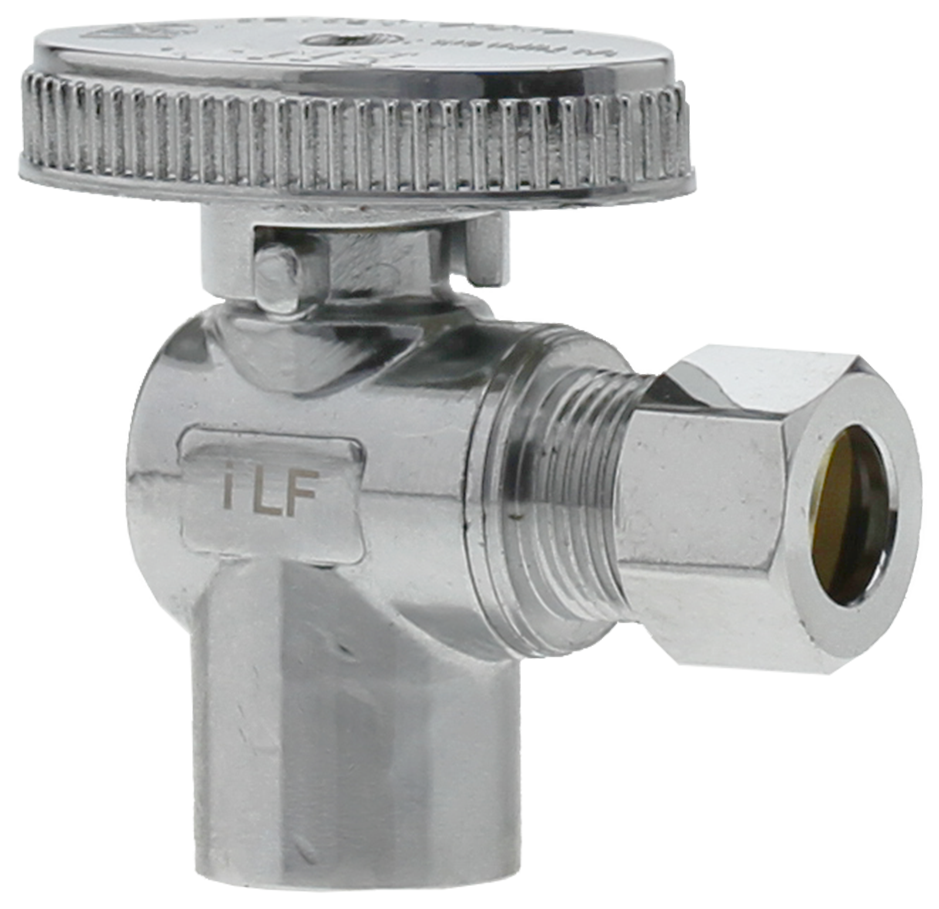

No Lead 1/2"Cpvc x 3/8"Comp 1/4 Turn, Angle Supply Valve
Part number: 08SVA-05VNL
Sold as: Pack of 20
Estimated shipping: 14+ days
Category: Valves
UPC: 777808402021
Specifications
- Product Family: Chrome Plated Supply Stops
- Boshart Part Number: 08SVA-05VNL
- Available In: CPVC x Compression
- Carton Quantity: 20
- UPC: 777808402021
- Package Width: 1 in
- Package Height: 2.9 in
- Package Length: 1.95 in
- Package Weight: 0.26 lb
- Size: 1/2" x 3/8"
- Design: Angled
- Seat Material: PTFE
- Connection Type: CPVC x Compression
- Inlet Connection: CPVC
- Primary Material: Chrome Plated
- Outlet Connection: Comp
- Temperature Range: Up to 180°F (82°C)
- Maximum Pressure Rating: 125 PSI
- Stem Packing Material: EPDM
- Product Model Short Description: Chrome Plated Supply Stops
- Certifications: ASTM D2846 CSA B125.1 Certified No Lead NSF / ANSI 372 NSF / ANSI 61 SAE J512
