Description

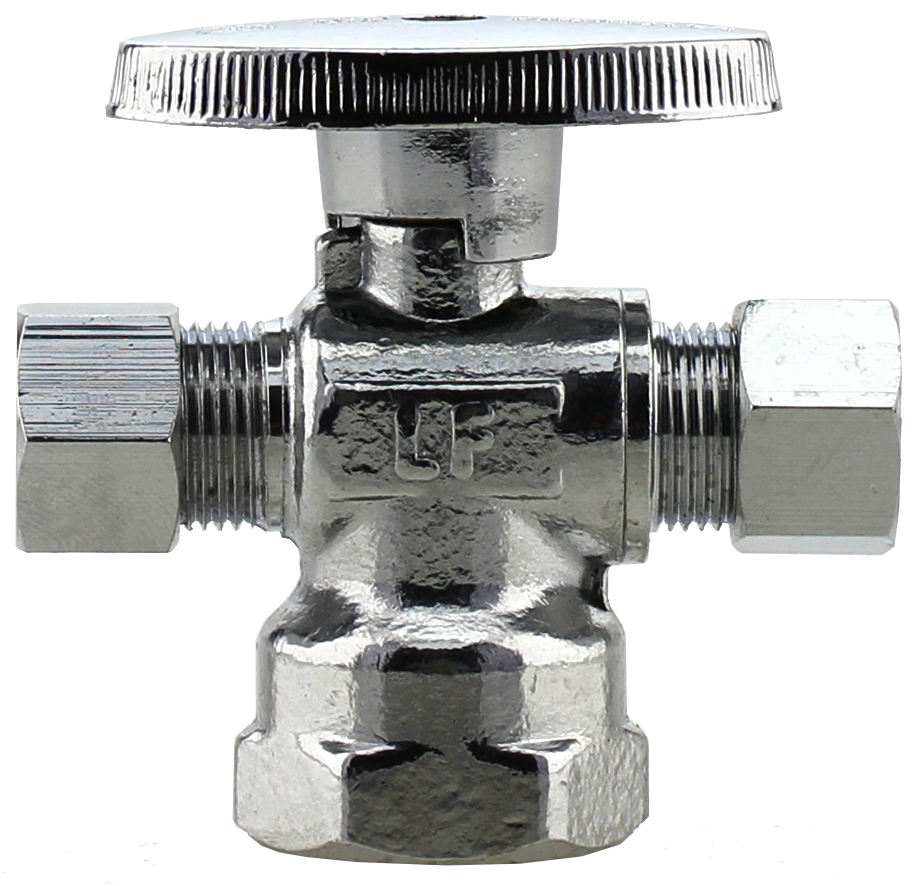

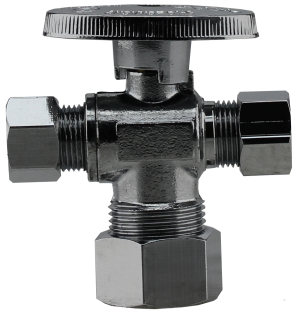

NO LD 5/8"CPx3/8" x 3/8"CP -DUAL OUTLET, ANGLE SUPPLY VALVE
Part number: 08SVD-58CP03CPNL
Sold as: Pack of 20
Estimated shipping: 14+ days
Category: Valves
UPC: 777808453474
Specifications
- Product Family: Chrome Plated Supply Stops
- Boshart Part Number: 08SVD-58CP03CPNL
- Available In: Comp
- Carton Quantity: 20
- UPC: 777808453474
- Package Width: 2.45 in
- Package Height: 1 in
- Package Length: 2.3 in
- Package Weight: 0.31 lb
- Size: 5/8" x 3/8" x 3/8"
- Design: Dual Outlet
- Seat Material: PTFE
- Connection Type: Comp
- Inlet Connection: Compression
- Primary Material: Chrome Plated
- Outlet Connection: Comp
- Temperature Range: Up to 180°F (82°C)
- Maximum Pressure Rating: 125 PSI
- Stem Packing Material: EPDM
- Product Model Short Description: Chrome Plated Supply Stops
- Certifications: CSA B125.1 Certified No Lead NSF / ANSI 372 NSF / ANSI 61 SAE J512
