Description

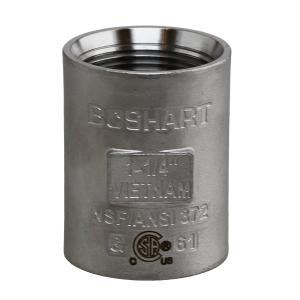

1-1/4" FPT Heavy Duty 304 S.S. Drop Pipe Coupling
Part number: 28-SSDPC-12
Sold as: Pack of 10
Estimated shipping: 14+ days
Category: Water Well Accessories
UPC: 777808369140
Specifications
- Product Family: Heavy Duty 304 Stainless Steel
- Boshart Part Number: 28-SSDPC-12
- Available In: 1-1/4"
- Carton Quantity: 10
- UPC: 777808369140
- Package Width: 1.9 in
- Package Height: 1.95 in
- Package Length: 2.5 in
- Package Weight: 0.77 lb
- Description: These couplings have an inside chamfer on both ends for trouble free starting of threads. They have a separate taper to ensure a proper watertight seal and flats on the sides for ease of use with a wrench. Note: All tensile testing results consistently conclude in joint failure due to the elongation of the male threads on the drop/riser pipe. It is therefore recommended that the installer acquire the male pipe thread load capacity data of the drop/riser pipe from the pipe manufacturer. The loads must not exceed either the coupling or drop/riser pipe load capacity, see Tech Sheet for specific maximum weight holding capacity. The maximum load bearing weight of the pipe will vary significantly depending on the pipe material. This data is only a guide. The final responsibility for the design of the well lies with the well designer/installer.
- Size: 1-1/4"
- Pipe Length: 2-1/2"
- Fitting Type: Coupling
- Design: Heavy Duty
- Primary Material: 304 Stainless Steel
- Product Model Short Description: Drop Pipe Couplings
- Certifications: No Lead NSF / ANSI 372 NSF / ANSI 61
