Description
Sensor Normally Closed -10'
Part number: FSC05NC-10
Sold as: Pack of 24
Estimated shipping: 14+ days
Category: Switches
UPC: 777808519781
Specifications
- Product Family: Normally Closed Sensor Switch
- Boshart Part Number: FSC05NC-10
- Available In: 10.00
- Carton Quantity: 1
- UPC: 777808519781
- Package Width: 9.35 in
- Package Height: 3.6 in
- Package Length: 9.35 in
- Package Weight: 1.47 lb

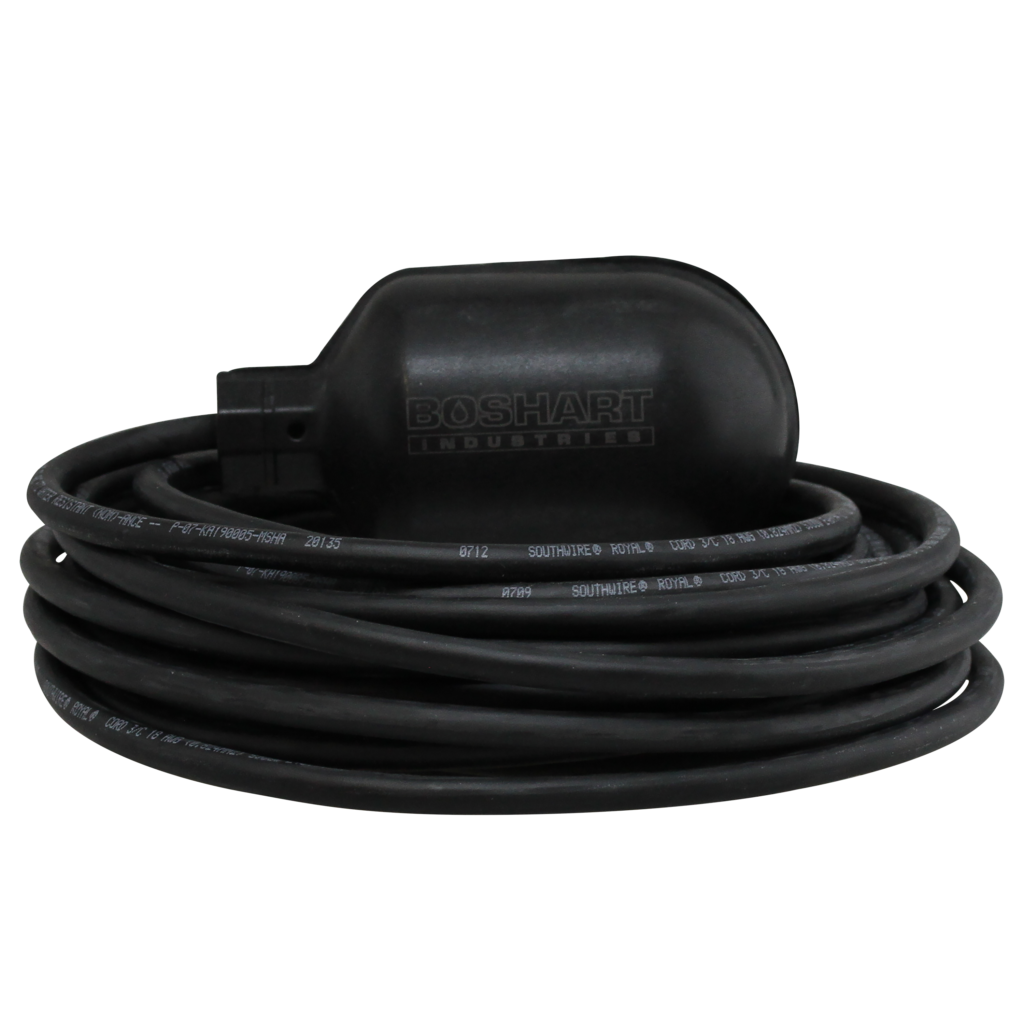

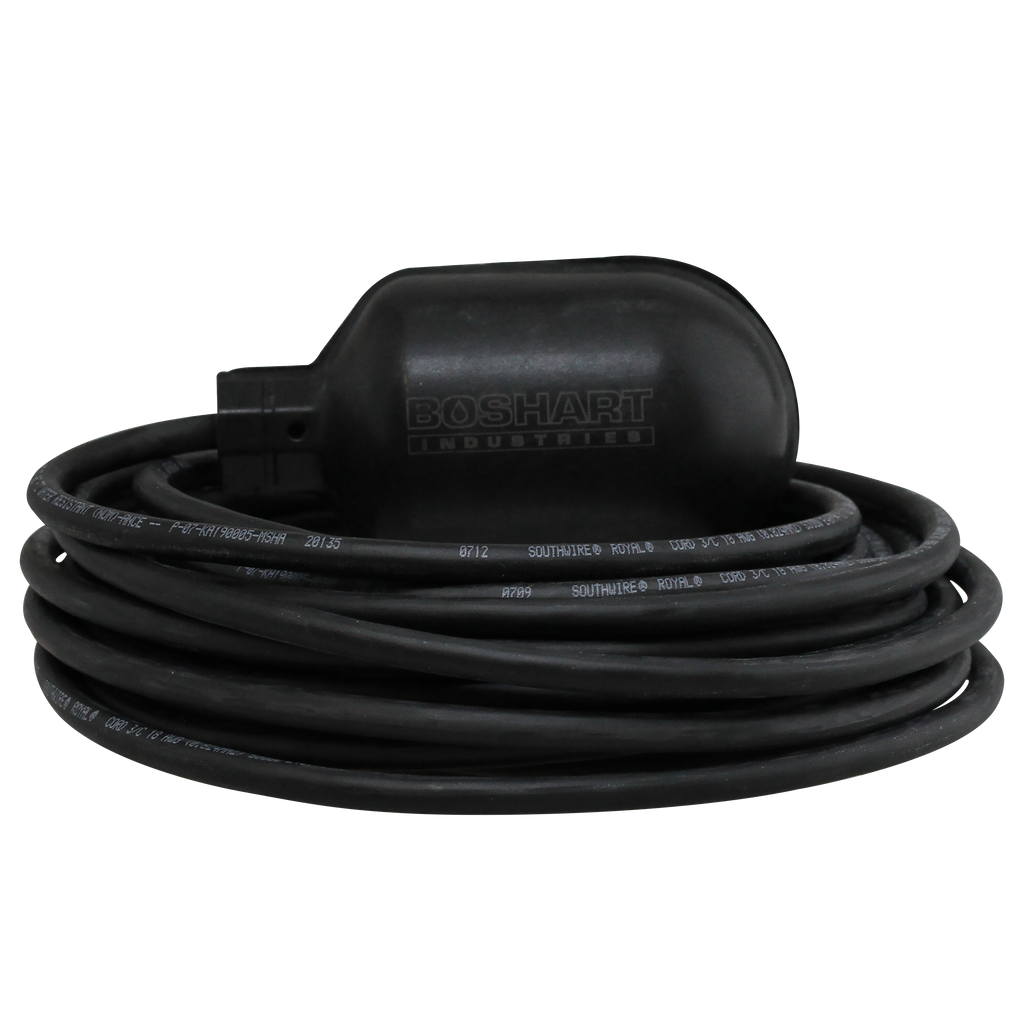

- Description: Boshart FSC05NC Control (Sensor) Switches are used to send signals to a control panel for the activation of pumps and alarms. Normally Closed (Pump Up) - Contacts are closed while the switch is hanging down and will open on a rising liquid level. Typically used for low level alarms and filling tank applications. These control switches are narrow 20° angle, mechanically operated, and the contacts are opened / closed by a microswitch which is activated by a ball inside the float housing. All switches are supplied with two bare wire leads for wiring into panel terminals in several cable lengths. Suitable for applications up to 5 Amps, with fluid temperatures up to 140° F (60°C).
- Cord Length: 10.00 FEET ft
- Design: Normally Closed Sensor Switch
- Voltage: 120/240 VAC
- Temperature Range: 0°F to 140°F (-18°C to 60°C)
- Single Phase Electrical Rating: 120V / 240V - 5 amps
- Product Model Short Description: Control Sensor Switches
- Certifications: CSA C22.2 No. 14
