Description
Sensor Swit Open Or Closed-30'
Part number: FSC05NOC-30
Sold as: Pack of 12
Estimated shipping: 14+ days
Category: Switches
UPC: 777808519873
Specifications
- Product Family: Open or Closed Sensor Switch
- Boshart Part Number: FSC05NOC-30
- Available In: 30.00
- Carton Quantity: 12
- UPC: 777808519873
- Package Width: 9.35 in
- Package Height: 3.6 in
- Package Length: 9.3 in
- Package Weight: 2.63 lb

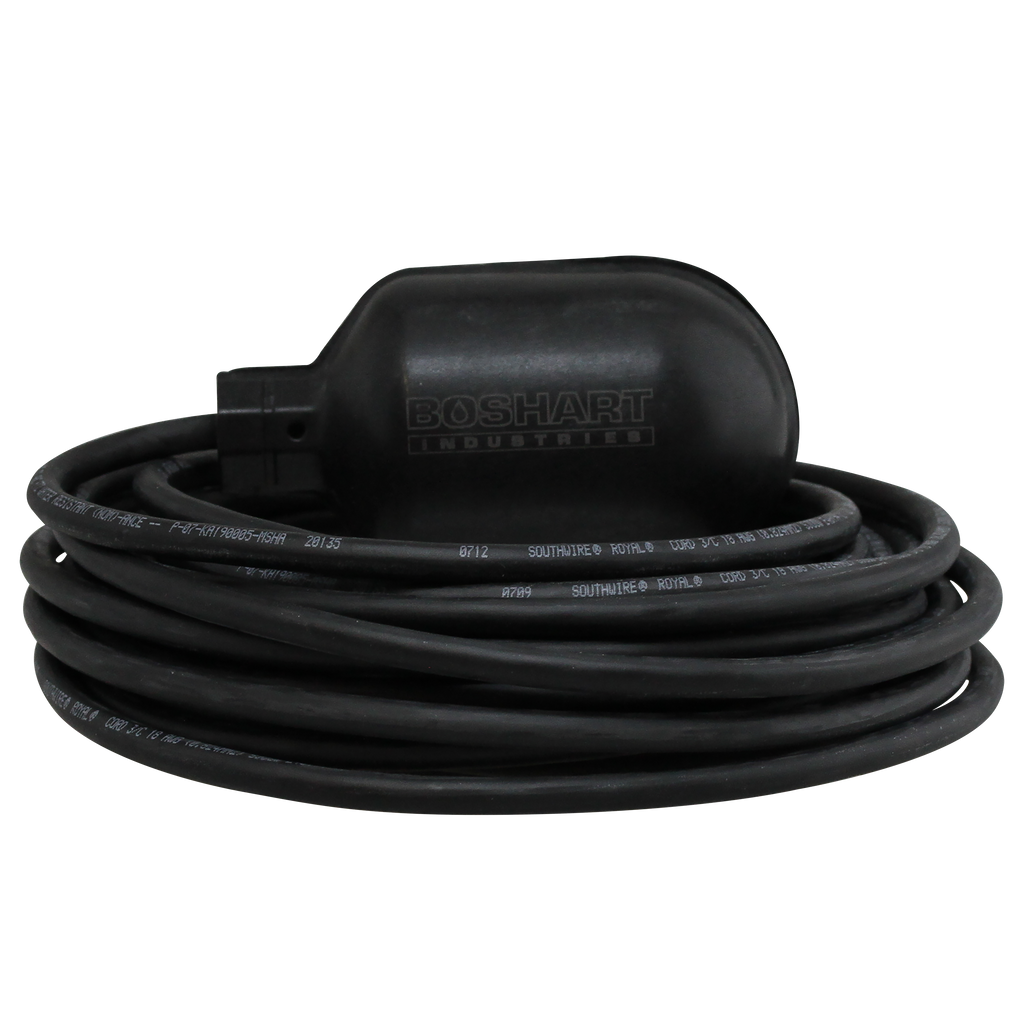

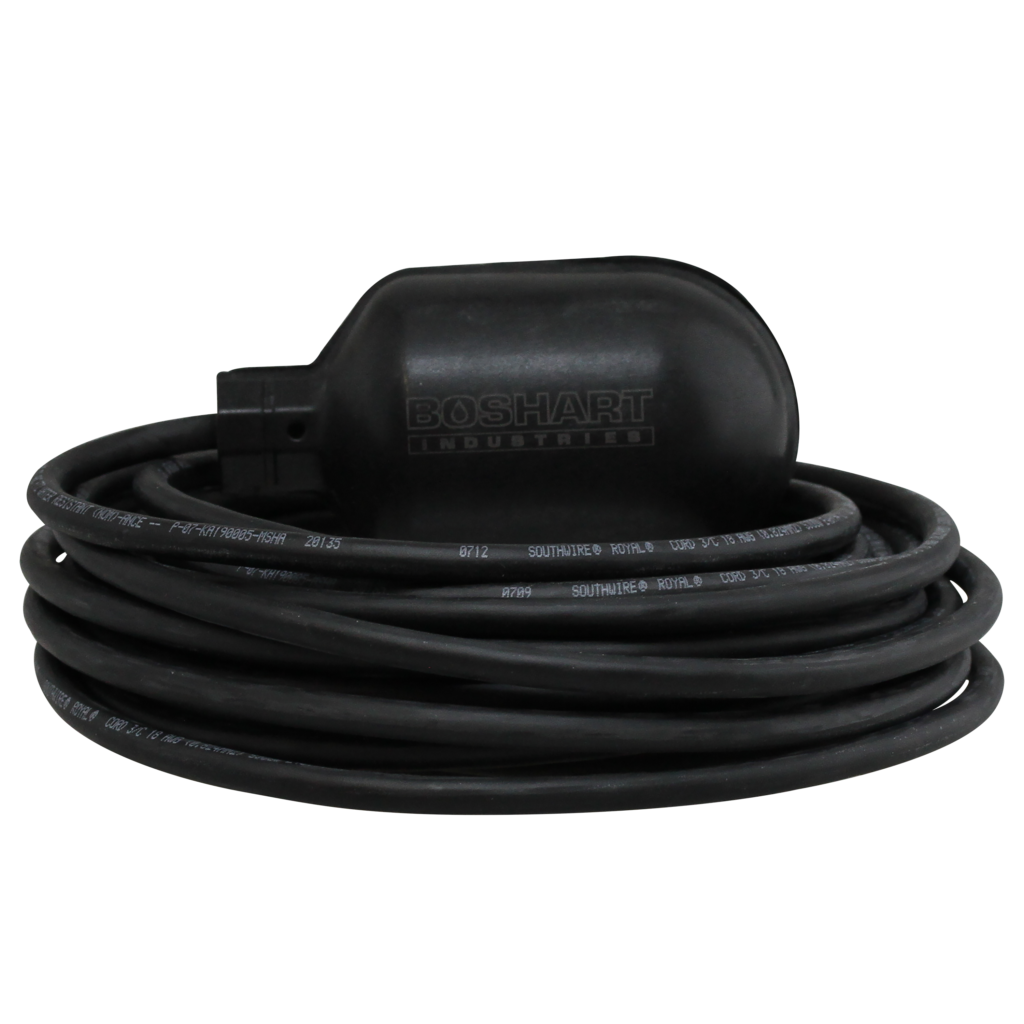

- Description: Boshart FSC05NOC Control (Sensor) Switches are used to send signals to a control panel for the activation of pumps and alarms. They can be wired to be either Normally Open (Pump Down) or Normally Closed (Pump Up). When used as a normally open switch, connect to the panel with the black and white wires or when used as a normally closed switch, connect to the panel with the red and white wires. These control switches are narrow 20° angle, mechanically operated, and the contacts are opened / closed by a microswitch which is activated by a ball inside the float housing. All switches are supplied with three bare wire leads for wiring into panel terminals in several cable lengths. Suitable for applications up to 5 Amps, with fluid temperatures up to 140° F (60°C).
- Cord Length: 30.00 FEET ft
- Design: Open or Closed Sensor Switch
- Voltage: 120/240 VAC
- Temperature Range: 0°F to 140°F (-18°C to 60°C)
- Single Phase Electrical Rating: 120V / 240V - 5 amps
- Product Model Short Description: Control Sensor Switches
- Certifications: CSA C22.2 No. 14
