BuildBlockSKU: 00-BH-JHB312
filler

Need bulk pricing or help matching parts?

Tell us the quantity, job timing, and delivery ZIP. We can help with bulk pricing, substitutions, and shipping options.

Email quoteOpen quote formCall 623-500-2867
Purchase quantity: Box of 10
Price:
$3,179.75

Shipping calculated at checkout

Stock:
In stock

Description

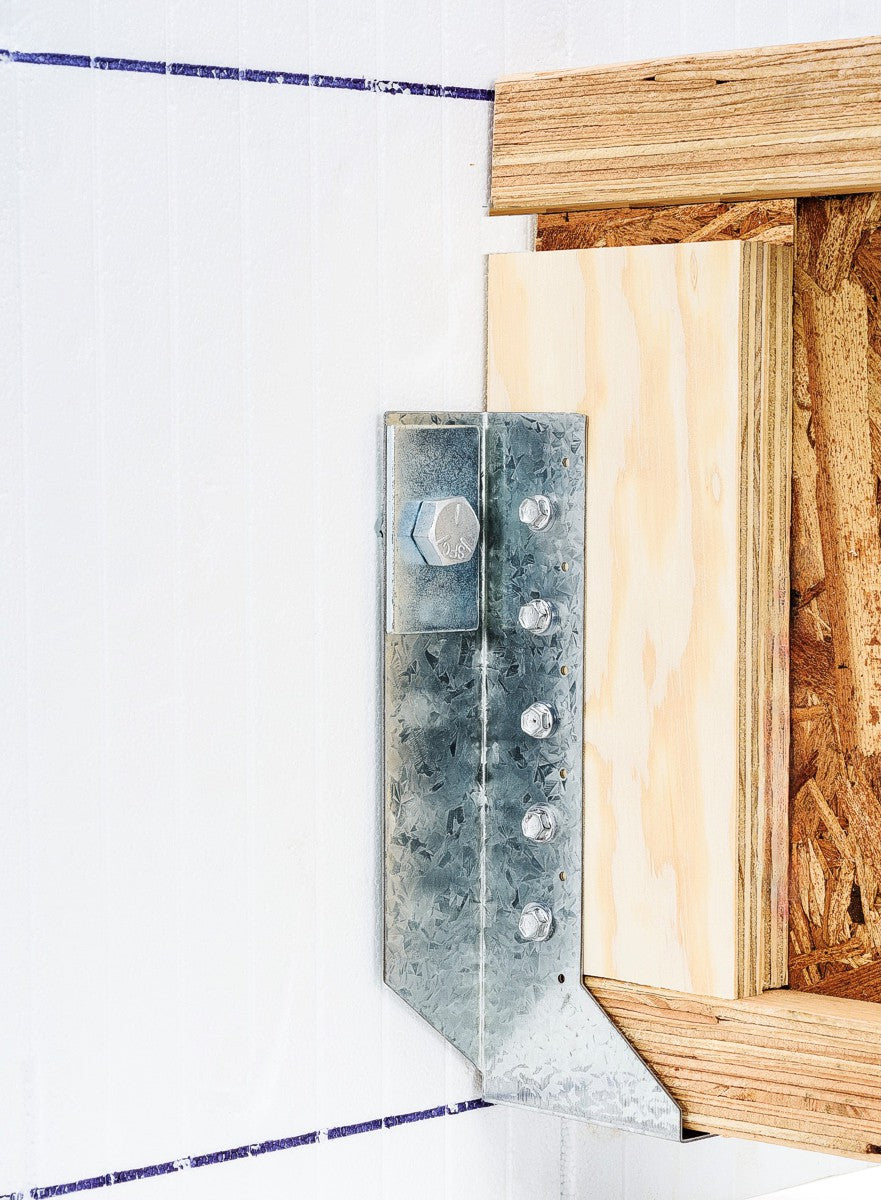

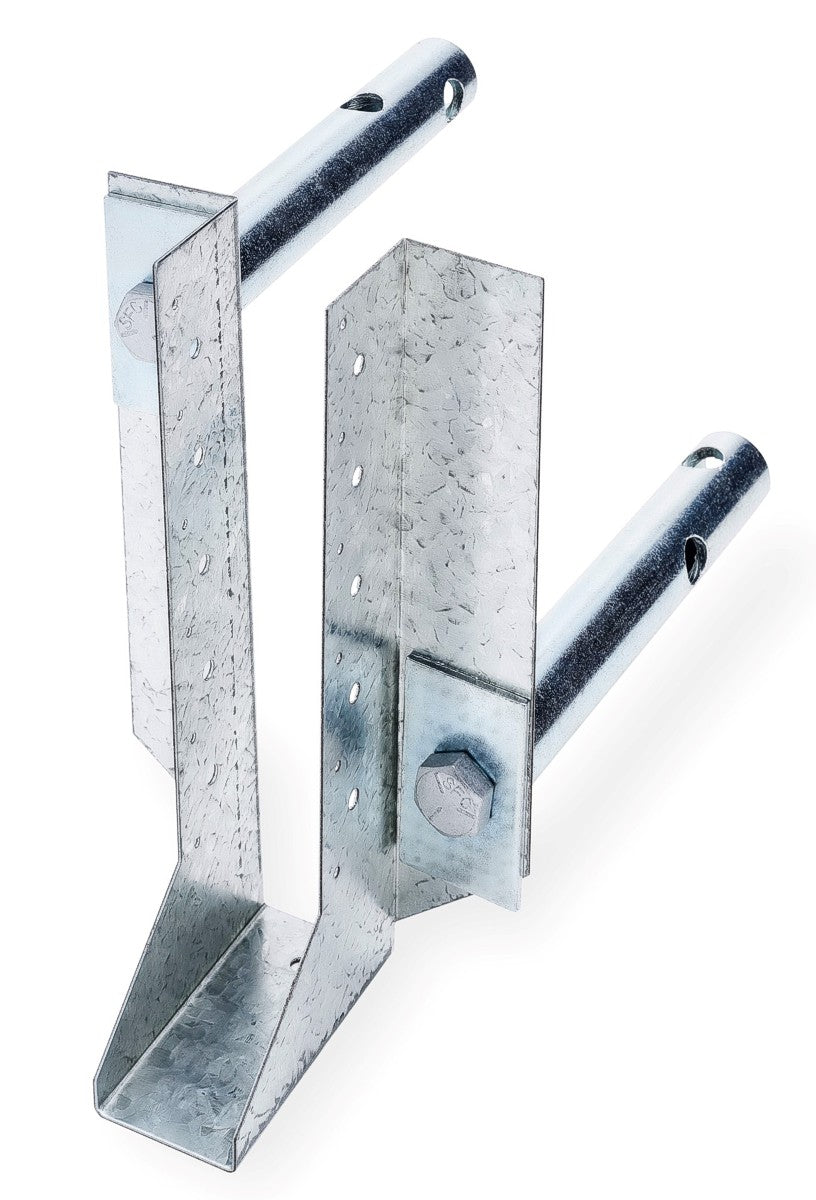

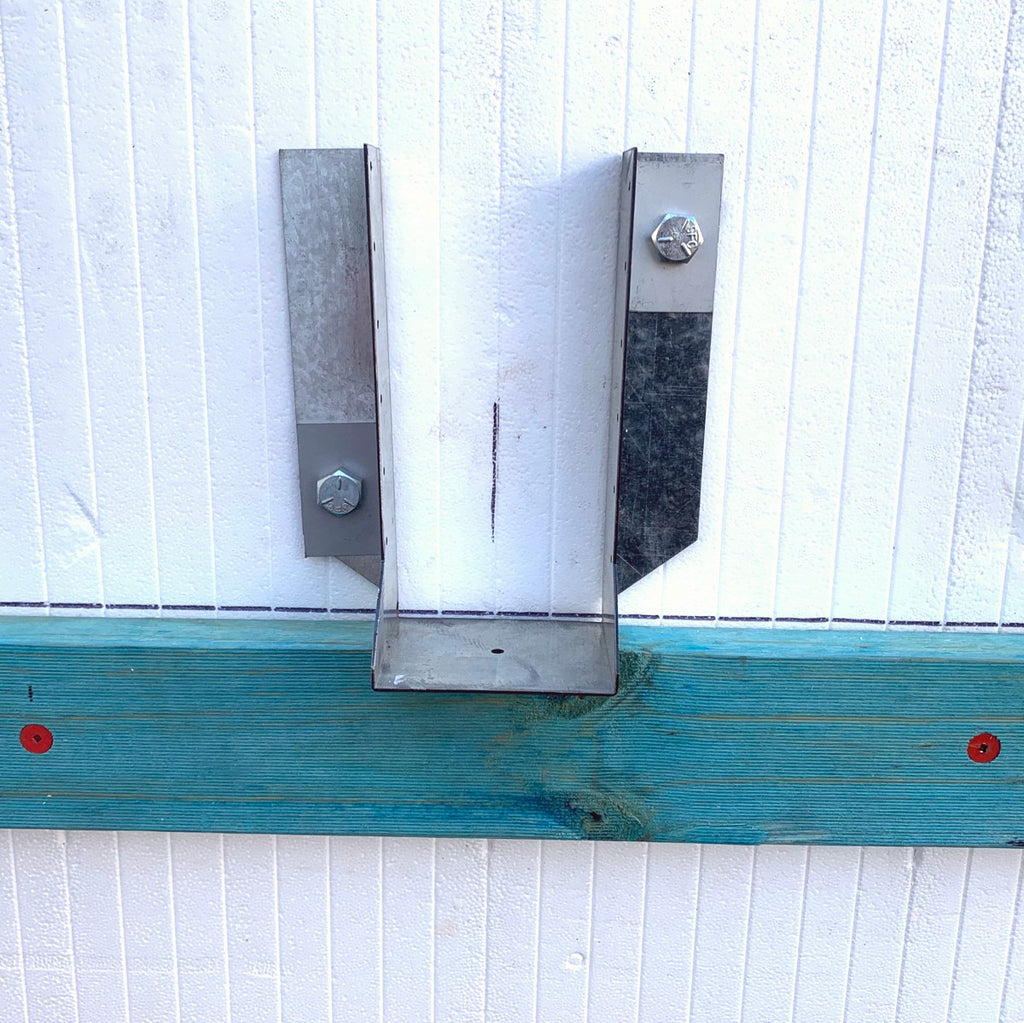

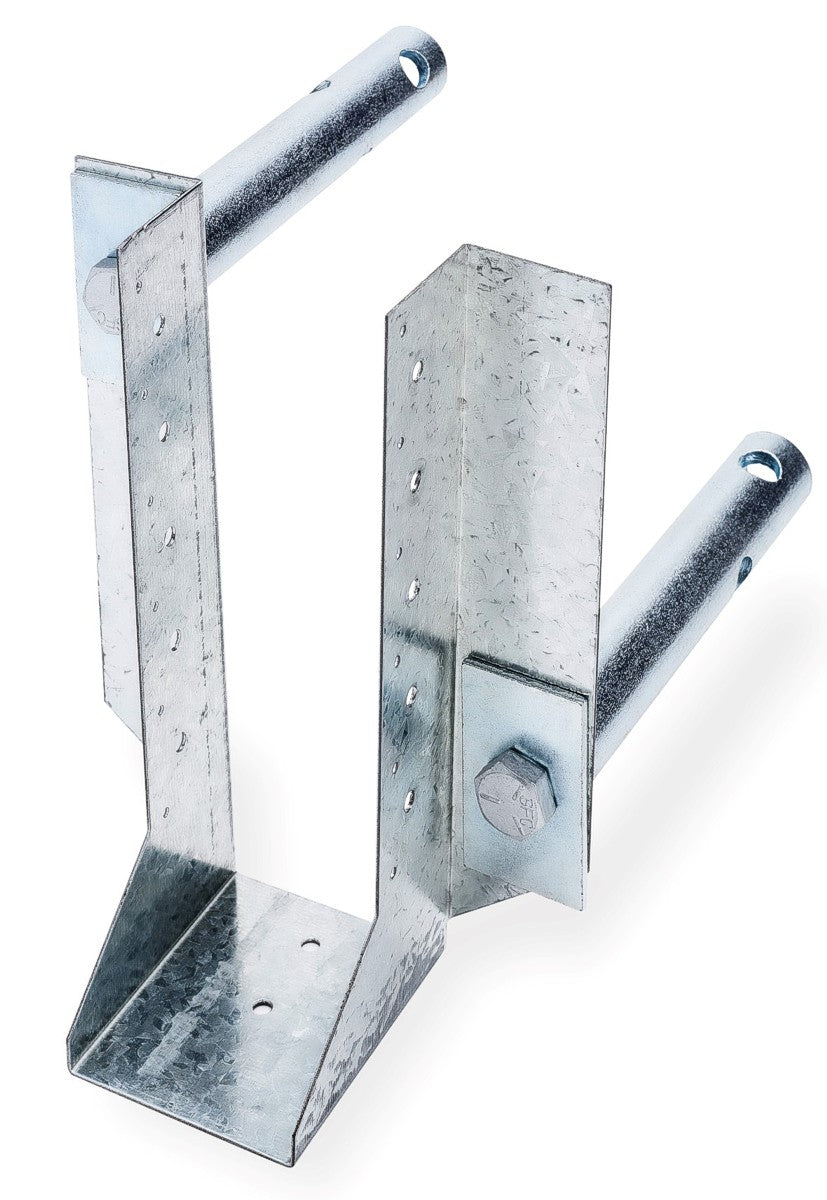

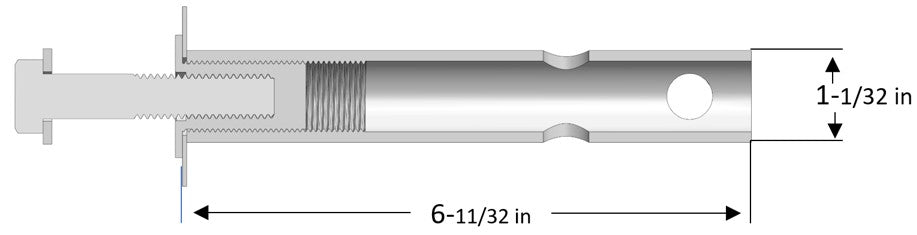

Description Burmon’s ICF Joist Hanger utilizes the Burmon ICF Connector System, a revolutionary double threaded cylinder bolt assembly that connects and anchors wood ledger brackets, wood and steel ledgers, joist hangers, I- joists, beams and trusses to insulated concrete forms (ICF) walls. The cylinder bolt assembly is engineered with high capacity sheer points, which more efficiently absorbs the energy of the unsupported load transfer span, between the polystyrene inner and outer ICF wall. The embedded legs of the cylinder tube have openings to receive concrete and rebar (optional) and the high capacity bolts connect directly to the concrete within the ICF wall, enhancing strength, stiffness of connection, function and durability. US Patent Application 17/120,457. Features: No Wood Ledger Required Fast and Easy to Use High Capacity and Cose-Effective Spade Drill Bit Supplied Joist Hangers, Bolts, and Washers Supplied Engineered for ICF Construction Available in 1½, 2½ and 3½Widths Fits Tightly in an ICF Wall During Concrete Pour

BuildBlock item: 00-BH-JHB312

Unit price: $317.97 per CASE

Sold as: Box of 10. The storefront price is for the full box, not one individual unit.

Shipping: Freight item. Estimated shipping timeframe is 2-6 weeks.

Specifications

  • Item: 00-BH-JHB312
