Description

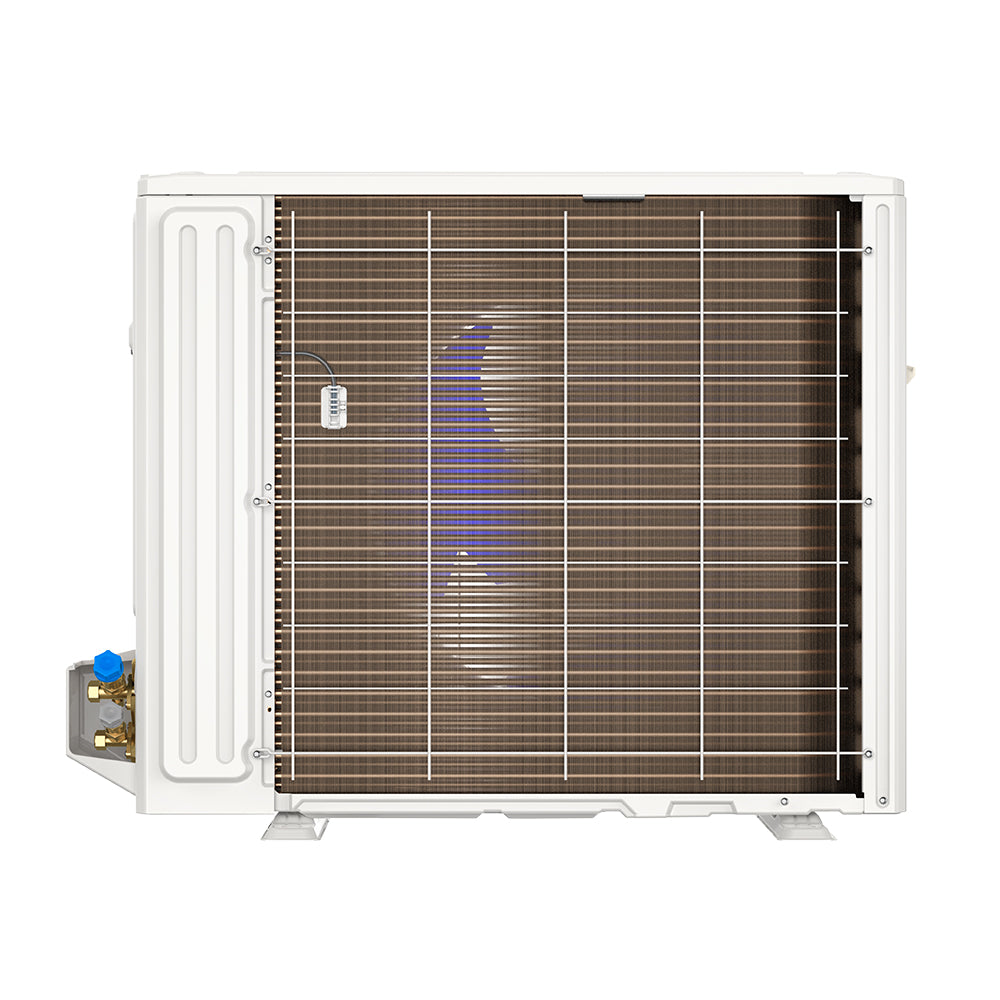

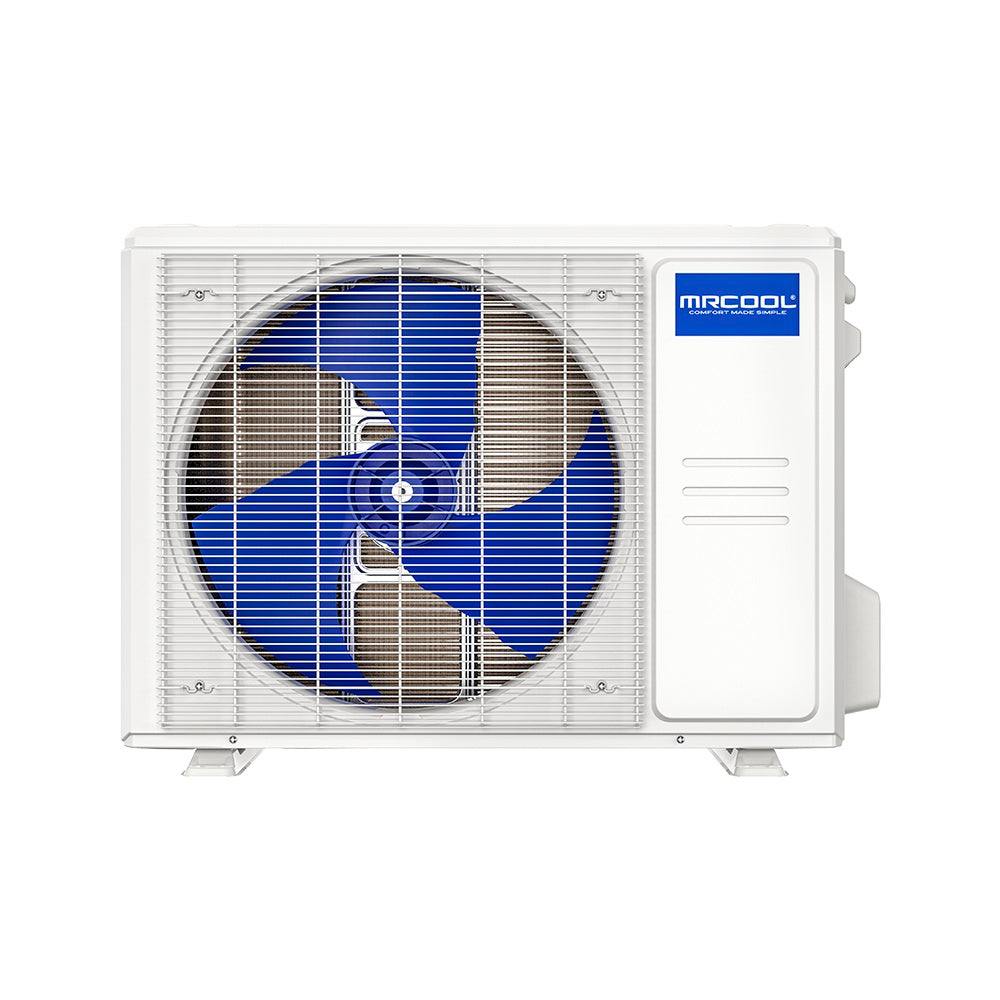

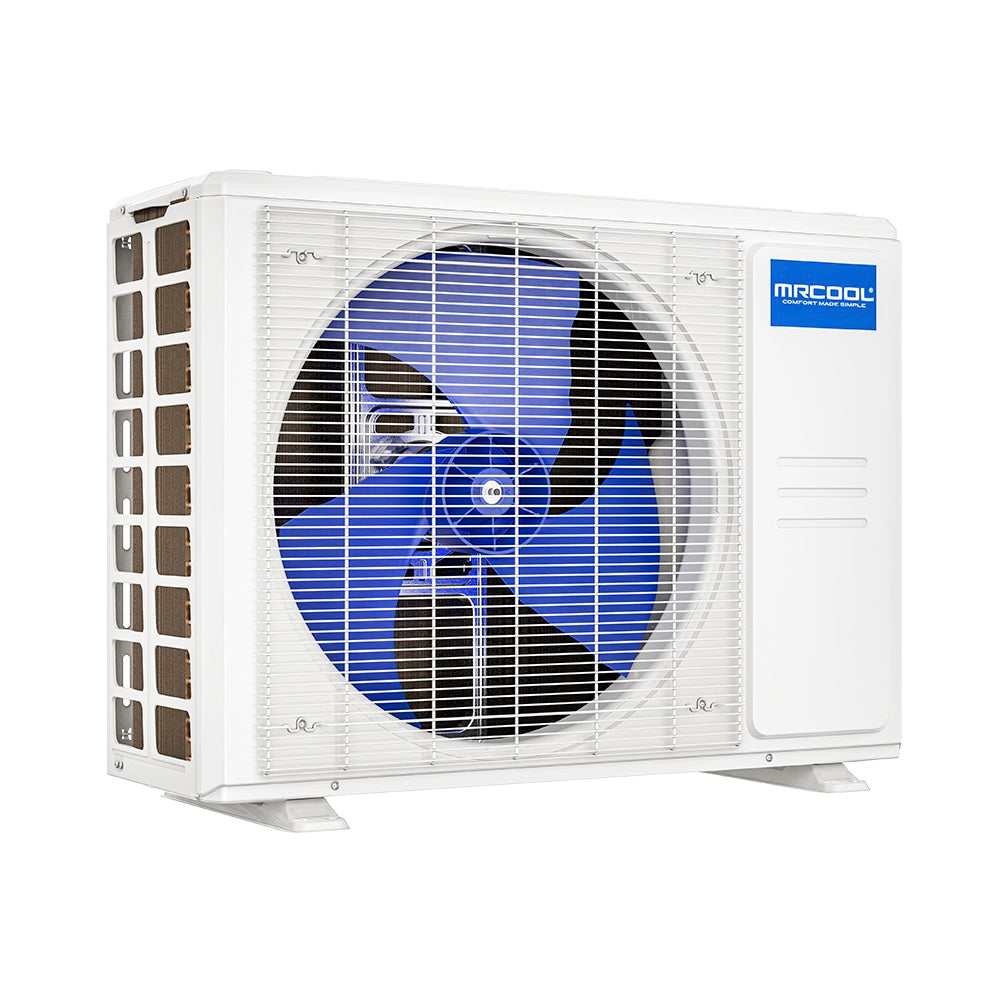

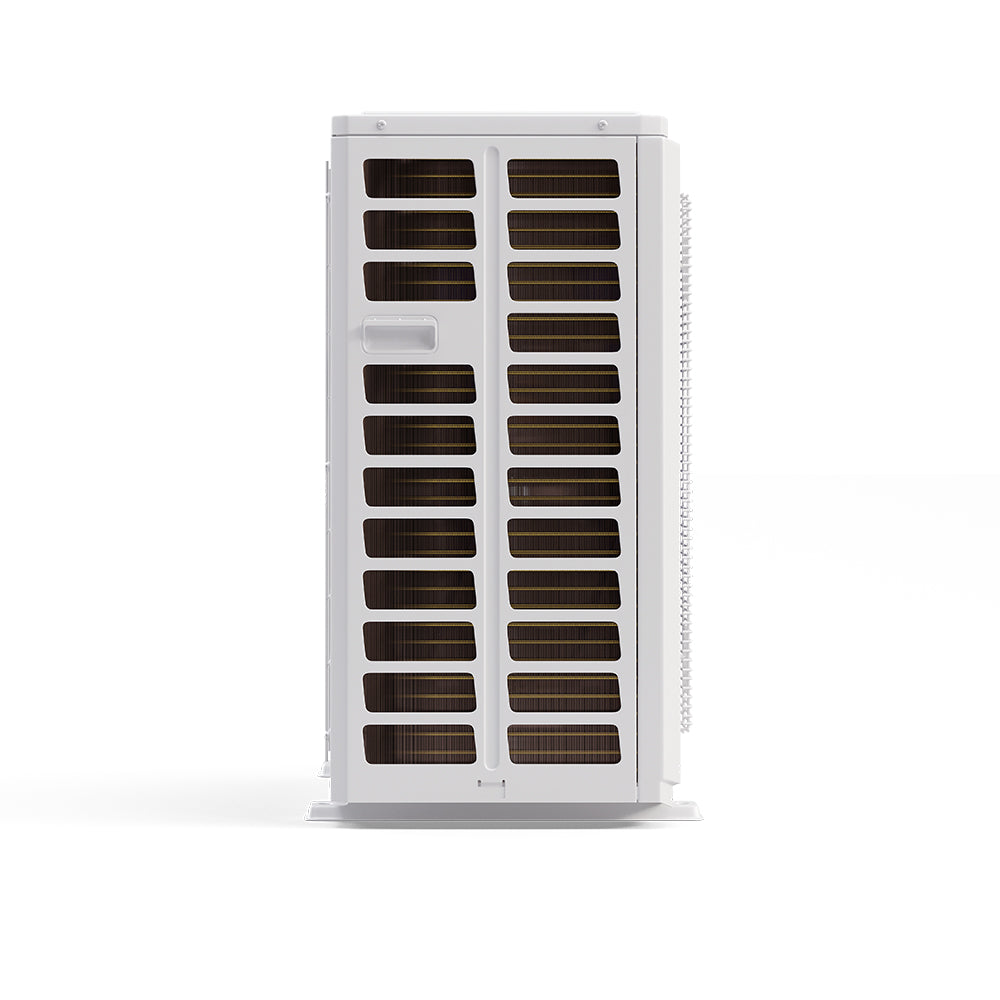

Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL� DIY� 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser is designed for exactly that. With no special tools or experience required, this system can heat or cool spaces up to 350 sq. ft.
The pre-charged 25-foot Quick Connect� line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the demand for vacuuming.
You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. Additionally, with the Follow Me� feature, the system tracks the temperature near your remote, helping maintain your ideal comfort level. For coastal homes, the Gold Fin� condenser coating provides superior corrosion resistance, ensuring long-lasting performance.
This system offers multiple modes and features to enhance comfort and efficiency. Using your wireless remote, you can access the Timer function that helps reduce energy use and the Auto mode, which maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings. Once the unit is installed, you can take advantage of many additional features designed to enhance your comfort and efficiency.
Backed by an industry-leading warranty, this system offers a base warranty that includes 7-year compressor/5-year parts coverage, along with eligibility for the MRCOOL� Care Program. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.
Model: DIY-09-HP-C-115D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Single-Zone Mini-splits
- MODEL: DIY-09-HP-C-115D25-O
- GTIN: 00840255586948
- UPC: 840255586948
- SEER2: 23.6
- EER2: 14
- HSPF2-4: 11.5
- HSPF2-5: 8.6
- TONNAGE: 0.75
- COOLING CAPACITY (BTU): 9000
- HEATING CAPACITY (BTU): 10000
- VOLTAGE (V): 115
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 20
- MIN CIRCUIT AMPACITY (A): 18
- COLOR: White
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 30.34
- DECIBEL RATING (DBA): 54
- INVERTER: DC
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 82
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 3/8
- COMPRESSOR MOTOR TYPE: Rotary
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 11.93
- NET HEIGHT (IN): 21.85
- NET WIDTH (IN): 30.12
- NET WEIGHT (LBS): 65.48
- GROSS DEPTH (IN): 16.54
- GROSS HEIGHT (IN): 27.56
- GROSS WIDTH (IN): 36.22
- GROSS WEIGHT (LBS): 83.11
- BROCHURE: Open
- SPECS: Open
