Description

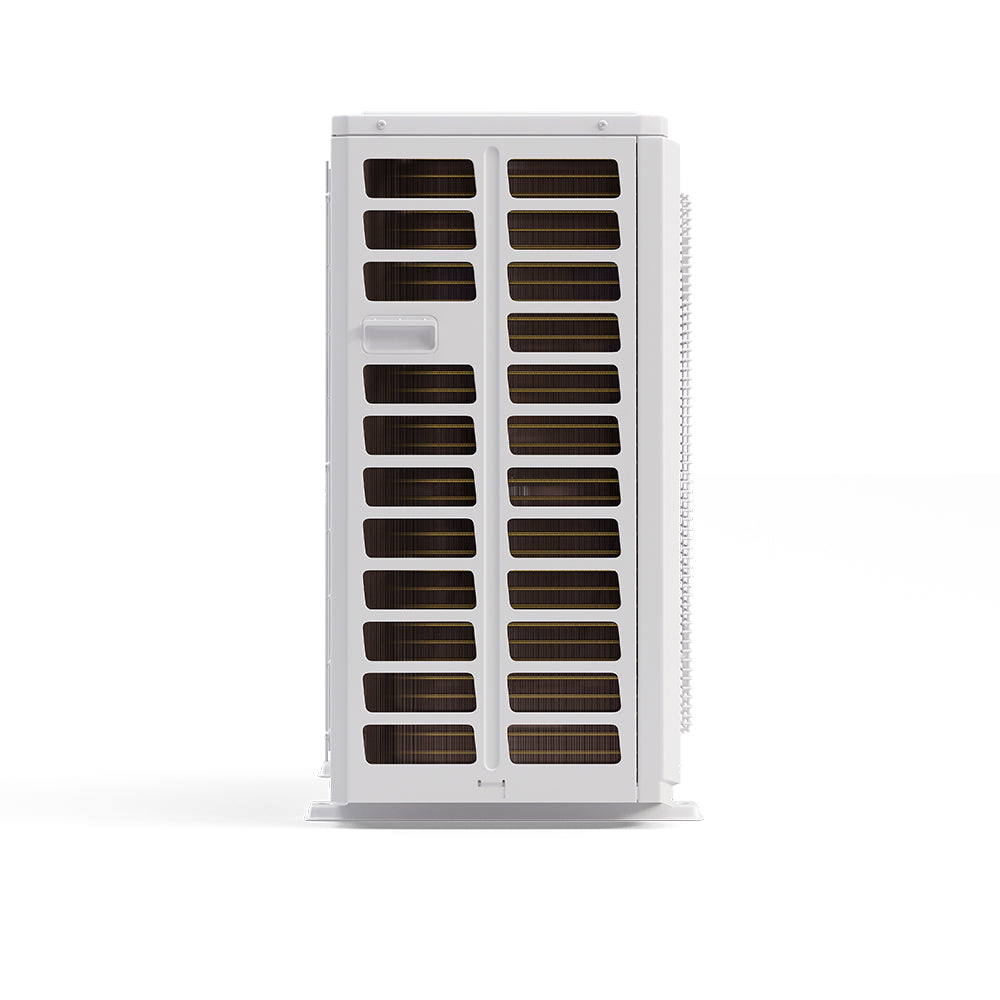

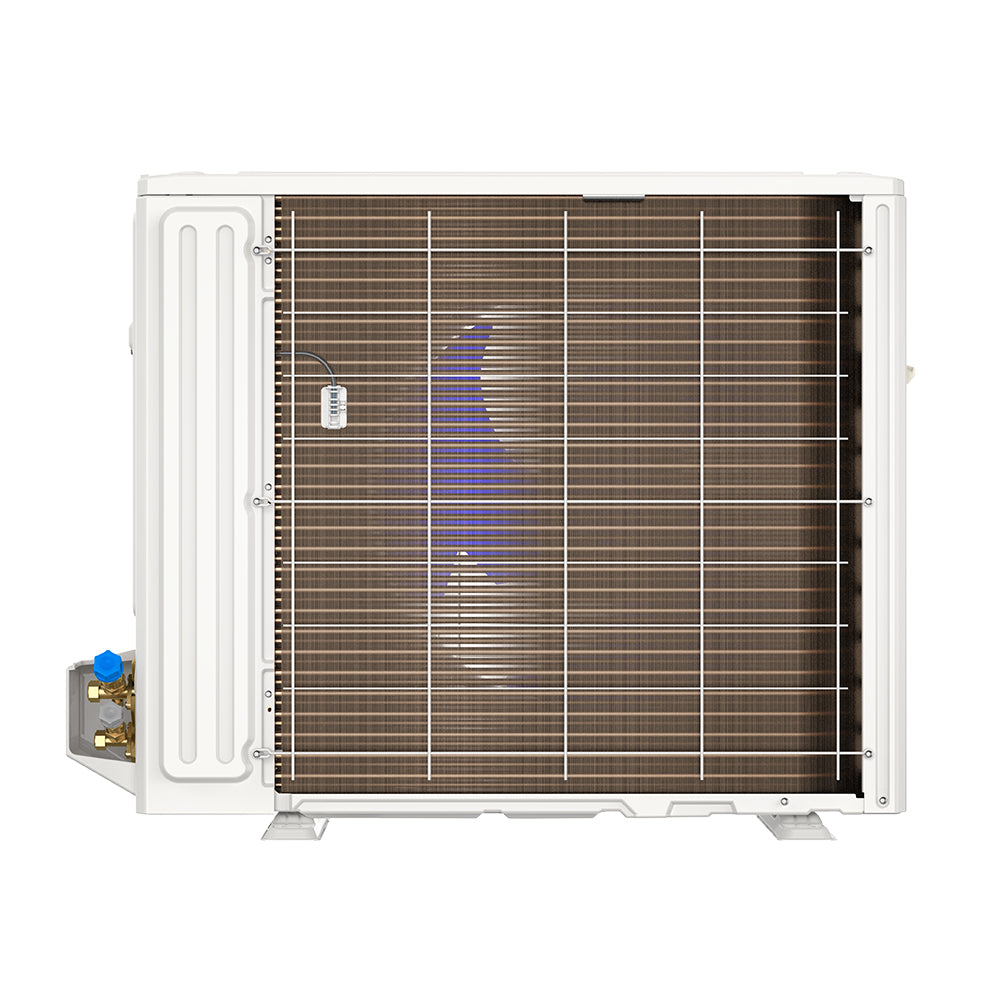

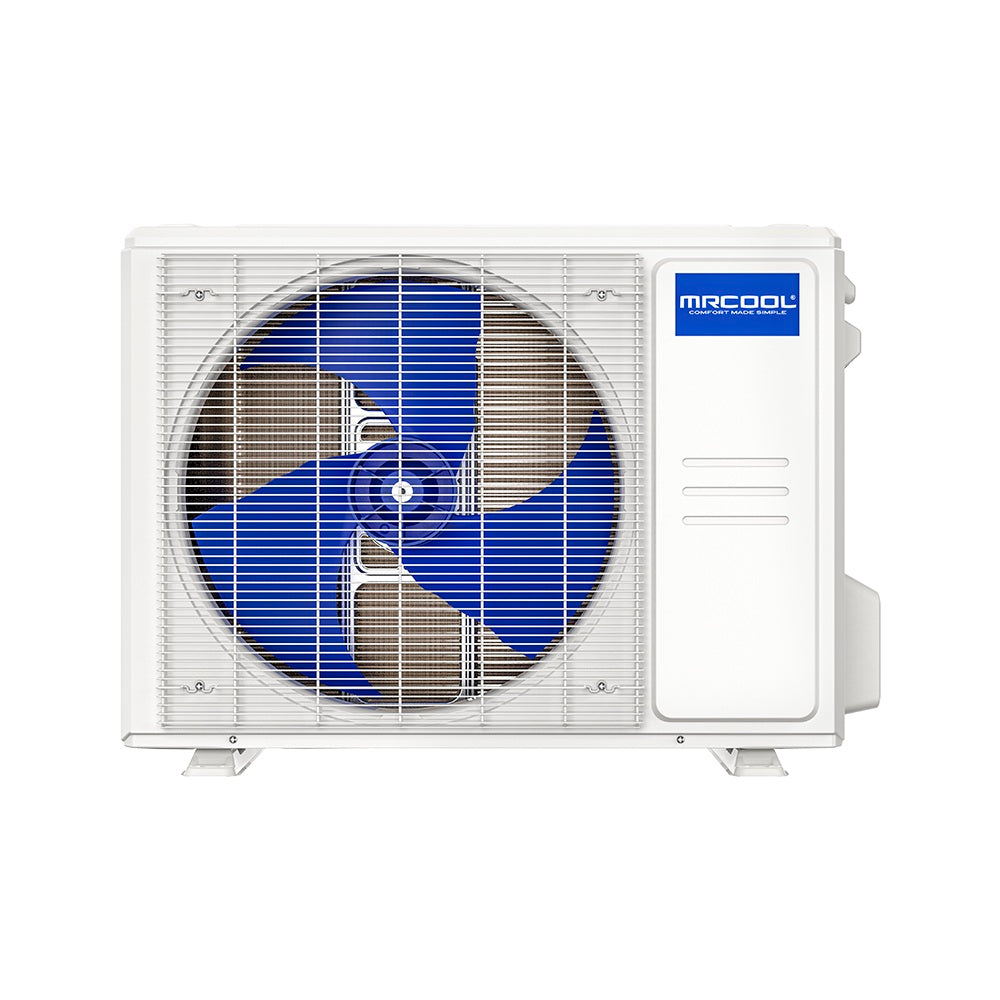

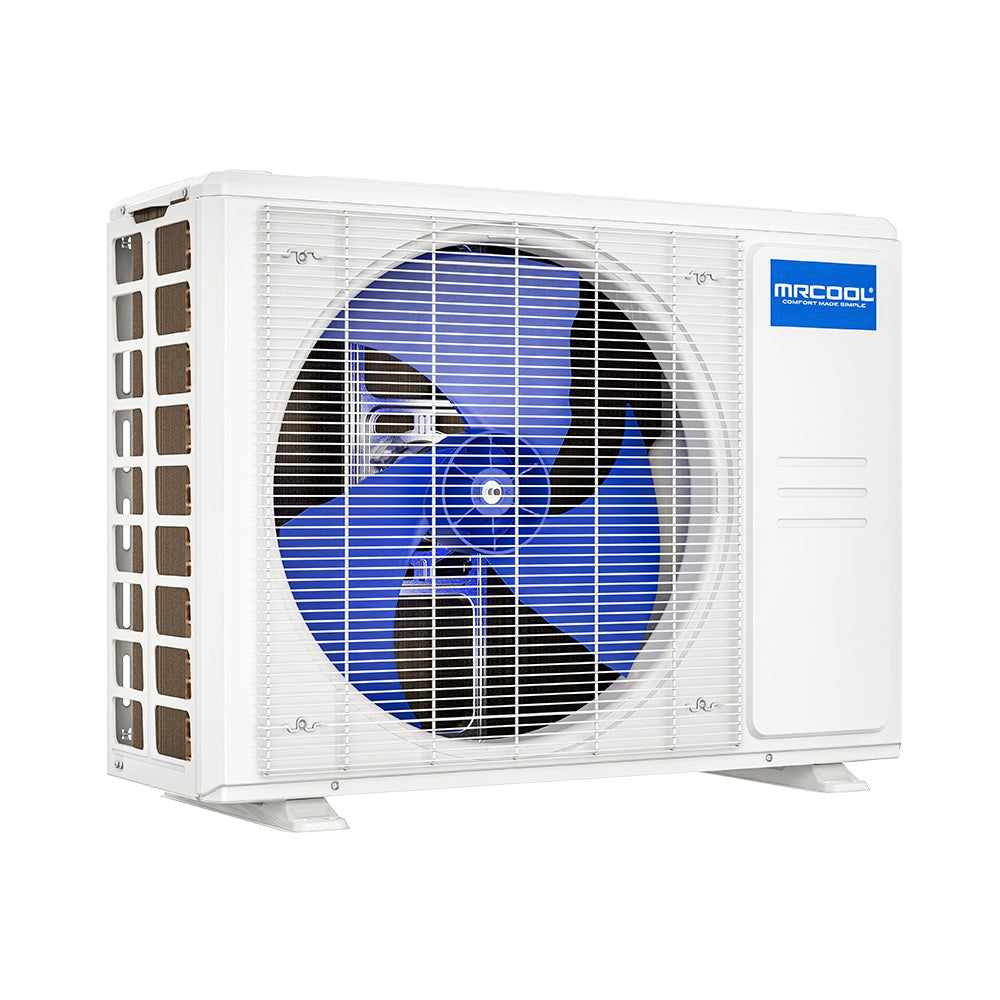

Tackling an HVAC installation yourself may seem daunting, but the 5th Generation MRCOOL� DIY� 18k BTU 22.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser is built to make the process straightforward and hassle-free. This unit is perfect for heating or cooling spaces ranging from 800 square feet, and is designed specifically for homeowners�no special tools or prior experience needed. The system comes with a 25-foot Quick Connect� line set, pre-charged with R-454B refrigerant, which means there�s no need to vacuum the lines. This makes the installation process faster, safer, and more affordable. You�ll enjoy flexible control options, including a handheld remote, the SmartHVAC app for iOS and Android, and compatibility with voice control through Amazon Alexa and Google Assistant. The Follow Me� feature helps maintain your ideal comfort by adjusting the temperature based on where the remote is located. Additionally, the corrosion-resistant Gold Fin� condenser coating is ideal for coastal environments, offering extra durability and extended performance. With user-friendly features like Auto mode, programmable timers, and automatic restart after power outages, the system is engineered for efficiency and convenience. The unit is backed by MRCOOL�s industry-leading support: a base warranty that includes 7-year compressor and 5-year parts coverage and eligibility for the MRCOOL� Care Program. It�s an innovative, reliable solution designed to put control and comfort directly in your hands.
Model: DIY-18-HP-C-230D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Single-Zone Mini-splits
- MODEL: DIY-18-HP-C-230D25-O
- GTIN: 00840255586962
- UPC: 840255586962
- SEER2: 22.5
- EER2: 13.7
- HSPF2-4: 11.5
- HSPF2-5: 8.5
- TONNAGE: 1.5
- COOLING CAPACITY (BTU): 18000
- HEATING CAPACITY (BTU): 18000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 20
- MIN CIRCUIT AMPACITY (A): 18
- COLOR: White
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 44.8
- DECIBEL RATING (DBA): 58.5
- INVERTER: DC
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 98.4
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 1/2
- COMPRESSOR MOTOR TYPE: Rotary
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 13.46
- NET HEIGHT (IN): 26.5
- NET WIDTH (IN): 35.04
- NET WEIGHT (LBS): 93.48
- GROSS DEPTH (IN): 18.11
- GROSS HEIGHT (IN): 29.53
- GROSS WIDTH (IN): 40.55
- GROSS WEIGHT (LBS): 114.2
- BROCHURE: Open
- SPECS: Open
