Description

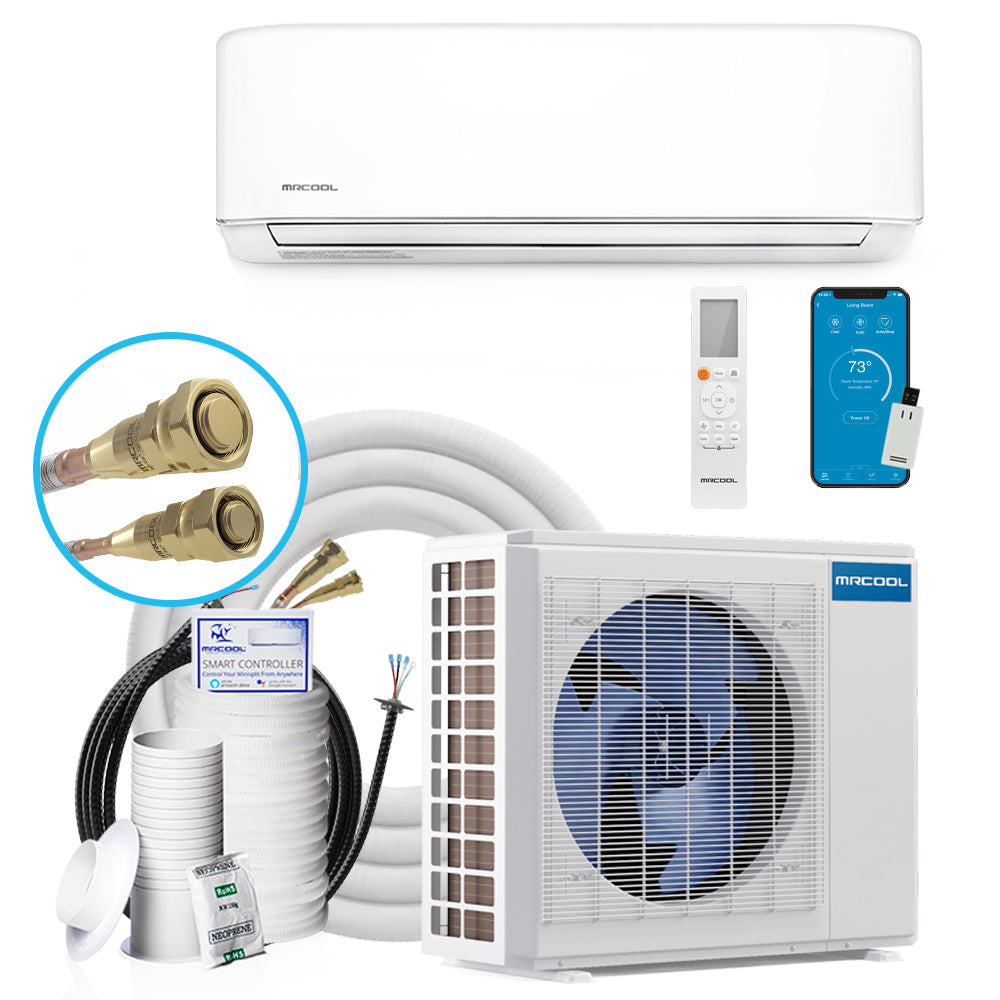

The MRCOOL� 4th Generation DIY� 24K BTU, 20.5 SEER Ductless Heat Pump is an all-in-one system that seamlessly combines efficiency, durability, and simplicity. This system can effectively heat and cool an are up to 1,000 sq. ft., while offering a 20.5 SEER efficiency rating that has allowed it to achieve an ENERGY STAR certification. It also features durable construction and a corrosion-resistant Gold Fin� condenser coating. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MRCOOL� Pre-Charged Quick Connect� Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system�s Follow Me� function allows it to adjust the room temperature based on the location of the handheld remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a powerful 7-year compressor warranty and 5-year parts warranty, with MRCOOL� Care Program eligibility, this system is sure to meet your comfort needs and peace of mind.
Model: DIY-24-HP-C-230C25
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 4th Gen Condenser
- MODEL: DIY-24-HP-C-230C25
- GTIN: 00810063868529
- UPC: 810063868529
- UNIT TYPE: Mini Split
- SEER2: 20.5
- EER: 12.5
- EER2: 12.5
- COP 47: 3.15
- HSPF-4: 10.5
- HSPF-5: 9
- HSPF2-4: 9.2
- HSPF2-5: 7.1
- CFM: 605.88/505.88/364.71
- TONNAGE: 2
- COOLING CAPACITY (BTU): 23000
- HEATING CAPACITY (BTU): 25000
- VOLTAGE (V): 208-230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 35
- MIN CIRCUIT AMPACITY (A): 22
- COLOR: White
- COLOR FAMILY: White
- RATED LOAD: 0.45
- MAX COVERAGE AREA: Up to 1000
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-410A
- REFRIGERANT VOLUME (OZ): 81.13
- DECIBEL RATING (DBA): 48.5/43.5/33
- DECIBEL RATING LOW (DBA): 33
- DECIBEL RATING HIGH (DBA): 48.5
- AIR FLOW DIRECTION: 4-W
- OSCILLATION: Yes
- INVERTER: Yes
- MIN AMBIENT COOL (F): -13 ~ 122
- MIN AMBIENT HEAT (F): -13 ~ 75
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 75
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- COMPRESSOR MOTOR TYPE: Twin-Rotary
- CONDENSER FAN MOTOR RPM: 850/750/700
- BLOWER MOTOR RPM: 1200/1000/700
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- UL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE WARRANTY: 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY: 5-year Parts
- BASE COMPRESSOR WARRANTY: 7-year Compressor
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU;PR;VI
- NET DEPTH (IN): 13.46
- NET HEIGHT (IN): 26.50
- NET WIDTH (IN): 35.04
- NET WEIGHT (LBS): 94.36
- GROSS DEPTH (IN): 19.88
- GROSS HEIGHT (IN): 35.04
- GROSS WIDTH (IN): 42.91
- GROSS WEIGHT (LBS): 164
- VIDEO 1: Open
- VIDEO 2: Open
- VIDEO 3: Open
- VIDEO 4: Open
- VIDEO 5: Open
- BROCHURE: Open
- SPECS: Open
