Description

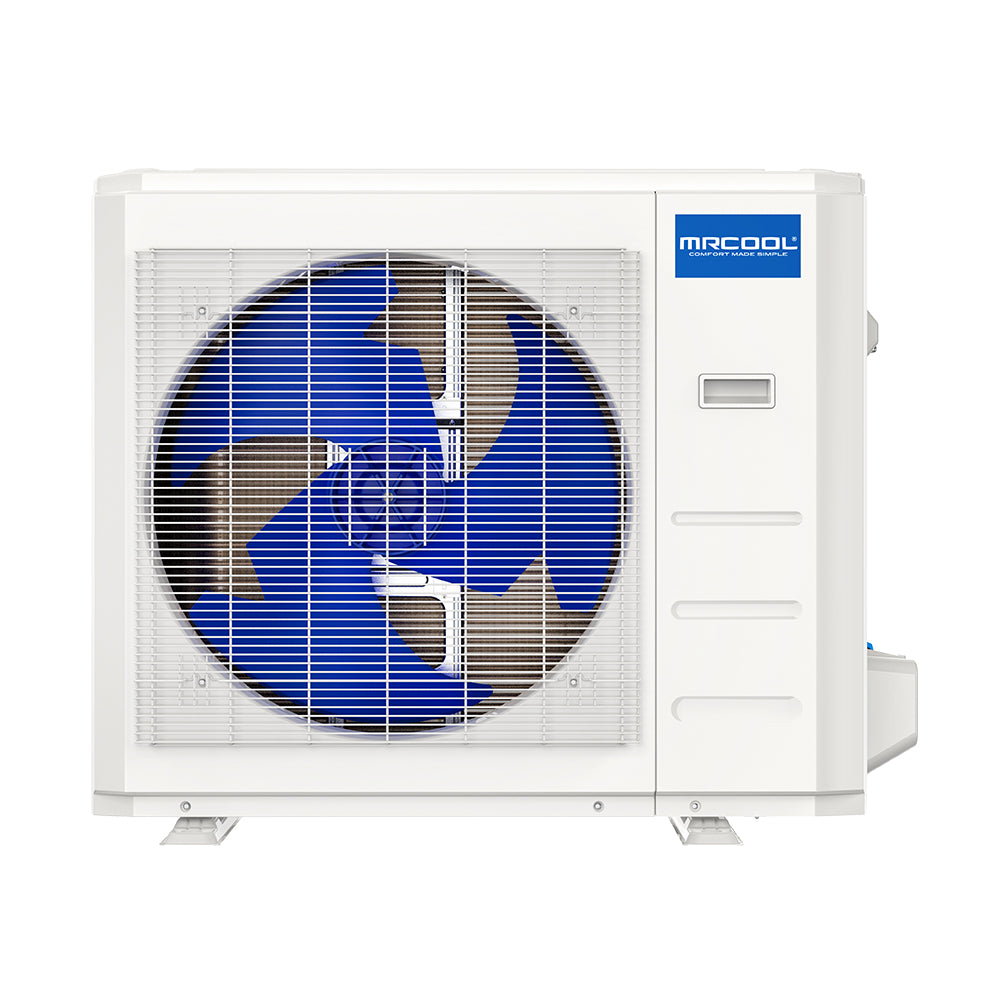

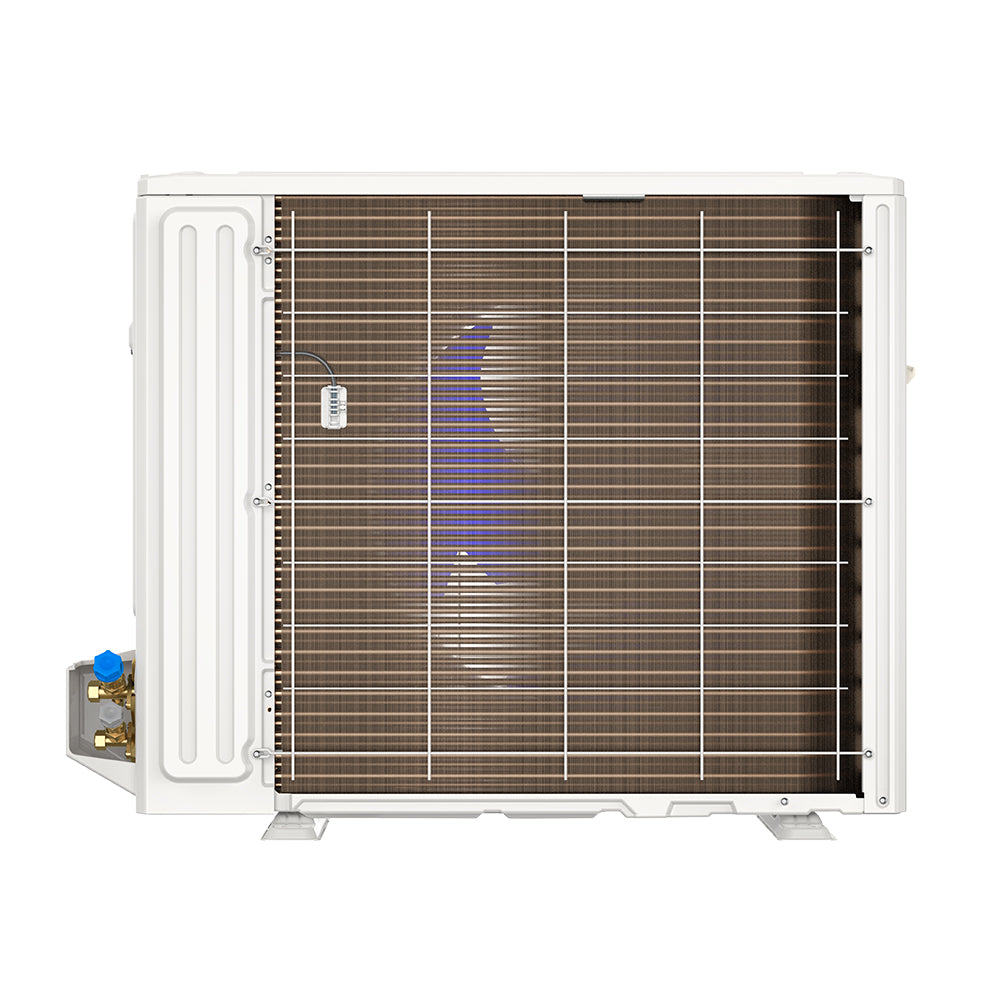

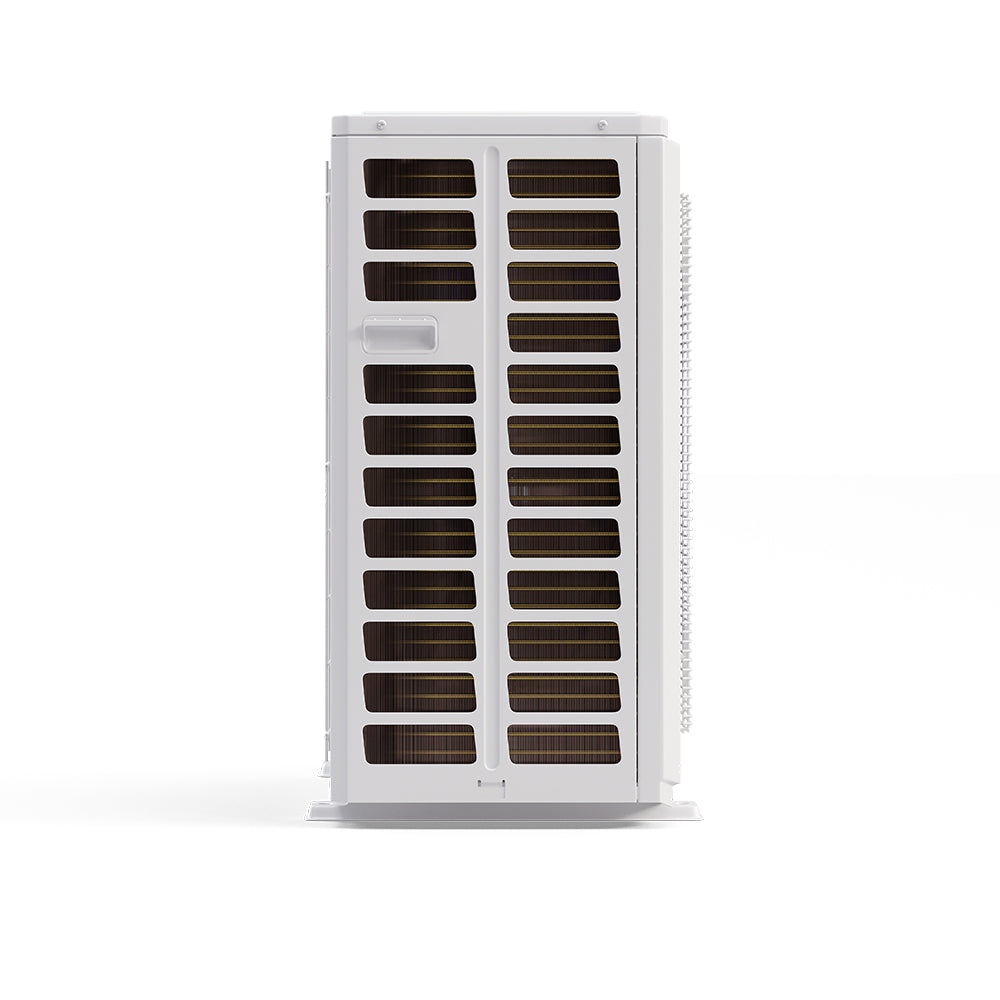

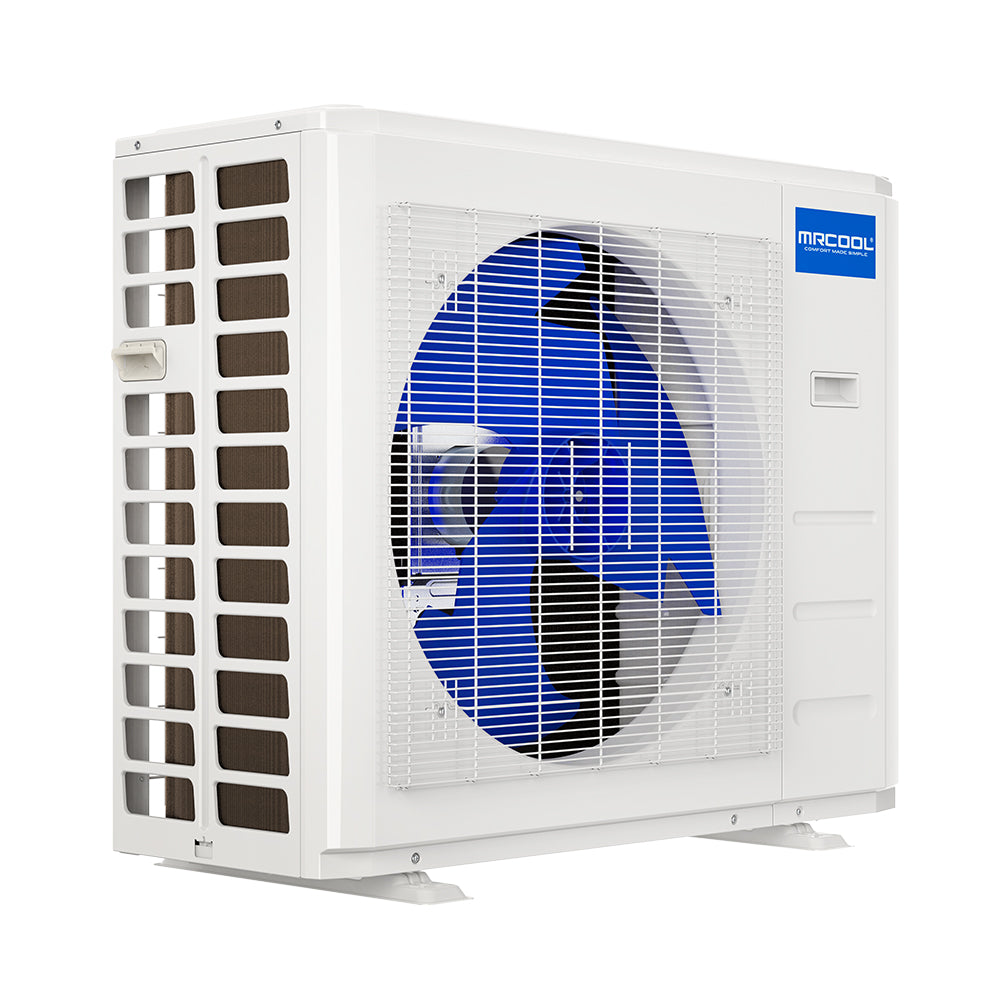

Installing your own HVAC system doesn�t have to be difficult. The 5th Generation MRCOOL� DIY� 24k BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is made with homeowners in mind, offering a simple and efficient way to heat or cool areas between 750 and 1,000 sq. ft.�without the need for professional tools or technical experience. This system includes a 25-foot pre-charged Quick Connect� line set filled with eco-friendly R-454B refrigerant, removing the need for vacuuming during installation. It�s a safe, time-saving solution that helps reduce labor costs and installation complexity. Controlling your comfort is easy with multiple options: the included remote, the SmartHVAC app on Apple or Android devices, or voice control via Alexa and Google Assistant. The Follow Me� feature adds personalized comfort by sensing the temperature around the remote and adjusting accordingly. For coastal areas, the Gold Fin� condenser coating offers added protection from corrosion, ensuring lasting performance in harsh environments. Additional features include energy-saving modes like Auto and Sleep, a built-in timer function, and automatic restart after power loss�all designed to maximize comfort and efficiency with minimal effort. Supported by its industry-leading warranty, MRCOOL� offers lasting protection and peace of mind with a 7-year compressor warranty and a 5-year parts warranty, along with eligibility for the MRCOOL� Care Program. With advanced features, simple DIY installation, and dependable year-round performance, this system is engineered for long-term comfort and confidence.
Model: DIY-24-HP-C-230D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Single-Zone Mini-splits
- MODEL: DIY-24-HP-C-230D25-O
- GTIN: 00840255586979
- UPC: 840255586979
- SEER2: 22.7
- EER2: 12.7
- HSPF2-4: 9.5
- HSPF2-5: 7.1
- TONNAGE: 2
- COOLING CAPACITY (BTU): 24000
- HEATING CAPACITY (BTU): 24000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 25
- MIN CIRCUIT AMPACITY (A): 24
- COLOR: White
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 67.37
- DECIBEL RATING (DBA): 58.5
- INVERTER: DC
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 164
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- COMPRESSOR MOTOR TYPE: Rotary
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 16.14
- NET HEIGHT (IN): 31.89
- NET WIDTH (IN): 37.24
- NET WEIGHT (LBS): 122.8
- GROSS DEPTH (IN): 19.88
- GROSS HEIGHT (IN): 37.01
- GROSS WIDTH (IN): 42.91
- GROSS WEIGHT (LBS): 155.65
- BROCHURE: Open
- SPECS: Open
