Description

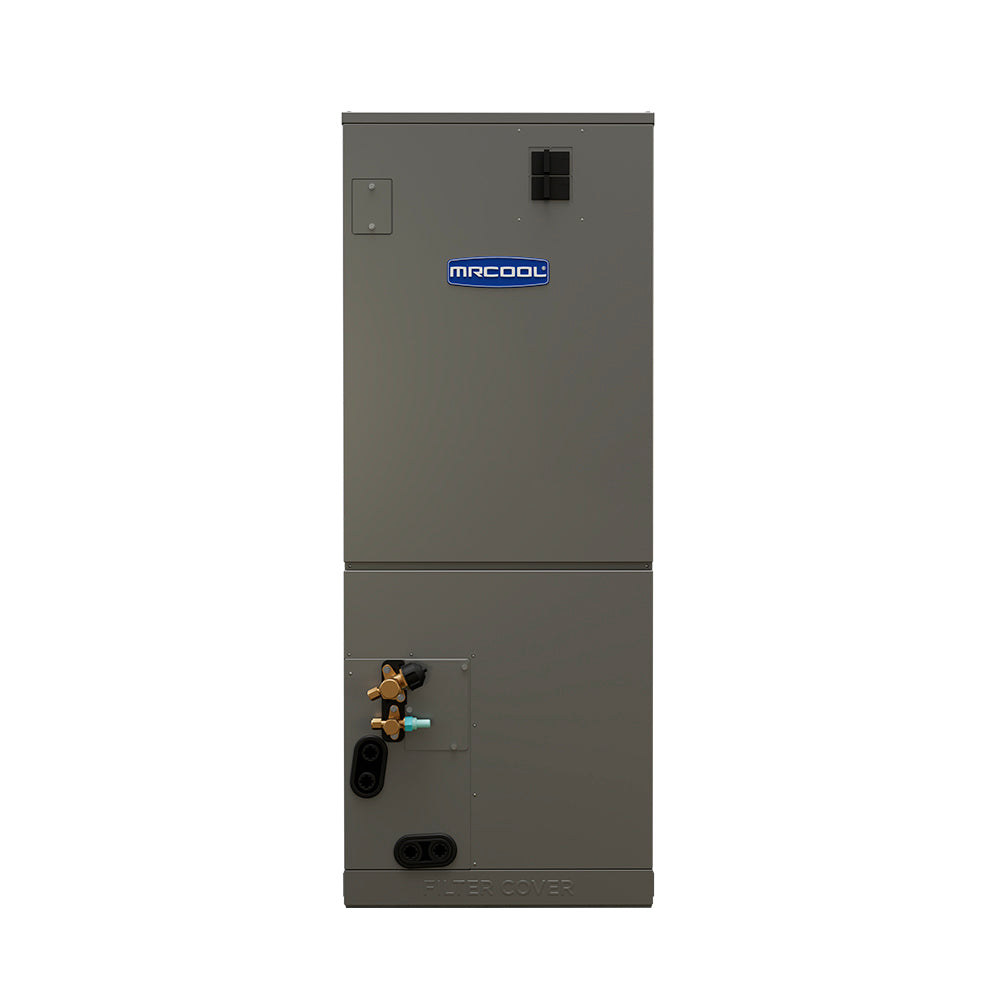

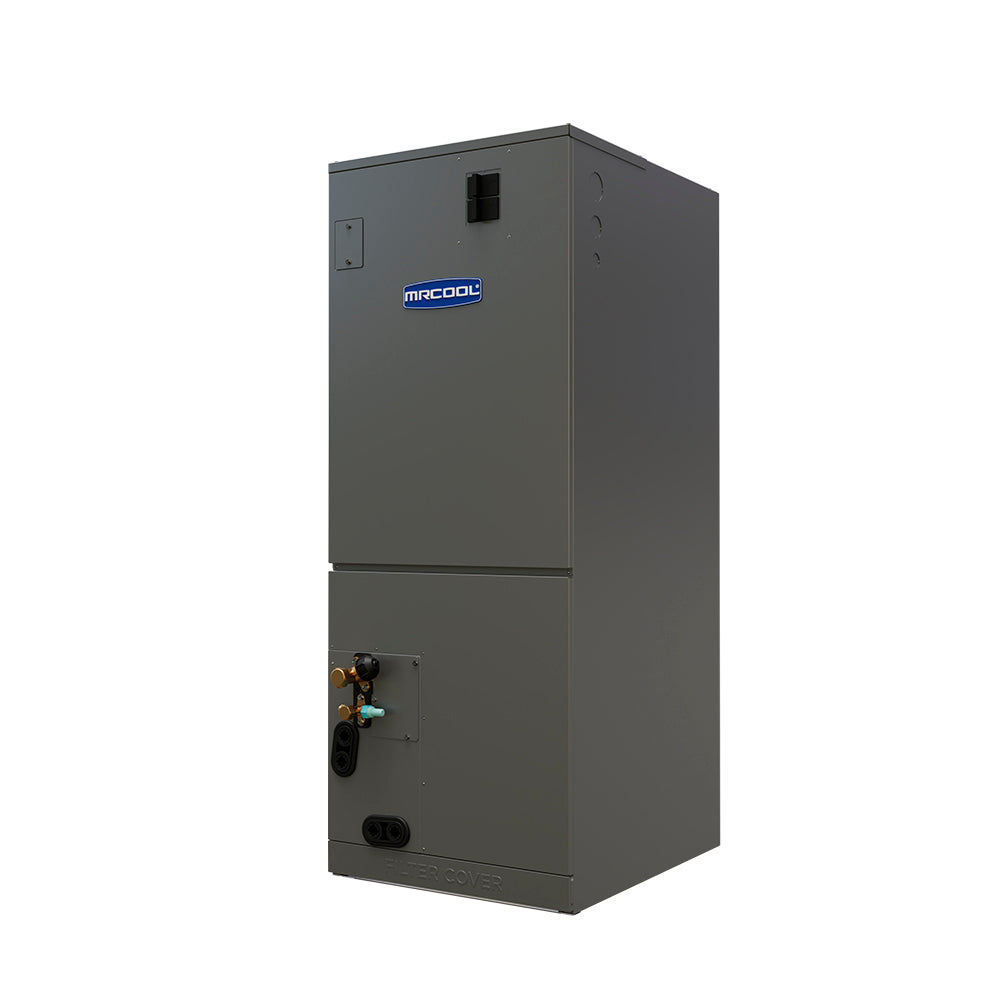

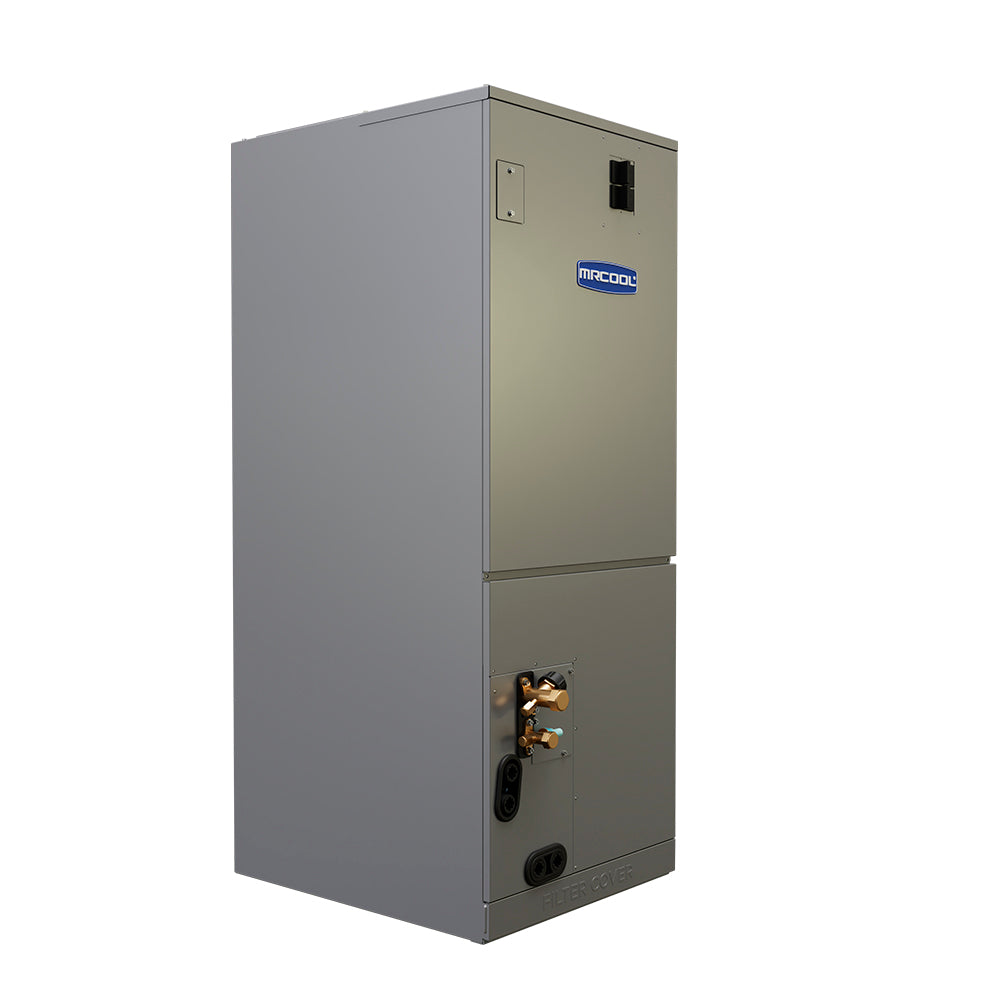

The 24K MRCOOL� DIY Hybrid Air Handler is a smart, flexible solution for heating and cooling spaces up to 1,000 square feet. Designed for easy pairing with MRCOOL� DIY condensers, it allows for a seamless, do-it-yourself installation�ideal for replacing older HVAC systems. Its painted galvanized steel exterior ensures durability and long-lasting performance, while the built-in self-diagnostics panel simplifies troubleshooting by quickly identifying error codes and reducing downtime.

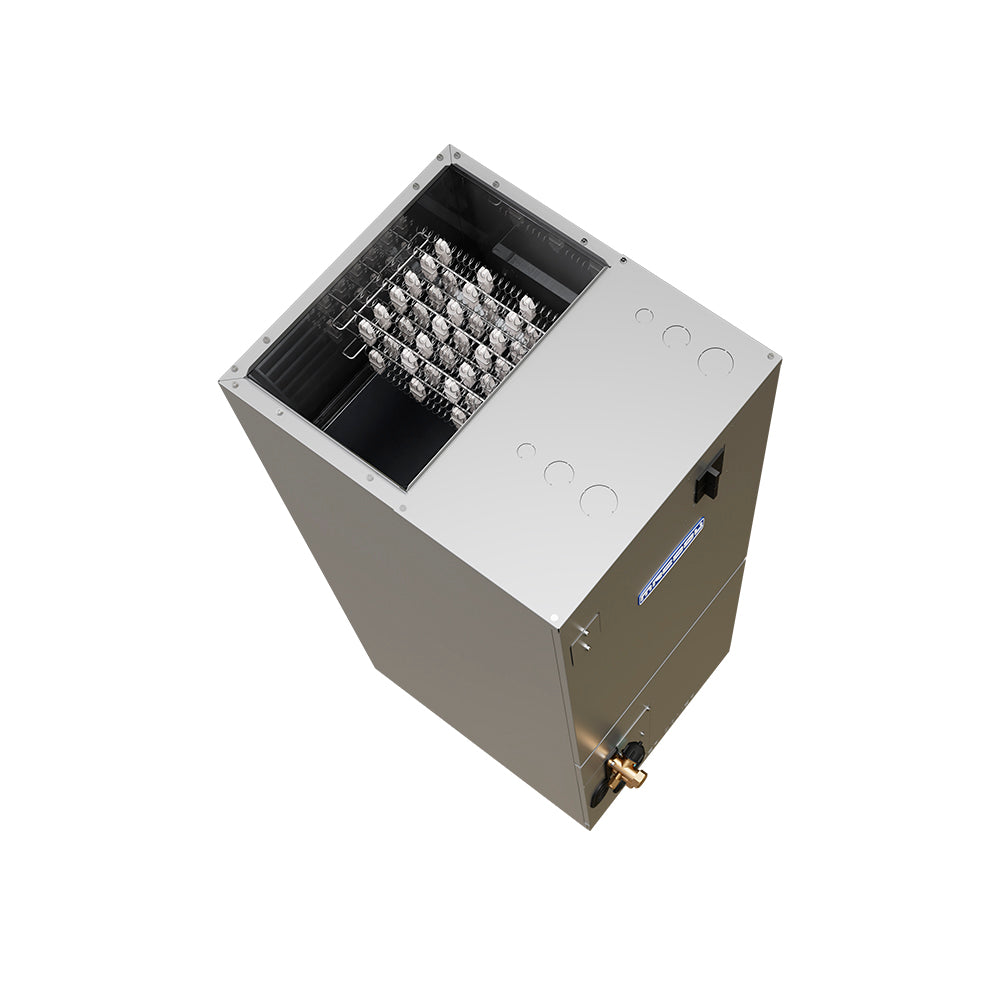

This air handler supports multiple installation configurations�including upflow, downflow, and horizontal left or right�making it adaptable to a variety of home layouts. It uses R454B refrigerant, an environmentally conscious option that offers high performance with reduced environmental impact. For added warmth during colder months, an optional heat kit can be included for increased year-round comfort and versatility.
The unit also comes equipped with the MRCOOL� Smart Wi-Fi Thermostat, allowing easy control via the touchscreen or the MRCOOL� app. This smart feature makes it simple to customize your indoor climate and maintain optimal comfort with minimal effort, whether you�re home or away.
Backed by a 5-year parts warranty, the 24K MRCOOL� DIY Hybrid Air Handler combines energy efficiency, convenience, and reliability. It�s a cost-effective, modern upgrade for homeowners seeking greater control, performance, and peace of mind in their home HVAC systems.
Model: DIY-24-HP-MUAH-230D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY Hybrid� Air Handler
- MODEL: DIY-24-HP-MUAH-230D25-O
- GTIN: 00840255588409
- UPC: 840255588409
- UNIT TYPE: Split System Ducted DIY Air Handler
- EQUIPMENT TYPE: Air Handler
- CONFIGURATION: Multi-Position
- WORKS WITH: DIY MZ or 24K DIY Condenser
- CFM: 824 / 759.3 / 694.5 / 629.8 / /
- TONNAGE: 2
- COOLING CAPACITY (BTU): 24000
- HEATING CAPACITY (BTU): 24000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 4
- COLOR: Gray
- RATED LOAD: 3
- MAX COVERAGE AREA: 1050
- REFRIGERANT TYPE: R-454B
- DECIBEL RATING (DBA): 42.5
- DECIBEL RATING LOW (DBA): 29
- DECIBEL RATING HIGH (DBA): 44
- NUMBER OF SPEEDS: 4
- DRAIN CONNECTION SIZE: 3/4
- LINESET INCLUDED: No
- MAX LINESET LENGTH (FT): 164
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- FILTER TYPE: Replaceable
- FILTER SIZE: Refer to Installation Manual
- METERING DEVICE: EEV
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: Yes
- AUXILIARY HEATER SIZES: 5kW, 8kW, 10kW, 15kW
- ADJUSTABLE THERMOSTAT: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: No
- UL LISTED: Yes
- CSA CERTIFIED: Yes
- ETL CERTIFIED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE WARRANTY: 5 Year Parts
- BASE PARTS WARRANTY: 5 Years
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU;PR;VI
- NET DEPTH (IN): 21.02
- NET HEIGHT (IN): 45
- NET WIDTH (IN): 17.52
- NET WEIGHT (LBS): 104.72
- GROSS DEPTH (IN): 26.57
- GROSS HEIGHT (IN): 48.62
- GROSS WIDTH (IN): 20.87
- GROSS WEIGHT (LBS): 126.76
- BROCHURE: Open
