Description

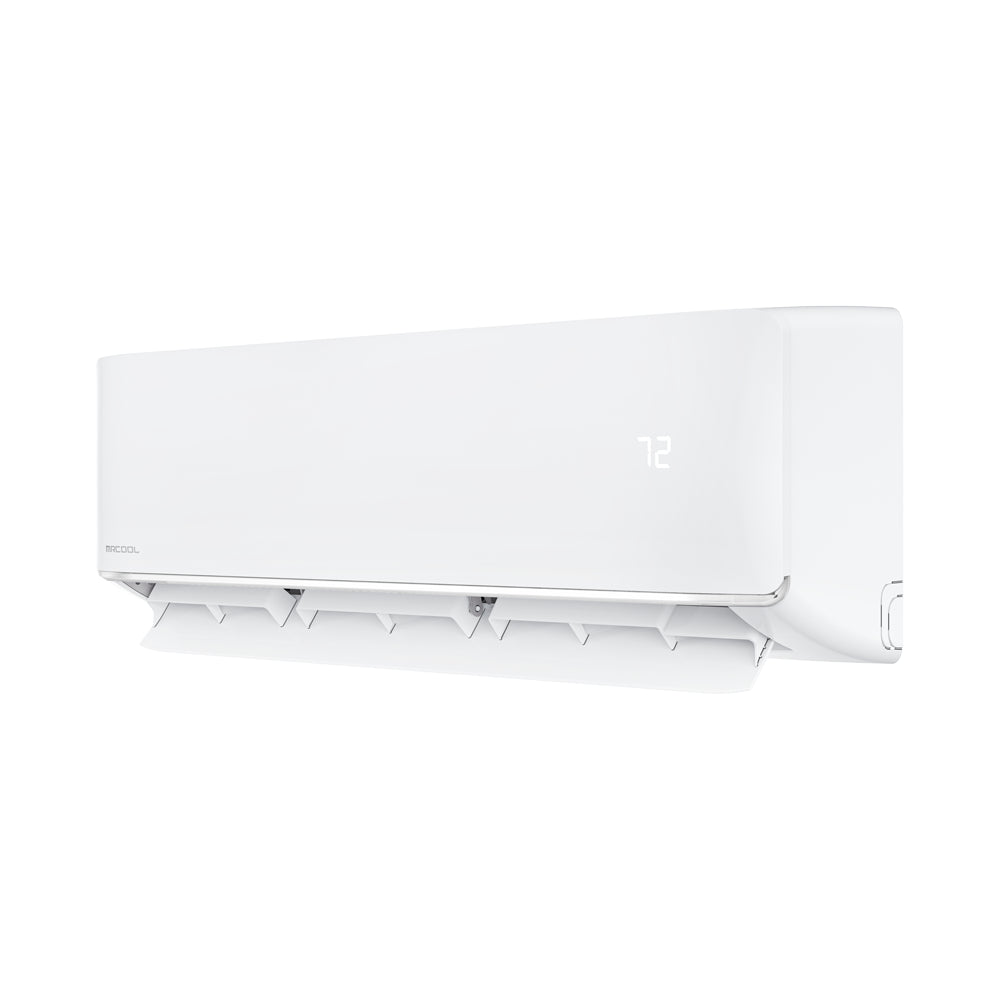

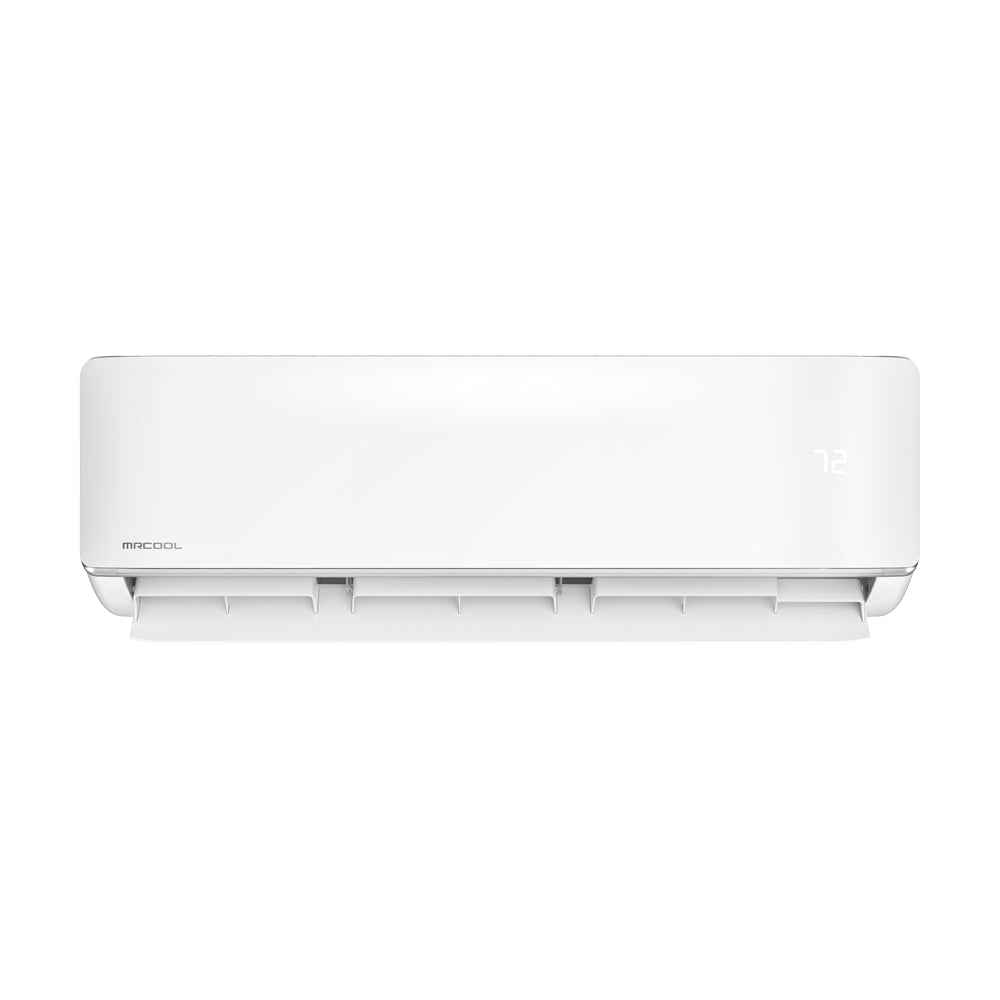

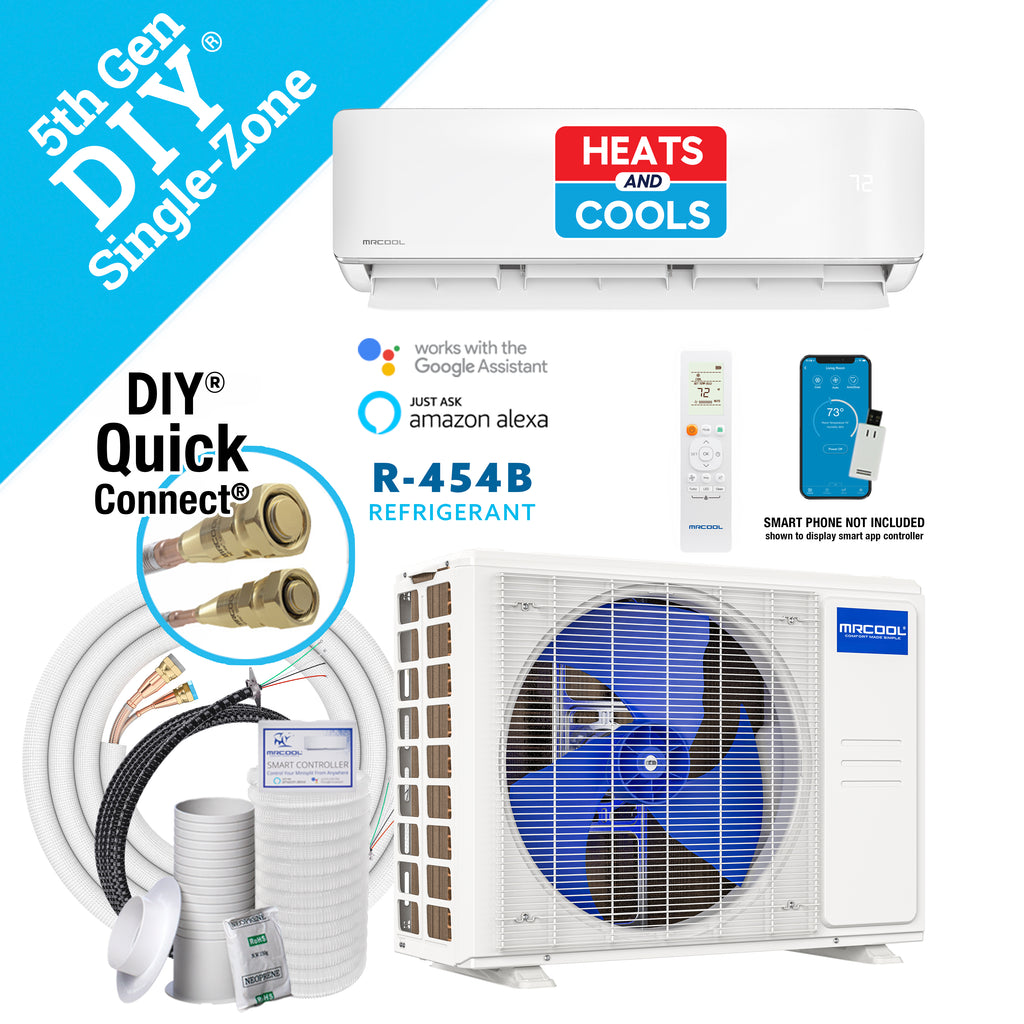

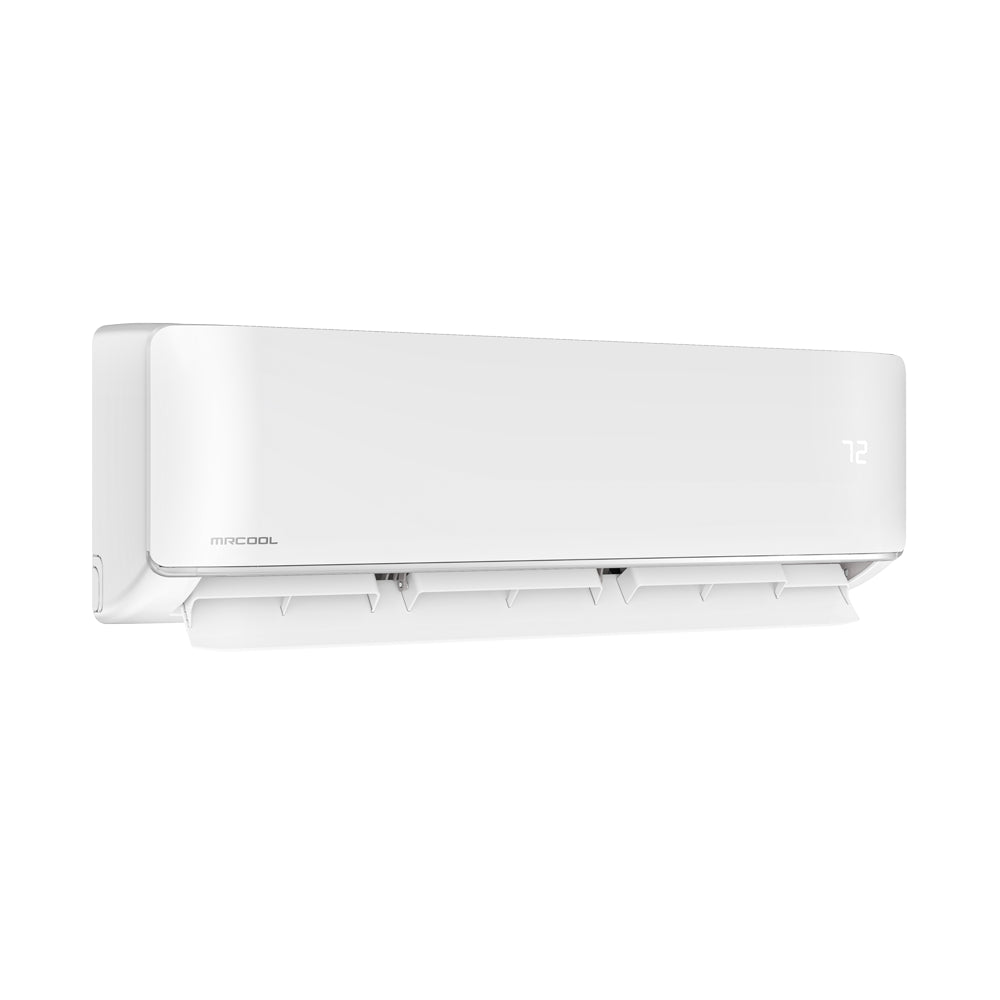

The 5th Generation MRCOOL� DIY� 24k BTU Ductless Mini-Split Heat Pump offers powerful and efficient heating and cooling for areas up to 1,050 sq. ft. Designed for true DIY installation, it requires no specialized tools or professional help, making it a cost-effective and user-friendly solution for homeowners. This system includes the durable DIYPRO� cable, which eliminates the need for electrical conduit while protecting against weather and wildlife damage, simplifying the setup even further. Controlling your comfort is simple and flexible. Use the included remote, connect via the SmartHVAC app for iOS and Android, or control the system hands-free with Amazon Alexa or Google Assistant. The Follow Me� feature helps maintain consistent comfort by adjusting based on the temperature near the remote. Dry Mode also contributes to a more pleasant indoor environment by reducing excess humidity. The outdoor unit features a Gold Fin� condenser coating that resists corrosion, making it especially suited for coastal or humid climates. For peace of mind, the system includes a powerful 7-year compressor warranty and a 5-year parts warranty, and is eligible for the MRCOOL� Care Program. With smart features, easy setup, and long-term reliability, this system delivers comfort you can trust.
Model: DIY-24-HP-WMAH-230D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Single-Zone Mini-splits
- MODEL: DIY-24-HP-WMAH-230D25-O
- GTIN: 00840255587051
- UPC: 840255587051
- TONNAGE: 2
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 3
- MOUNT TYPE: Wall
- COLOR: White
- MAX COVERAGE AREA: 1050 sqft
- DECIBEL RATING LOW (DBA): 20
- DECIBEL RATING HIGH (DBA): 54
- OSCILLATION: Yes
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- FILTER TYPE: Reusable
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 8.9
- NET HEIGHT (IN): 13.19
- NET WIDTH (IN): 42.52
- NET WEIGHT (LBS): 35.93
- GROSS DEPTH (IN): 17.68
- GROSS HEIGHT (IN): 14.29
- GROSS WIDTH (IN): 46.73
- GROSS WEIGHT (LBS): 49.82
- BROCHURE: Open
Product documents
