Description

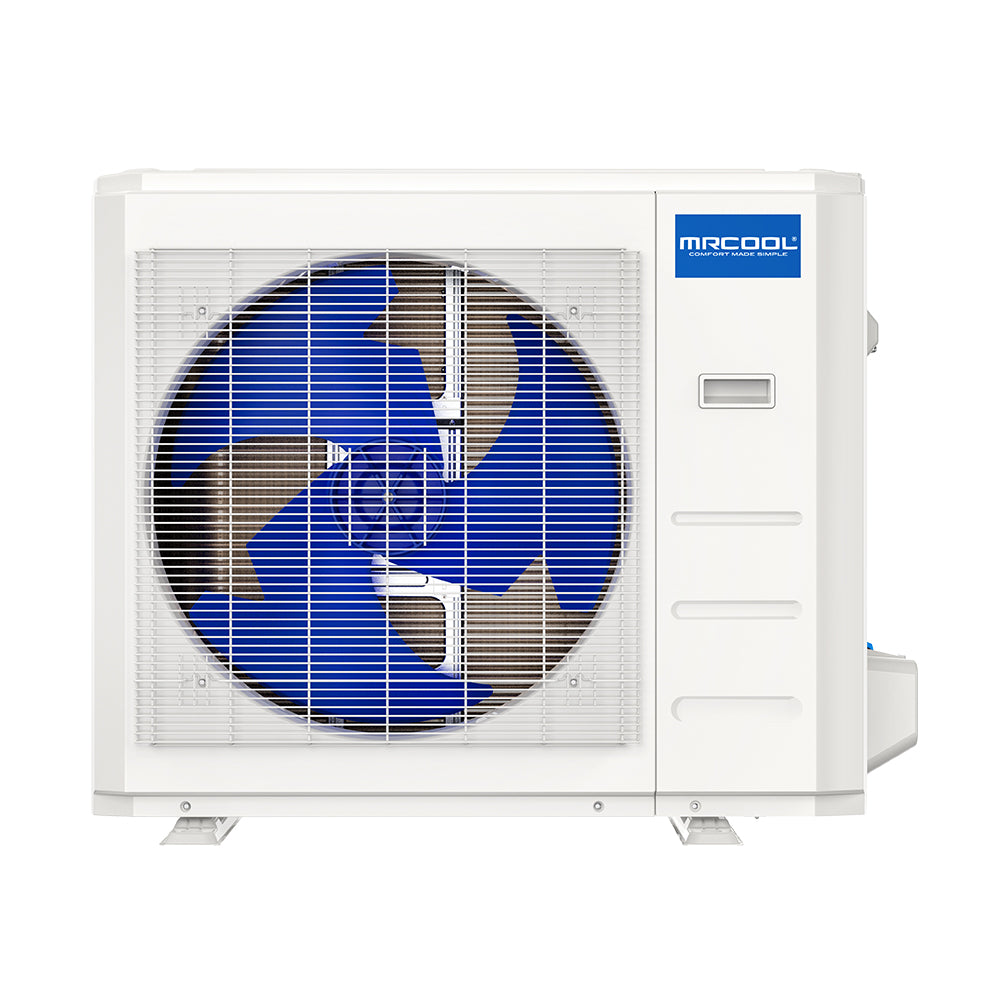

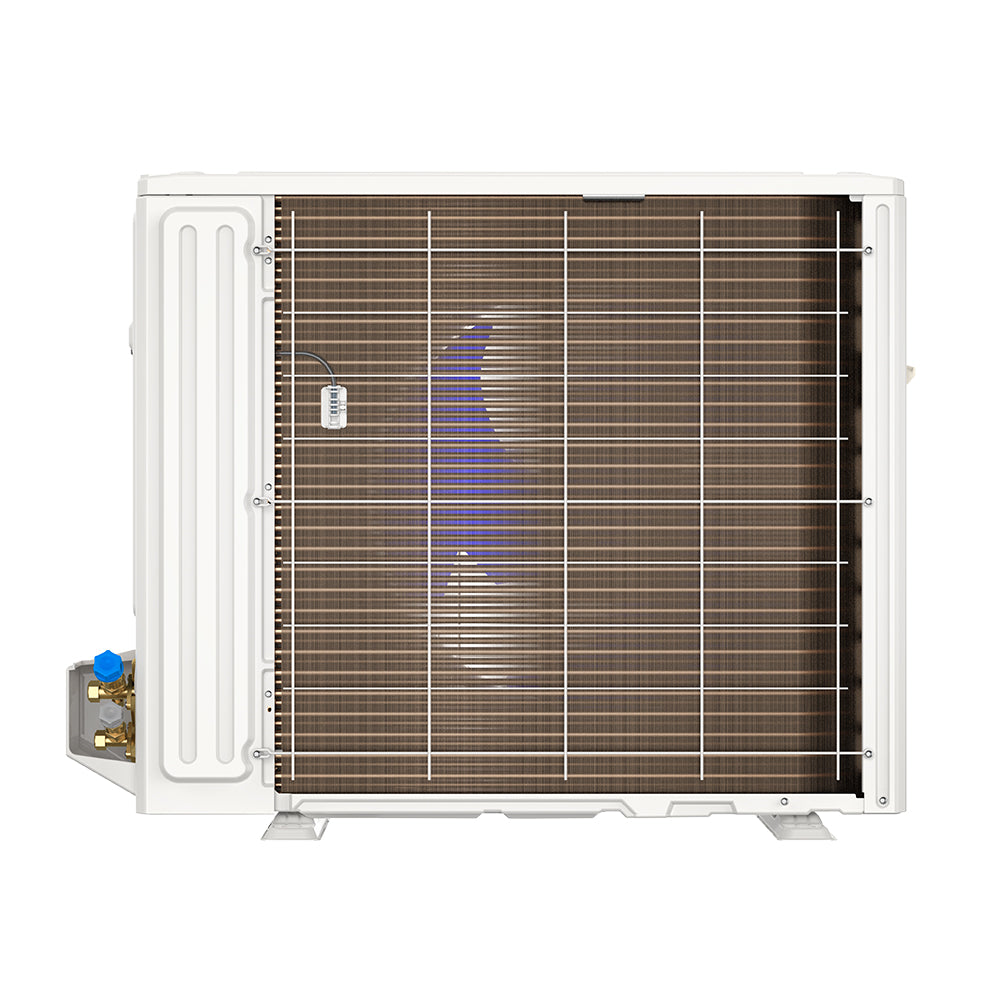

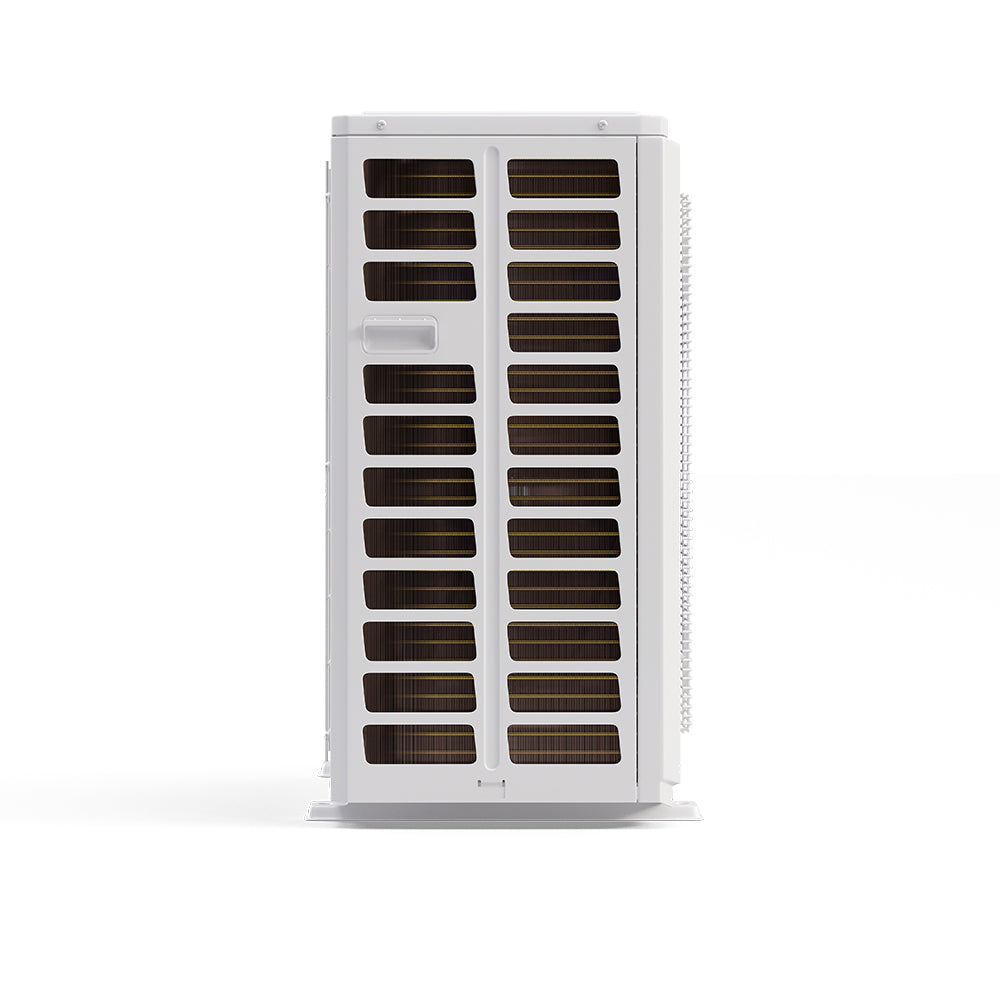

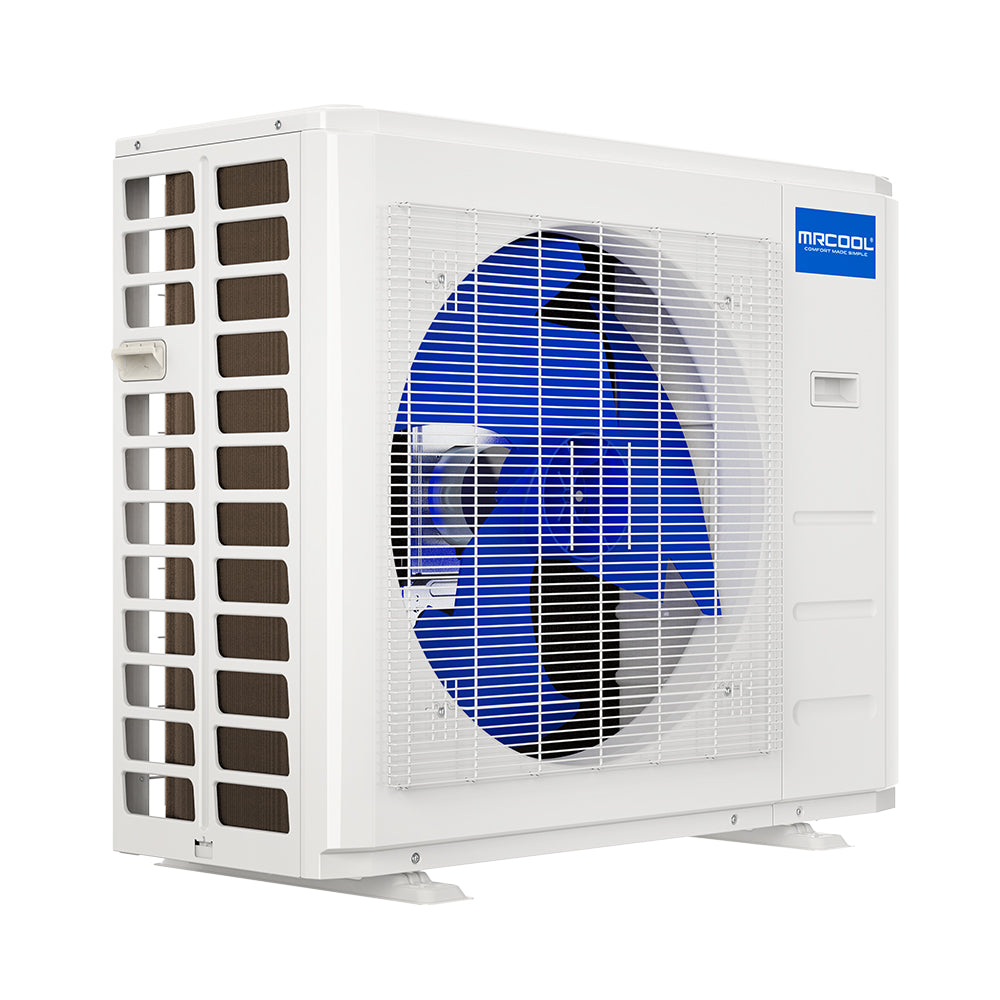

Installing an HVAC system may seem like a job for professionals, but the 5th Generation MRCOOL� DIY� 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split Condenser is specifically designed for homeowners. Ideal for rooms between 1,000 and 1,500 sq. ft., this unit delivers efficient heating and cooling without the need for specialized tools or training. The system includes a 25-foot Quick Connect� line set pre-charged with R-454B refrigerant to eliminate the need for vacuuming. Whether you're a seasoned DIYer or a first-timer, setup is straightforward and safe. Control options are flexible and convenient. Use the included remote, access the SmartHVAC app from your smartphone, or manage the unit hands-free with Alexa or Google Assistant. The Follow Me� feature enhances comfort by monitoring the temperature around the remote and adjusting the system accordingly. The Gold Fin� condenser coating is corrosion-resistant, making this unit a great choice for coastal environments. Multiple operating modes�including Auto, Sleep, and Timer�help maximize comfort while reducing energy use. Additionally, this system boasts an automatic restart feature designed to retain previous settings and continue seamless operation following a power outage. The 5th Generation MRCOOL� DIY� 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser is protected by one of the strongest warranties in the industry with a 7-year compressor warranty and a 5-year parts warranty, and is MRCOOL� Care Program-Eligible. Combining cutting-edge technology, straightforward DIY installation, and dependable performance, this system offers a worry-free solution for year-round comfort.
Model: DIY-36-HP-C-230D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Single-Zone Mini-splits
- MODEL: DIY-36-HP-C-230D25-O
- GTIN: 00840255586986
- UPC: 840255586986
- SEER2: 18
- EER2: 8.5
- HSPF2-4: 8.5
- HSPF2-5: 6.5
- TONNAGE: 3
- COOLING CAPACITY (BTU): 36000
- HEATING CAPACITY (BTU): 36000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 35
- MIN CIRCUIT AMPACITY (A): 33
- COLOR: White
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 109.7
- DECIBEL RATING (DBA): 60.5
- INVERTER: DC
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 213.2
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- COMPRESSOR MOTOR TYPE: Rotary
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 16.14
- NET HEIGHT (IN): 31.89
- NET WIDTH (IN): 37.24
- NET WEIGHT (LBS): 152.12
- GROSS DEPTH (IN): 19.88
- GROSS HEIGHT (IN): 37.01
- GROSS WIDTH (IN): 42.91
- GROSS WEIGHT (LBS): 183.42
- BROCHURE: Open
- SPECS: Open
