Description

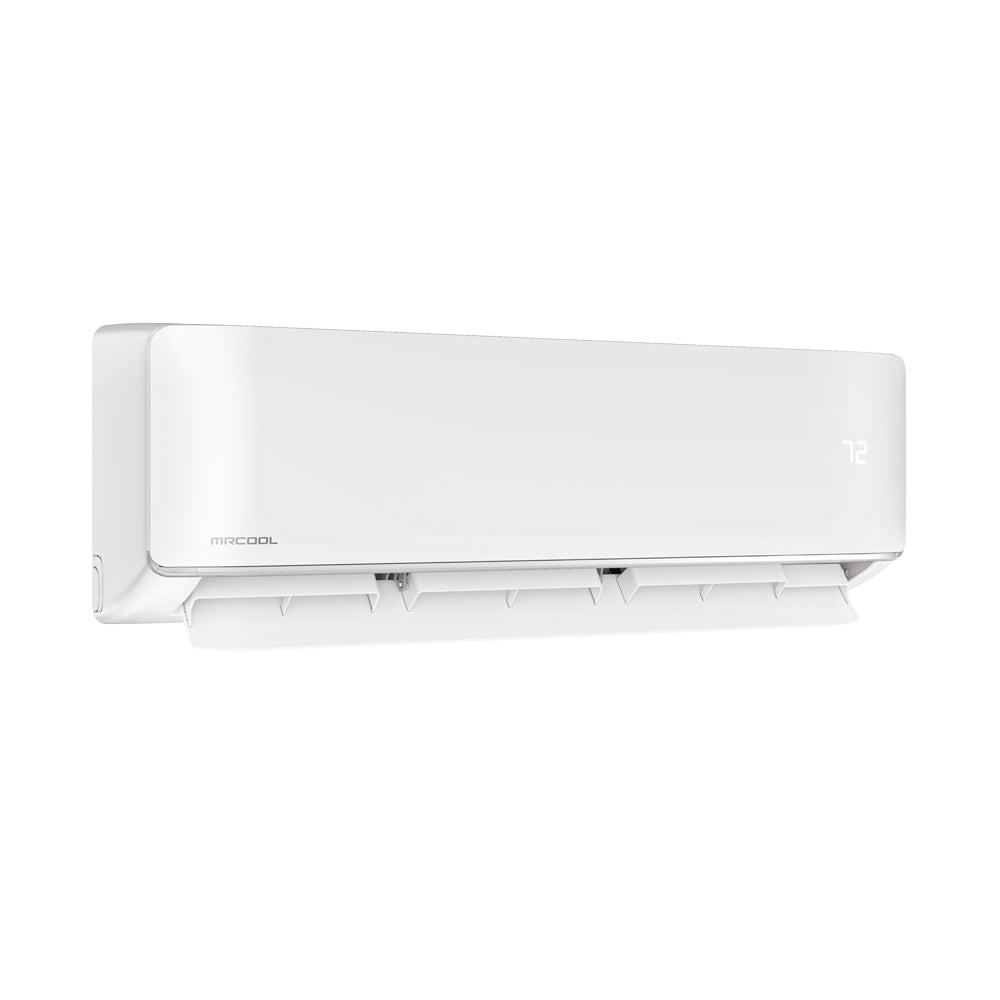

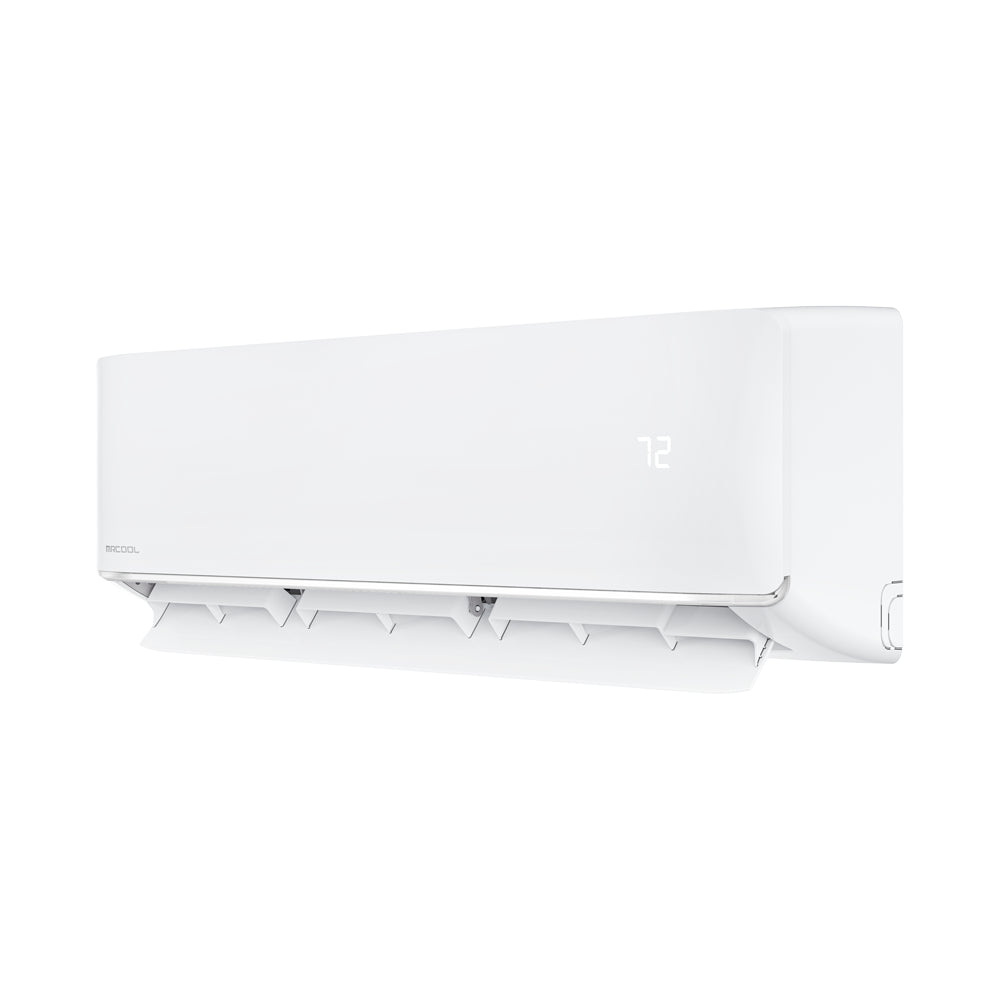

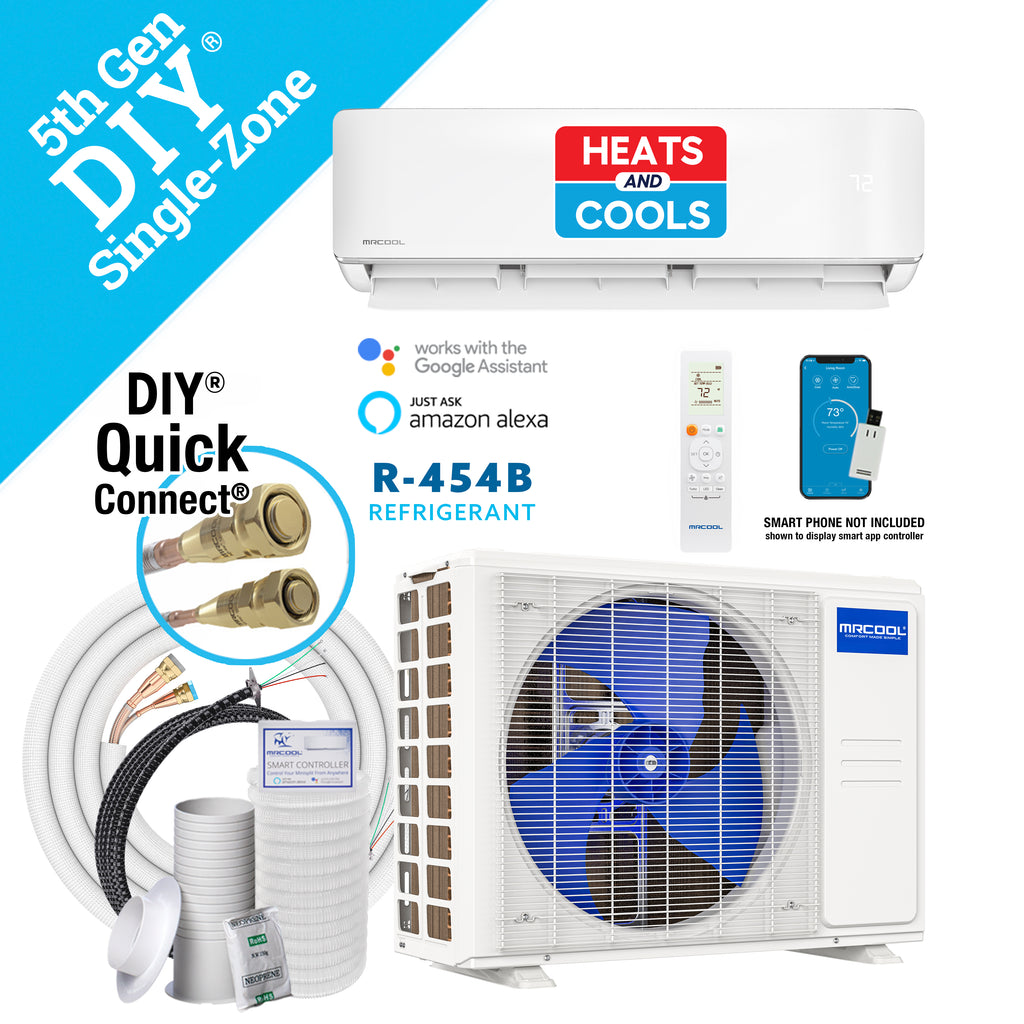

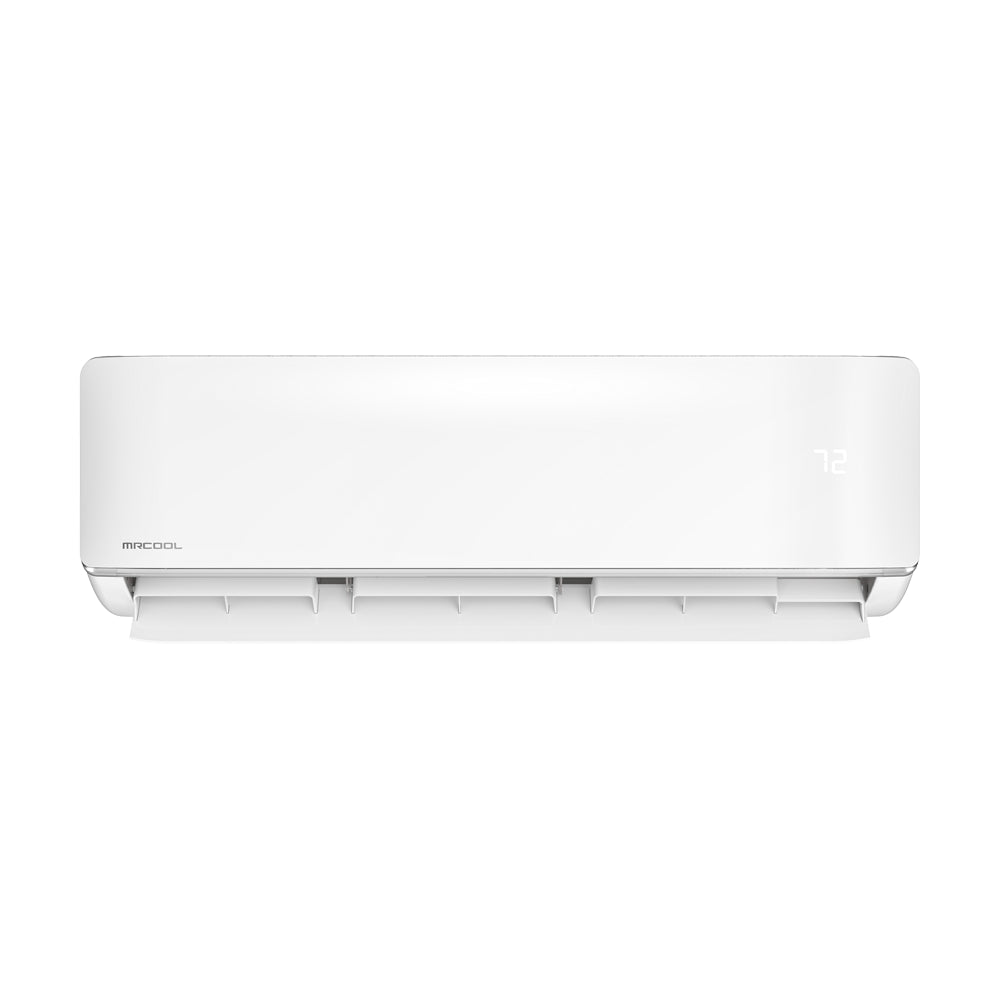

The 5th Generation MRCOOL� DIY� 36k BTU Ductless Mini-Split Heat Pump is a powerful and efficient option for heating and cooling spaces up to 1,550 sq. ft. Perfect for large rooms or open areas, this system is designed for true DIY installation�no special tools or professional assistance required. It�s a fast, affordable way to upgrade your home�s comfort. The included DIYPRO� cable makes installation even easier by eliminating the need for electrical conduit, while offering added protection against outdoor elements and wildlife damage. Controlling your comfort is simple and flexible. Use the included wireless remote, connect through the SmartHVAC app on iOS or Android, or manage the system hands-free with Amazon Alexa or Google Assistant. With the Follow Me� feature, the system senses the temperature around the remote and adjusts accordingly, providing more precise and even comfort. Dry Mode also helps by reducing humidity and improving indoor air quality. The outdoor unit includes a corrosion-resistant Gold Fin� condenser coating, ideal for homes in coastal or humid environments. For further peace of mind, you�ll receive a 7-year compressor warranty and 5-year parts warranty. This system is also eligible for the MRCOOL� Care Program. Enjoy smart control, dependable performance, and easy installation with MRCOOL� DIY�.
Model: DIY-36-HP-WMAH-230D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Single-Zone Mini-splits
- MODEL: DIY-36-HP-WMAH-230D25-O
- GTIN: 00840255587068
- UPC: 840255587068
- TONNAGE: 3
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 3
- MOUNT TYPE: Wall
- COLOR: White
- MAX COVERAGE AREA: 1550 sqft
- DECIBEL RATING LOW (DBA): 27.5
- DECIBEL RATING HIGH (DBA): 55.5
- OSCILLATION: Yes
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- FILTER TYPE: Reusable
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 11.1
- NET HEIGHT (IN): 14.25
- NET WIDTH (IN): 49.57
- NET WEIGHT (LBS): 48.72
- GROSS DEPTH (IN): 18.74
- GROSS HEIGHT (IN): 16.57
- GROSS WIDTH (IN): 53.94
- GROSS WEIGHT (LBS): 67.9
- BROCHURE: Open
