Description

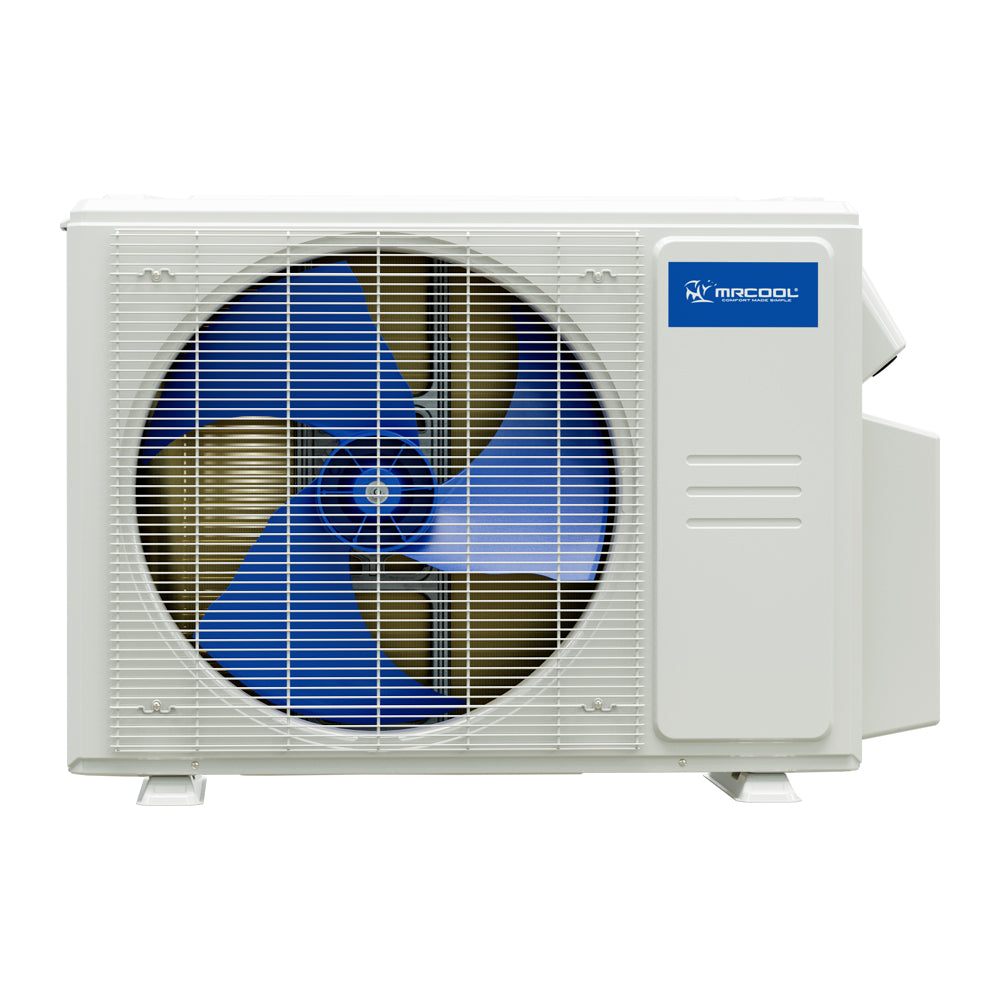

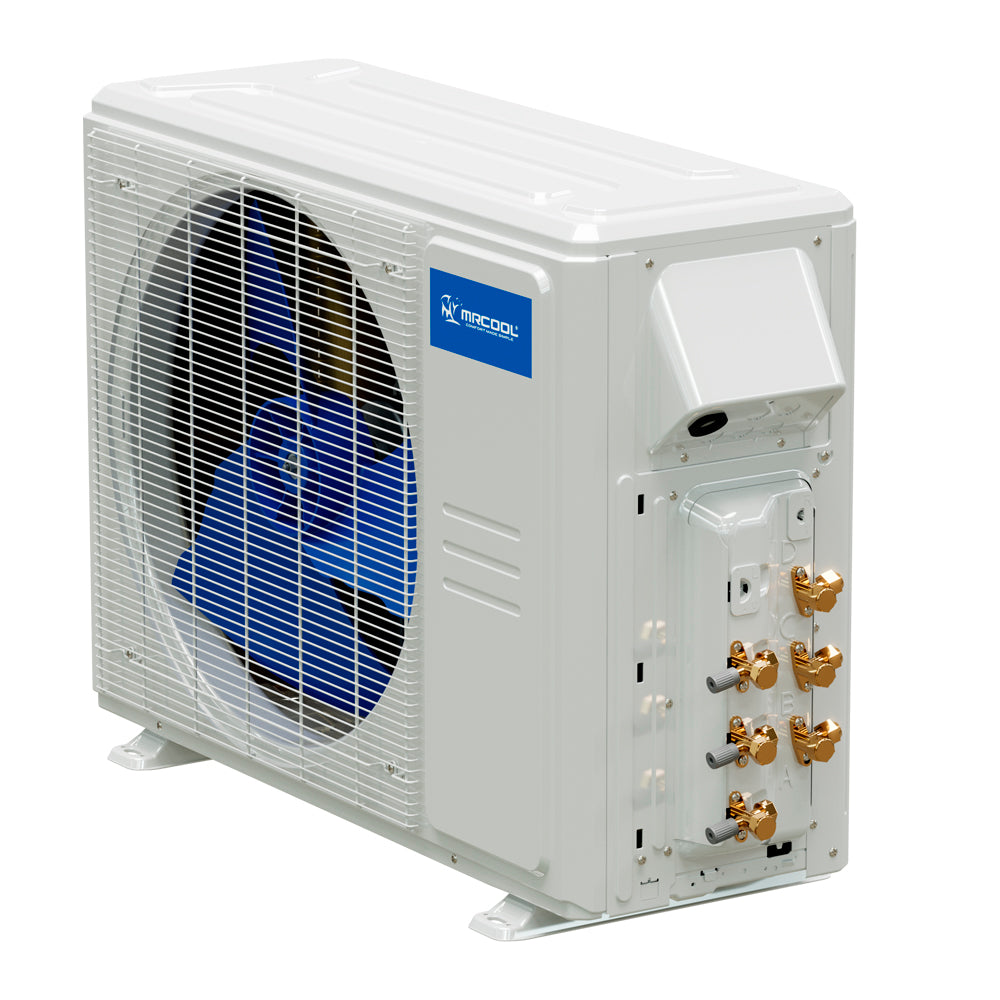

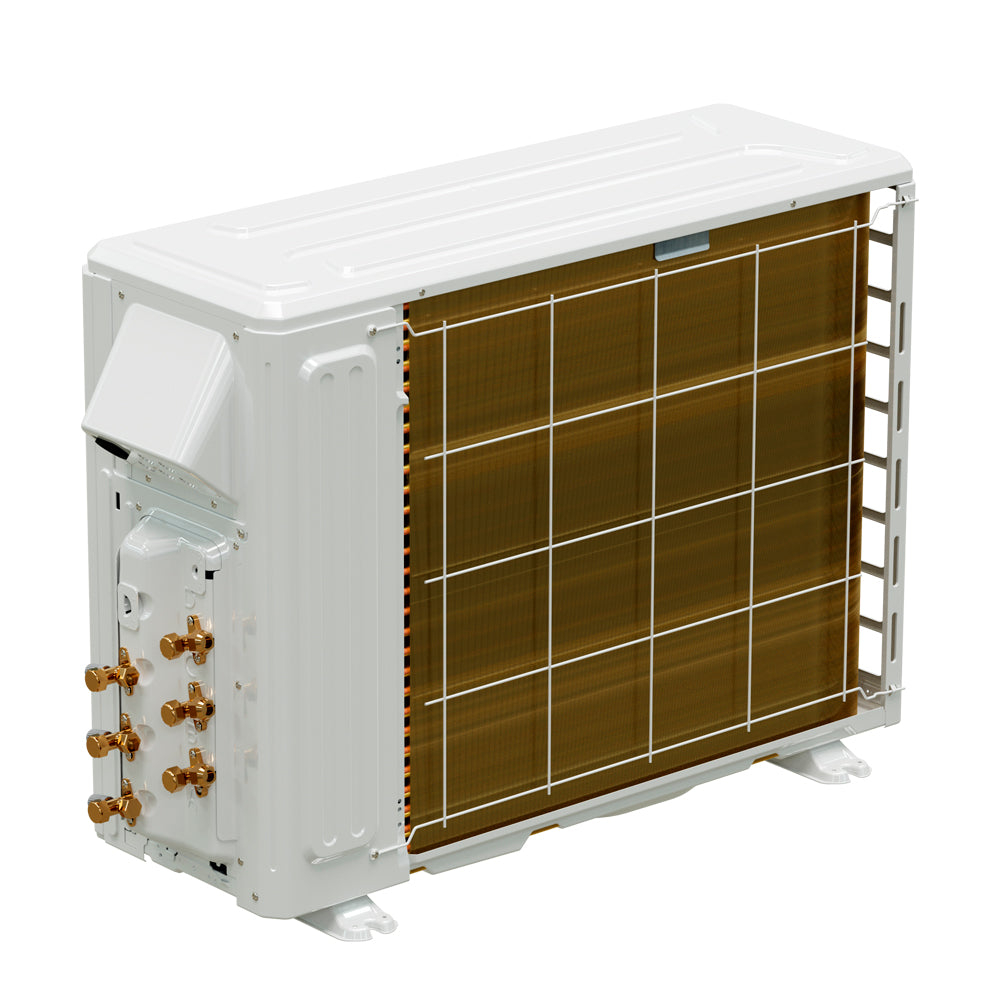

We�re excited to introduce the 5th Generation MRCOOL� DIY� 18k BTU Multi-Zone Ductless Mini-Split Condenser�our most advanced and convenient comfort solution yet. Designed for true do-it-yourself installation, this system eliminates the need for an HVAC professional. With an impressive SEER2 rating of 23.9 and HSPF2-4 rating of 10, it delivers energy savings while keeping your home comfortable year-round. This condenser can support up to three air handlers and heat or cool a combined space of up to 750 square feet�ideal for spare bedrooms, home offices, or small apartments. At the core of its simplicity is our patented pre-charged Quick Connect� line set, now filled with R-454B, a high-efficiency, environmentally friendly refrigerant. This system is designed to be sustainable, user-friendly, and cost-effective. Smart home compatibility is built in. With the Smart HVAC app, Amazon Alexa, or Google Home, you can manage temperature settings, set custom schedules, and monitor performance with ease�from anywhere, at any time. Total climate control is just a tap or voice command away. Every DIY� condenser comes backed with exceptional peace of mind. Backed by a 7-year compressor and 5-year parts warranty, the MRCOOL� DIY� 18K system offers dependable protection, with included eligibility for the MRCOOL� Care Program. With unmatched efficiency, eco-friendly design, and DIY simplicity, the MRCOOL� DIY� 5th Gen 18k BTU Multi-Zone system is the ultimate choice for personalized comfort.
Model: DIY-MULTI3-18HP230D-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Multi-Zone Mini-splits
- MODEL: DIY-MULTI3-18HP230D-O
- GTIN: 00840255587617
- UPC: 840255587617
- SEER2: 23.9
- EER2: 13
- HSPF2-4: 10
- HSPF2-5: 7.8
- TONNAGE: 1.5
- COOLING CAPACITY (BTU): 18000
- HEATING CAPACITY (BTU): 18000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 20
- MIN CIRCUIT AMPACITY (A): 16
- COLOR: White
- ZONE CAPACITY: 3
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 61.73
- DECIBEL RATING (DBA): 60
- INVERTER: DC
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 172.2
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 3/8
- COMPRESSOR MOTOR TYPE: Rotary
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 13.46
- NET HEIGHT (IN): 26.5
- NET WIDTH (IN): 35.04
- NET WEIGHT (LBS): 101.63
- GROSS DEPTH (IN): 17.24
- GROSS HEIGHT (IN): 29.53
- GROSS WIDTH (IN): 40.55
- GROSS WEIGHT (LBS): 109.57
- BROCHURE: Open
Product documents
