Description

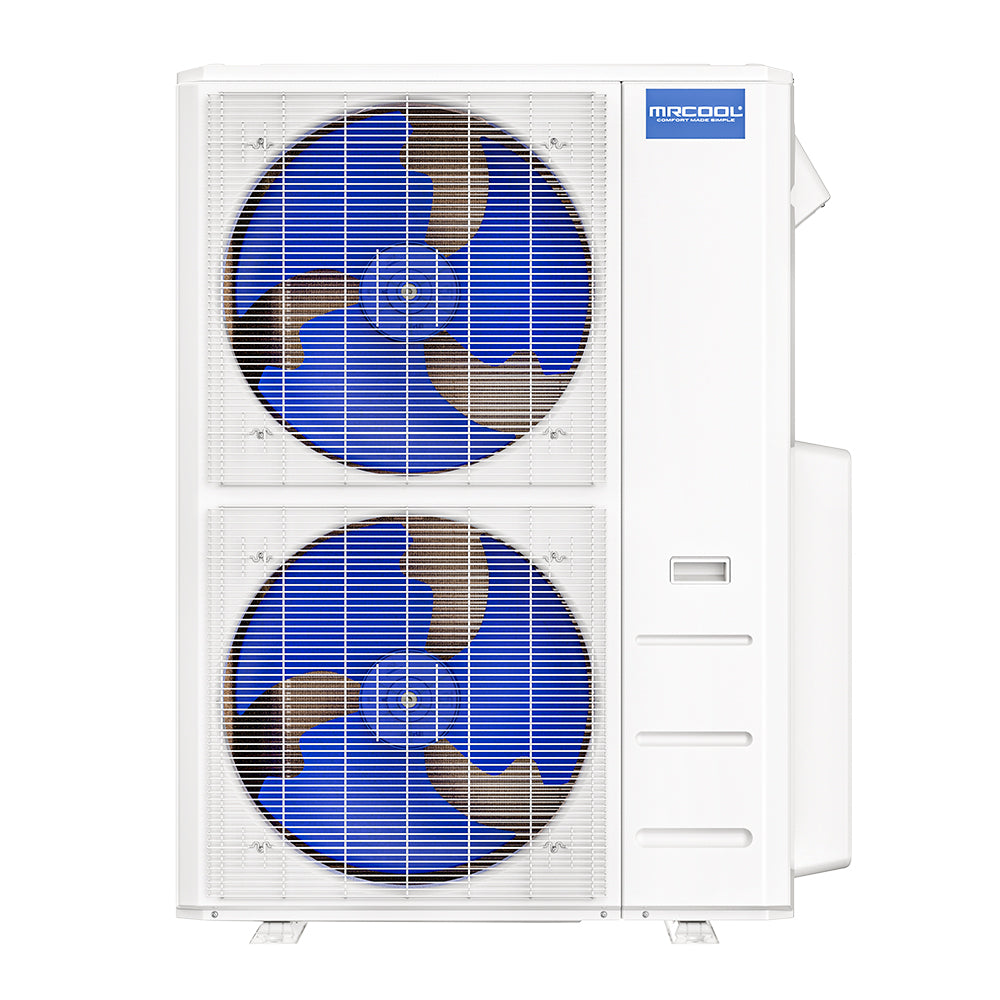

Unveiling the 5th Generation MRCOOL� DIY� 55k BTU Multi-Zone Ductless Mini-Split Condenser�our largest, most innovative, and feature-packed DIY� system to date. This energy-efficient unit is designed to heat and cool up to six separate zones, covering a total of 2,290 sq. ft. It�s a perfect whole-home solution, and best of all, you can install it yourself�no HVAC professional required. You�ll save time and money while gaining the satisfaction of a DIY project well done. Installation is fast and simple thanks to our patented pre-charged Quick Connect� line sets. These come pre-filled with R-454B, a next-generation refrigerant that is both eco-friendly and highly efficient. With a SEER2 rating of 22 and HSPF2-4 rating of 10.6, this system is built to keep your utility bills low while delivering powerful comfort all year long. After setup, you�ll enjoy total control over your home climate. Use the SmartHVAC app�available for iOS and Android�to manage individual zones, set schedules, adjust modes, and monitor energy usage from your phone. Want even more convenience? Connect your system to Amazon Alexa or Google Home for seamless voice control. Whether you're managing comfort in one room or all six zones, control is always nearby. Your investment is protected with one of the best warranties in the industry: a 5-year parts warranty, a 7-year compressor warranty, and eligibility for the MRCOOL� Care Program. For unmatched comfort, convenience, and DIY simplicity, choose the MRCOOL� DIY� 55k BTU Multi-Zone Ductless Mini-Split system.
Model: DIY-MULTI6-55HP230D-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th gen Multi-Zone Mini-splits
- MODEL: DIY-MULTI6-55HP230D-O
- GTIN: 00840255587488
- UPC: 840255587488
- SEER2: 22
- EER2: 12
- HSPF2-4: 10.6
- HSPF2-5: 8.5
- TONNAGE: 4.6
- COOLING CAPACITY (BTU): 47000
- HEATING CAPACITY (BTU): 55000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 45
- MIN CIRCUIT AMPACITY (A): 43
- COLOR: White
- ZONE CAPACITY: 6
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 151.68
- DECIBEL RATING (DBA): 64
- INVERTER: DC
- LINE SET LENGTH: 25
- MAX LINESET LENGTH (FT): 221.4
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: (3/8 X4) (1/2 X2)
- COMPRESSOR MOTOR TYPE: Rotary
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: No
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- UL LISTED: Yes
- ETL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5
- BASE COMPRESSOR WARRANTY: 7
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 16.34
- NET HEIGHT (IN): 52.48
- NET WIDTH (IN): 37.48
- NET WEIGHT (LBS): 245.81
- GROSS DEPTH (IN): 19.49
- GROSS HEIGHT (IN): 58.27
- GROSS WIDTH (IN): 43.11
- GROSS WEIGHT (LBS): 267.46
- BROCHURE: Open
