Description

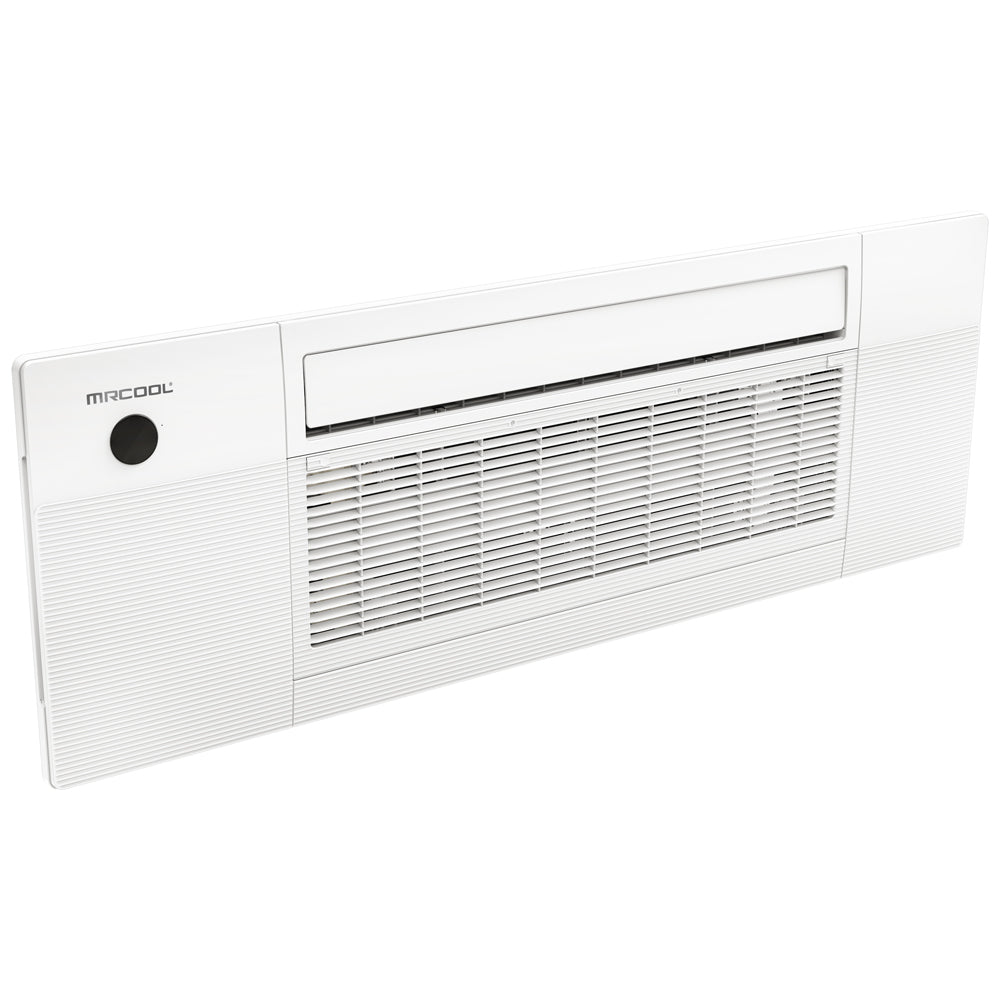

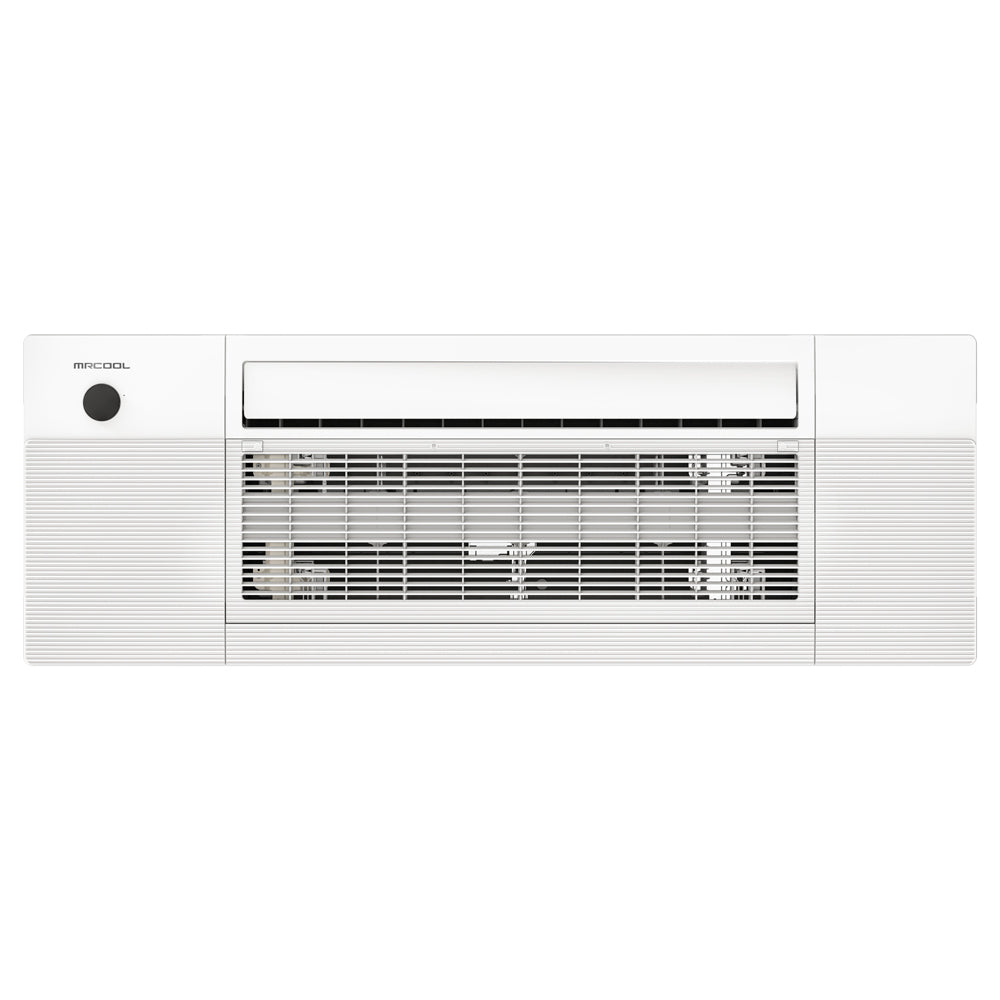

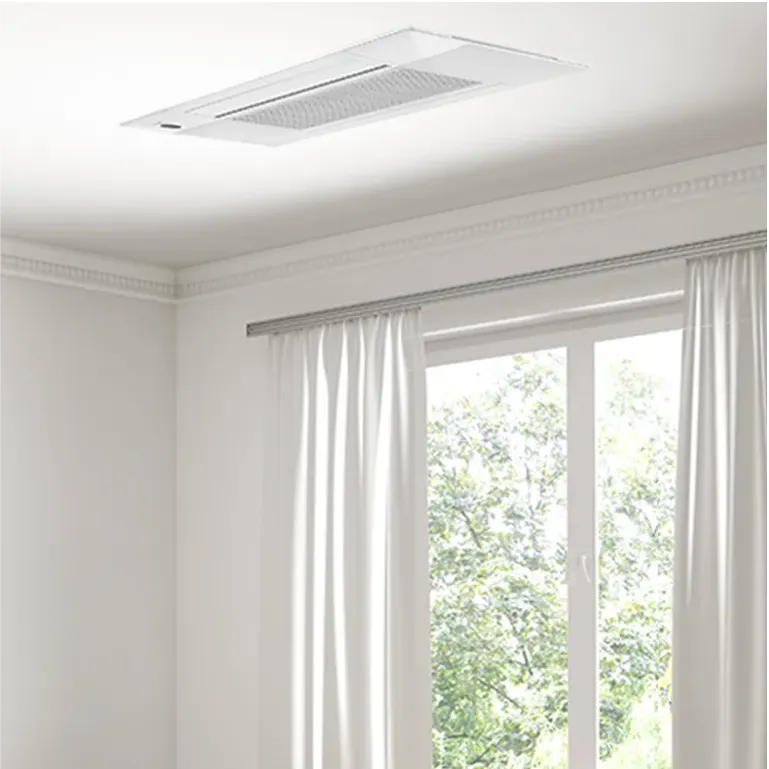

The 5th Generation MRCOOL� DIY� Series Outtasight� 12K BTU 230V One-Way Ceiling Cassette is a sleek, efficient, and space-saving climate solution for areas up to 550 sq. ft. Engineered for easy installation, it seamlessly integrates into multi-zone systems, making it ideal for both new constructions and retrofit projects without requiring ductwork or wall space. Designed for discreet placement, this cassette mounts flush between 16� ceiling joists, including pre-manufactured I-joists, providing a clean, modern appearance while maximizing room layout flexibility. It connects effortlessly to the MRCOOL� DIY� Quick Connect� line set, which comes pre-charged with R-454B, a more environmentally friendly refrigerant, eliminating the need for vacuuming and reducing installation time. With advanced filtration technology, this unit enhances indoor air quality, while the Elevation function lowers the filter panel for easy maintenance and cleaning. It operates quietly, ensuring a comfortable and peaceful environment in any room. The cassette is fully controllable through a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant, giving you ultimate convenience and customization. Backed by a 7-year compressor and 5-year parts warranty, with eligibility for the MRCOOL� Care Program, this system offers long-term dependability and year-round comfort.
Model: DIYCASSETTE12HP-230D25-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY 5th Gen OuttaSight
- MODEL: DIYCASSETTE12HP-230D25-O
- GTIN: 00840255587518
- UPC: 840255587518
- UNIT TYPE: Mini-Split
- WORKS WITH: DIY 5th Gen Systems
- CFM: 353 / 312 / 283 / 247 / 177
- VOLTAGE (V): 208-230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 3
- MOUNT TYPE: Ceiling
- COLOR: White
- RATED LOAD: 1
- MAX COVERAGE AREA: 550
- REFRIGERANT TYPE: R-454B
- DECIBEL RATING (DBA): 37
- DECIBEL RATING LOW (DBA): 24
- DECIBEL RATING HIGH (DBA): 41
- AIR FLOW DIRECTION: 1-Way
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 3/8
- BLOWER MOTOR RPM: 1075/982/797
- FILTER TYPE: Reusable
- FAN ONLY OPTION: Yes
- QUIET MODE: Yes
- SLEEP MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- BASE WARRANTY: 5-Year Part/7-Year Compressor
- BASE PARTS WARRANTY: 5 Years
- BASE COMPRESSOR WARRANTY: 7 Years
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS AEROSOL: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU;PR;VI
- NET DEPTH (IN): 13.19
- NET HEIGHT (IN): 8.98
- NET WIDTH (IN): 50.31
- NET WEIGHT (LBS): 45
- GROSS DEPTH (IN): 22.48
- GROSS HEIGHT (IN): 22.64
- GROSS WIDTH (IN): 57.6
- GROSS WEIGHT (LBS): 88
- BROCHURE: Open
- SPECS: Open
