Description

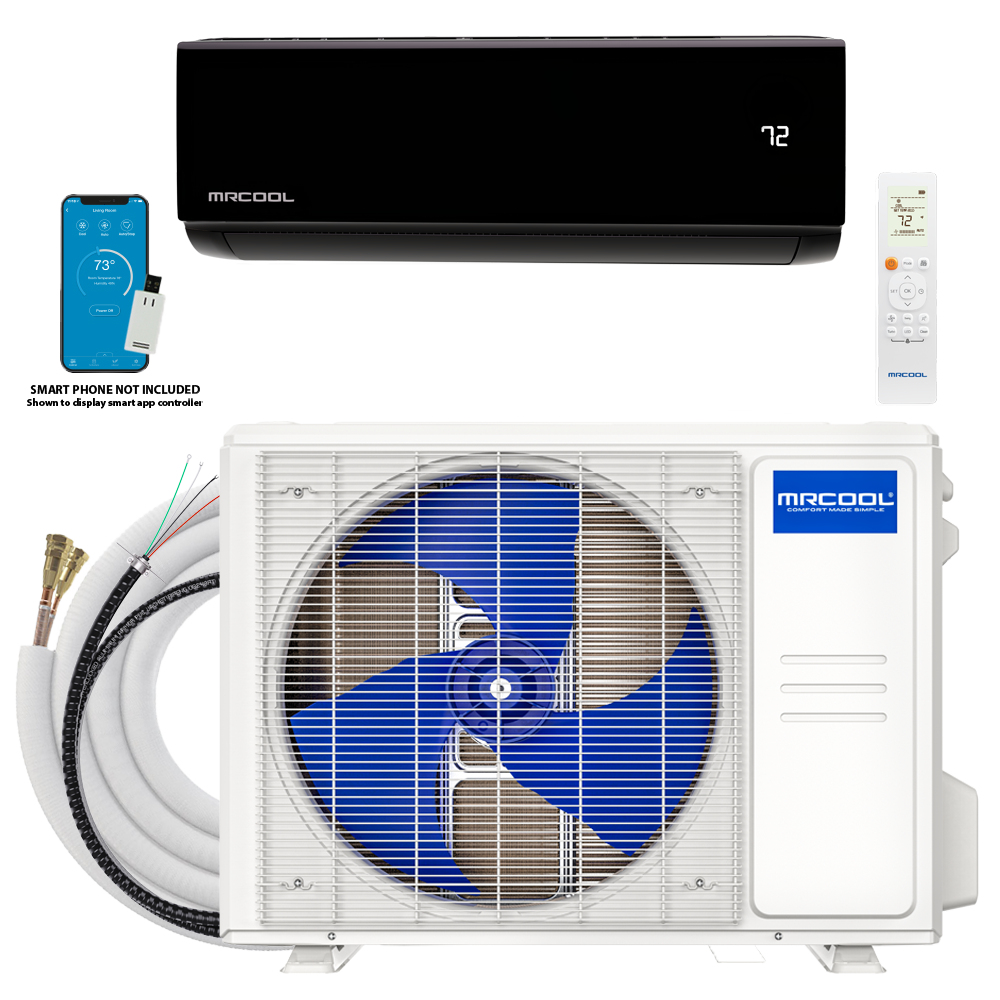

The MRCOOL� DIY� Select 9K BTU 115V Ductless Mini-Split Heat Pump Air Handler in black is designed to deliver efficient, dependable heating and cooling for spaces up to 400 square feet. Its sleek, modern finish and compact design make it a natural fit for bedrooms, home offices, studios, garages, and other small living areas. Whether enhancing an existing room or adding comfort to a new space, it provides consistent year-round performance while helping reduce energy usage and utility costs. Engineered as part of the MRCOOL� DIY� lineup, this system is built for true do-it-yourself installation. It pairs with Quick Connect� line sets that come factory pre-charged with R-454B refrigerant, eliminating the need for vacuum pumps, specialized tools, or refrigerant handling. This significantly simplifies installation, saving time and reducing overall project costs. The included 13-foot DIYPRO� cable further streamlines setup by removing the need for electrical conduit while protecting wiring from moisture, pests, and outdoor exposure. Control is simple and flexible with the included remote or the MRCOOL� Comfort app, allowing users to adjust settings, create schedules, and monitor energy use from anywhere. Voice control compatibility with Amazon Alexa and Google Assistant adds convenience. Comfort features like Dry Mode, Sleep Mode, and Auto Mode help maintain a balanced indoor environment while optimizing efficiency. This system is made for long-term durability. Backed by a 2-year compressor and 1-year parts warranty, it offers a reliable, cost-effective comfort solution.
Model: DIYS-09-HP-B-WMAH-115A13-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY Select
- MODEL: DIYS-09-HP-B-WMAH-115A13-O
- GTIN: 00840433619918
- UPC: 840433619918
- UNIT TYPE: Mini-Split
- EQUIPMENT TYPE: Air Handler
- CFM: 312.0 / 235.4 / 170.7 / 135.4
- TONNAGE: 0.75
- VOLTAGE (V): 115
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 3
- COLOR: Black
- MAX COVERAGE AREA: 400 sq. ft.
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- DECIBEL RATING LOW (DBA): 18
- DECIBEL RATING HIGH (DBA): 43
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 3/8
- BLOWER MOTOR TYPE: DC
- BLOWER MOTOR RPM: 1050/810/690
- FILTER TYPE: Reusable
- ADJUSTABLE THERMOSTAT: Yes
- FAN ONLY OPTION: Yes
- SLEEP MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- BASE WARRANTY: 1 Year Parts
- BASE PARTS WARRANTY: 1 Year Parts
- BASE REMOTE WARRANTY: 1 Year
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 7.87
- NET HEIGHT (IN): 11.5
- NET WIDTH (IN): 28.7
- NET WEIGHT (LBS): 23.81
- GROSS DEPTH (IN): 13.97
- GROSS HEIGHT (IN): 16.34
- GROSS WIDTH (IN): 36.02
- GROSS WEIGHT (LBS): 33.95
- BROCHURE: Open
