Description

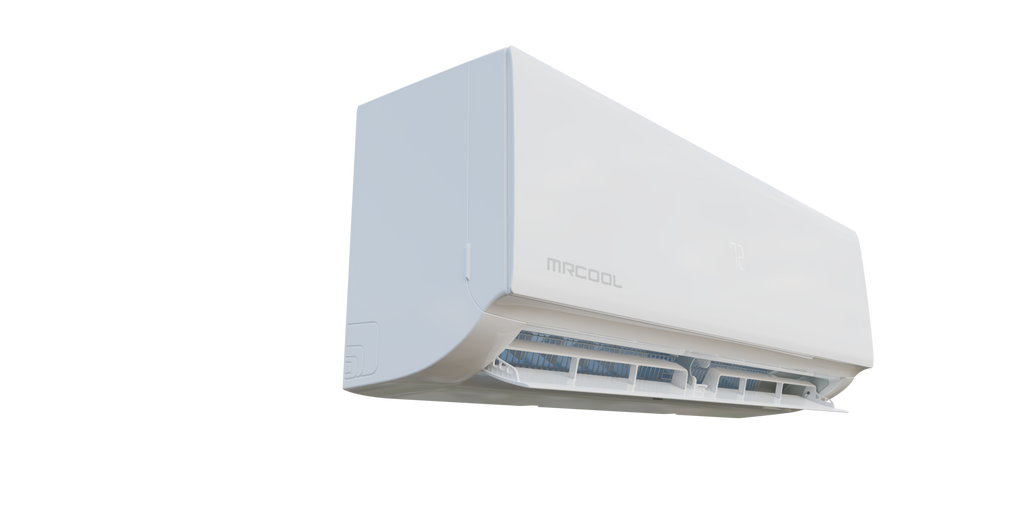

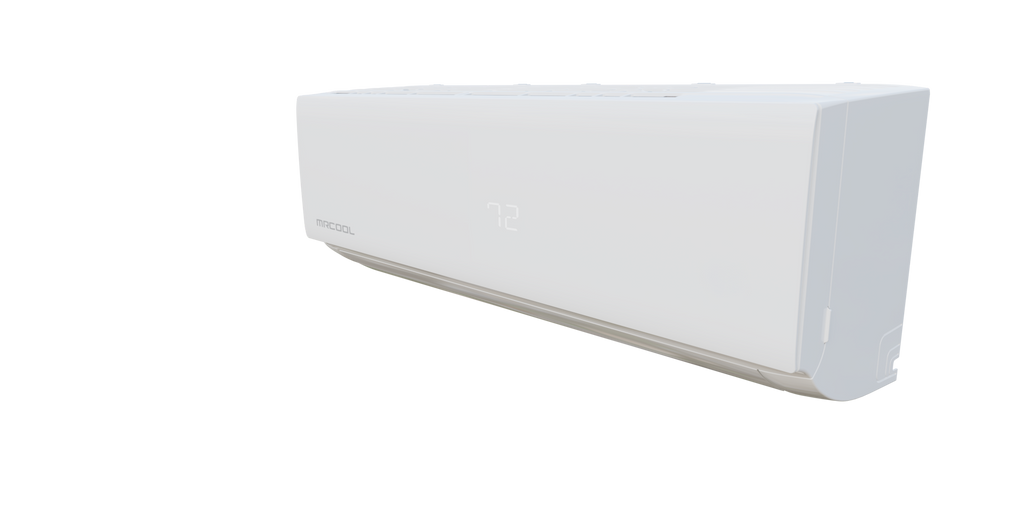

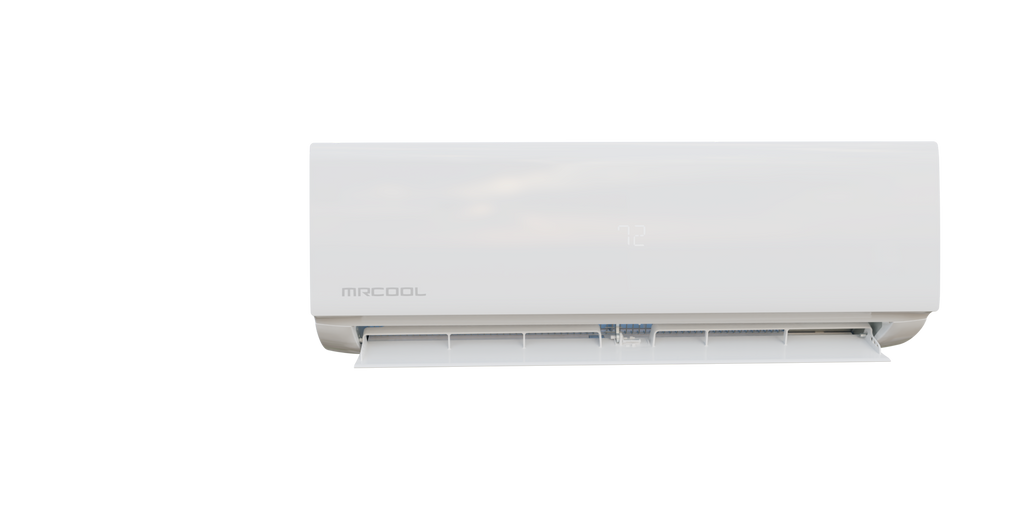

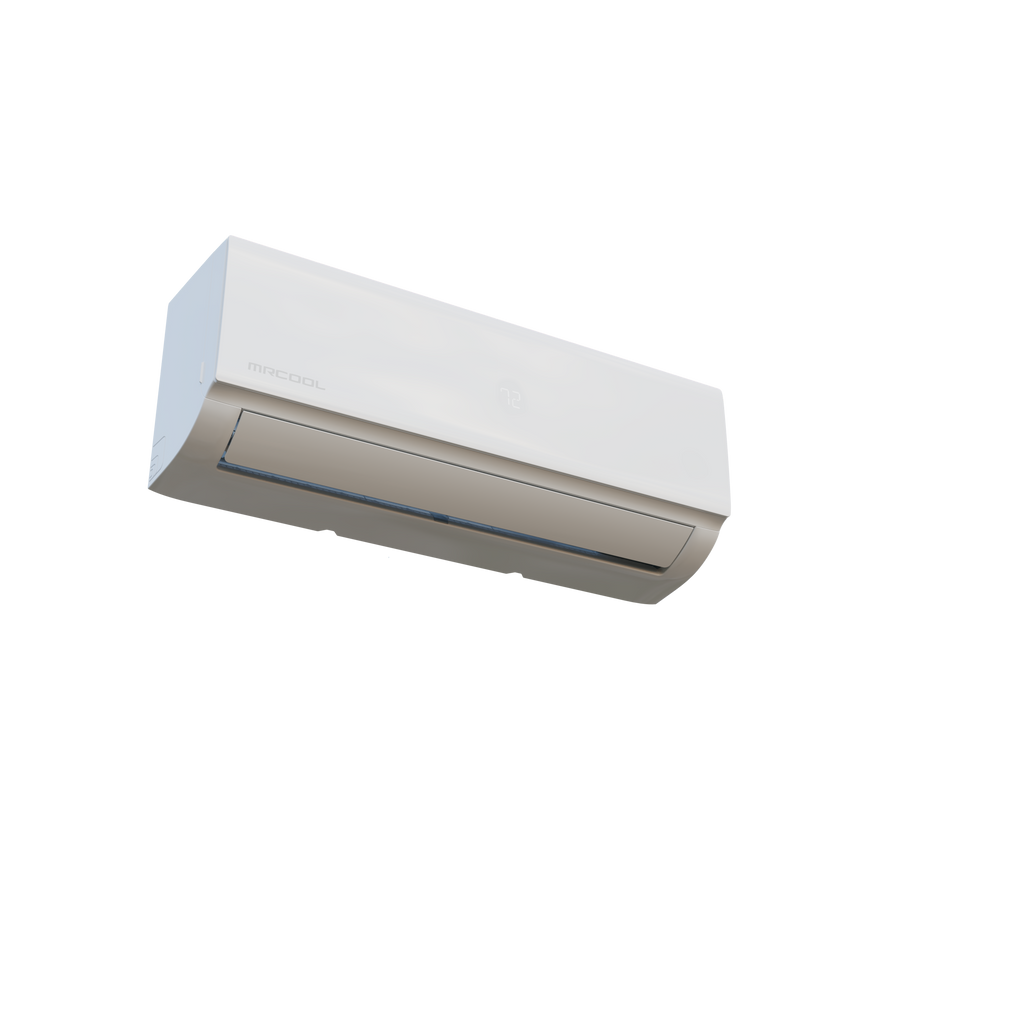

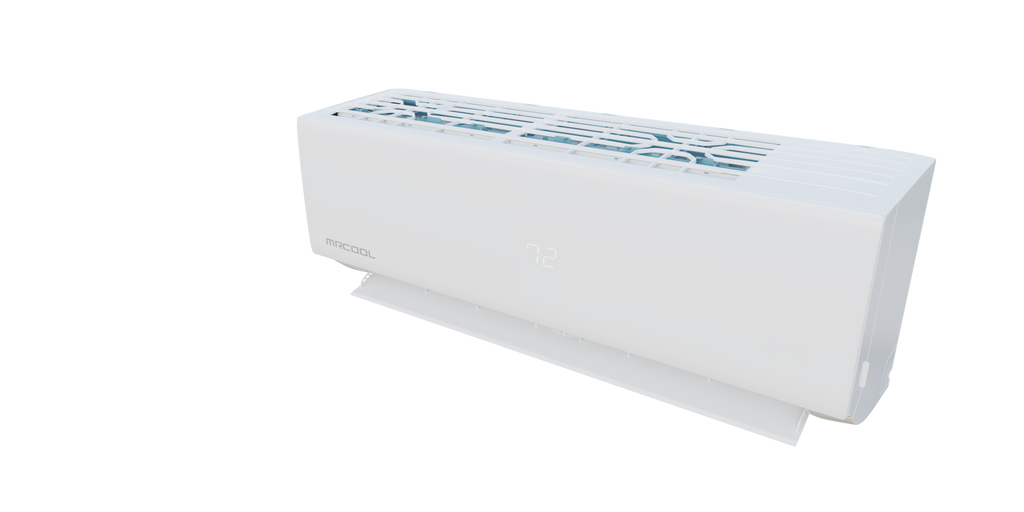

The MRCOOL� DIY� Select 18K BTU 230V Ductless Mini-Split Heat Pump Air Handler delivers efficient, reliable heating and cooling for spaces up to 800 square feet. Ideal for garages, attics, basements, and bonus rooms, it provides consistent year-round comfort with simple operation and high efficiency. Designed within the MRCOOL� DIY� lineup, this system supports true do-it-yourself installation. The compatible Quick Connect� line set comes factory pre-charged with environmentally friendly R-454B, eliminating the need for vacuum pumps or refrigerant handling. Additionally, the included 13-foot DIYPRO� cable replaces traditional electrical conduit, streamlining installation while safeguarding wiring from moisture, pests, and everyday wear. Control your comfort easily with the included wireless remote or the MRCOOL� Comfort app, which allows you to adjust temperatures, set schedules, and monitor energy usage from anywhere. Compatibility with Amazon Alexa and Google Assistant enables convenient hands-free voice control. Advanced features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling enhance comfort while optimizing efficiency. A Gold Fin� condenser coating adds corrosion resistance, making the system well-suited for humid or coastal environments. The MRCOOL� DIY� Select 18K includes a 2-year compressor warranty and 1-year parts warranty.
Model: DIYS-18-HP-WMAH-230A13-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY Select
- MODEL: DIYS-18-HP-WMAH-230A13-O
- GTIN: 00840255595636
- UPC: 840255595636
- UNIT TYPE: Mini-Split
- EQUIPMENT TYPE: Air Handler
- CFM: 470.9 / 400.2 / 329.6 / 270.8
- TONNAGE: 1.5
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 3
- COLOR: White
- MAX COVERAGE AREA: 800 sq. ft.
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- DECIBEL RATING LOW (DBA): 18.5
- DECIBEL RATING HIGH (DBA): 46.5
- LIQUID LINE SIZE: 1/4
- SUCTION LINE SIZE: 1/2
- BLOWER MOTOR TYPE: DC
- BLOWER MOTOR RPM: 1200/1000/900
- FILTER TYPE: Reusable
- ADJUSTABLE THERMOSTAT: Yes
- FAN ONLY OPTION: Yes
- SLEEP MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- BASE WARRANTY: 1 Year Parts
- BASE PARTS WARRANTY: 1 Year Parts
- BASE REMOTE WARRANTY: 1 Year
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 8.98
- NET HEIGHT (IN): 12.64
- NET WIDTH (IN): 38.23
- NET WEIGHT (LBS): 30.64
- GROSS DEPTH (IN): 14.09
- GROSS HEIGHT (IN): 17.68
- GROSS WIDTH (IN): 46.73
- GROSS WEIGHT (LBS): 44.97
- VIDEO 1: Open
- BROCHURE: Open
