Description

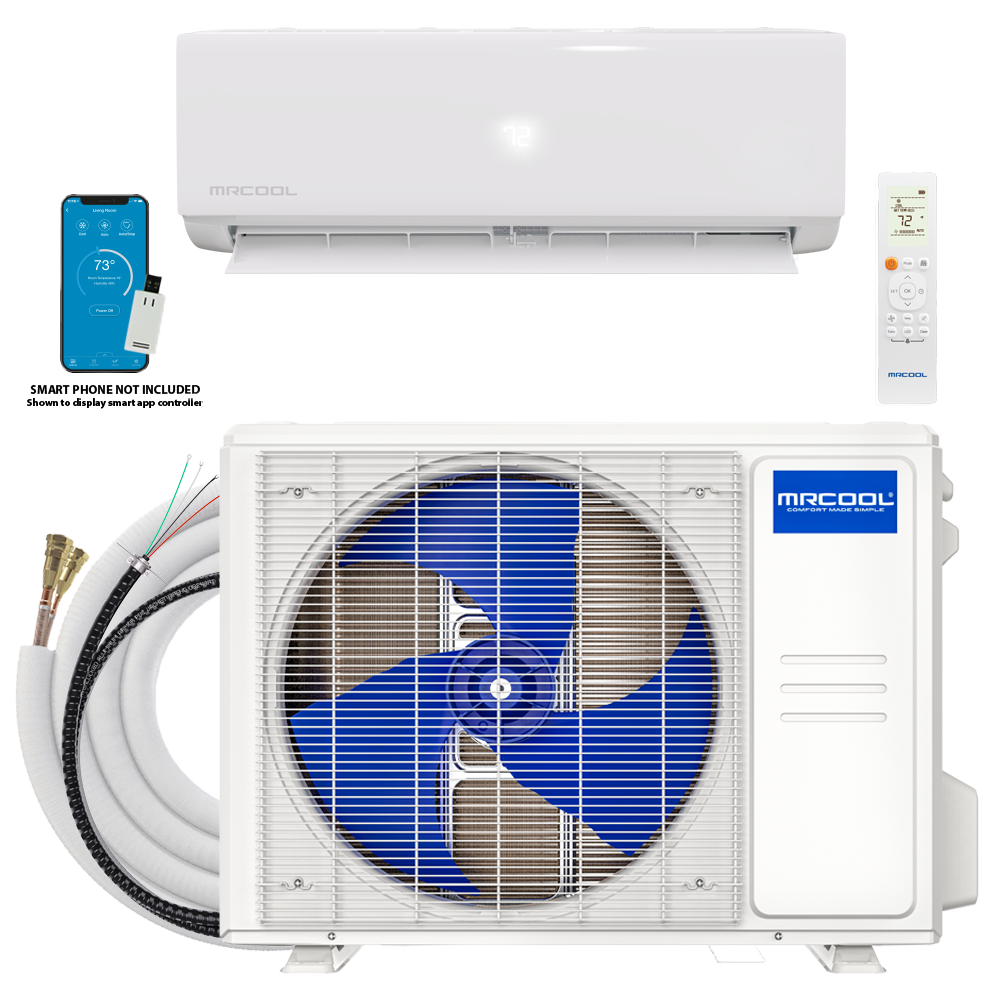

Installing your own HVAC system is easy with the MRCOOL� DIY� Select 24K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser, designed specifically for homeowners. Built for true do-it-yourself installation, it requires no specialized tools, HVAC certifications, or prior experience. Ideal for living rooms, open-concept spaces, large basements, and bonus rooms, it delivers reliable heating and cooling for areas up to 1,050 square feet. The system combines strong performance with energy efficiency, offering a 16.5 SEER2 cooling rating and an 8.3 HSPF2-4 heating rating for consistent, year-round comfort while helping reduce energy costs. Installation is simplified with an 11.5-foot Quick Connect� line set that arrives factory pre-charged with environmentally friendly R-454B refrigerant, eliminating vacuum pumps and refrigerant handling. Most components are included, making setup fast and approachable�even for first-time installers. Comfort control is simple using the included wireless remote or the MRCOOL� Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Features like Sleep Mode, Dry Mode, Auto, and a Gold Fin� condenser coating enhance comfort and durability, even in humid or coastal environments. For added peace of mind, the MRCOOL� DIY� Select system comes with a 2-year compressor warranty and a 1-year parts warranty. This strong, industry-leading coverage demonstrates the pride and confidence MRCOOL has in the craftsmanship and performance of every unit they produce.
Model: DIYS-24-HP-C-230A11-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY Select
- MODEL: DIYS-24-HP-C-230A11-O
- GTIN: 00840255595698
- UPC: 840255595698
- UNIT TYPE: Mini-Split
- EQUIPMENT TYPE: Condenser
- SEER2: 16.5
- EER2: 8.6
- HSPF2-4: 8.3
- HSPF2-5: 6.3
- TONNAGE: 2
- COOLING CAPACITY (BTU): 23000
- HEATING CAPACITY (BTU): 23000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 20
- MIN CIRCUIT AMPACITY (A): 19
- COLOR: White
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 50.44
- DECIBEL RATING (DBA): 61
- INVERTER: Yes
- LINESET INCLUDED: Yes
- LINE SET LENGTH: 11.5 ft.
- MAX LINESET LENGTH (FT): 75 ft.
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- COMPRESSOR MOTOR TYPE: Rotary
- CONDENSER FAN MOTOR TYPE: DC
- CONDENSER FAN MOTOR RPM: 830/700/550
- METERING DEVICE: EEV
- UL LISTED: No
- CSA LISTED: No
- ETL LISTED: No
- ENERGY STAR CERTIFIED: No
- AHRI CERTIFIED: Yes
- BASE WARRANTY: 1 Year Parts, 2 Years Compressor
- BASE PARTS WARRANTY: 1 Year Parts
- BASE COMPRESSOR WARRANTY: 2 Years Compressor
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 13.46
- NET HEIGHT (IN): 26.5
- NET WIDTH (IN): 35.04
- NET WEIGHT (LBS): 95.9
- GROSS DEPTH (IN): 19.88
- GROSS HEIGHT (IN): 35.03
- GROSS WIDTH (IN): 42.91
- GROSS WEIGHT (LBS): 117.73
- VIDEO 1: Open
- BROCHURE: Open
