Description

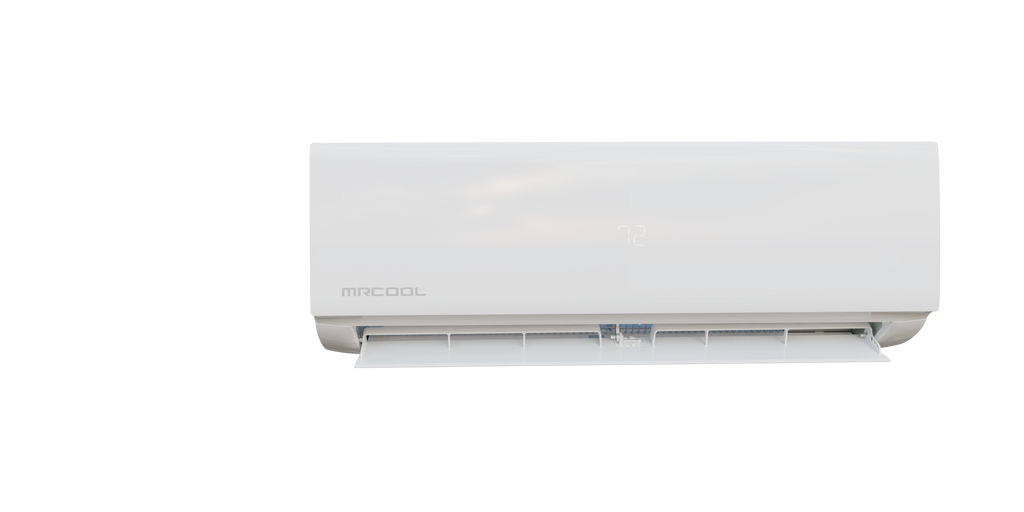

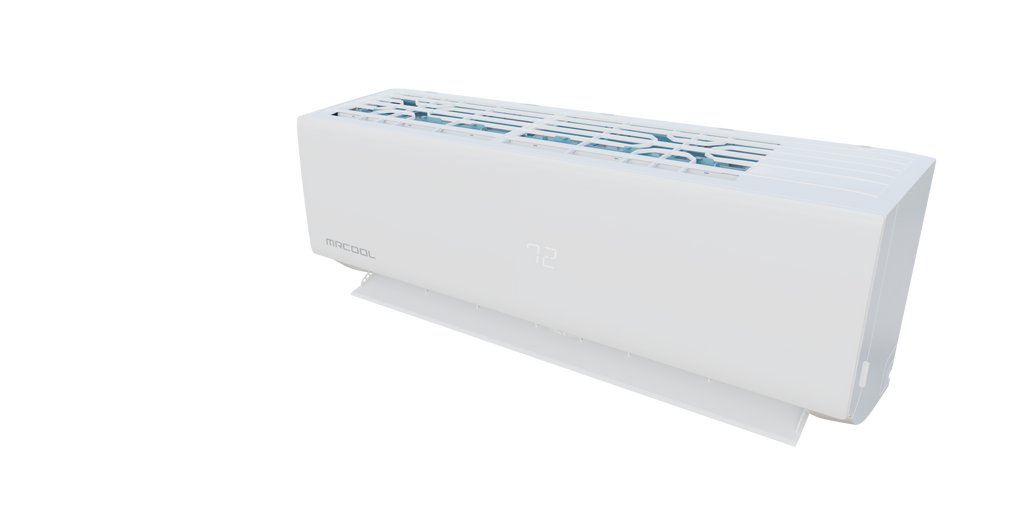

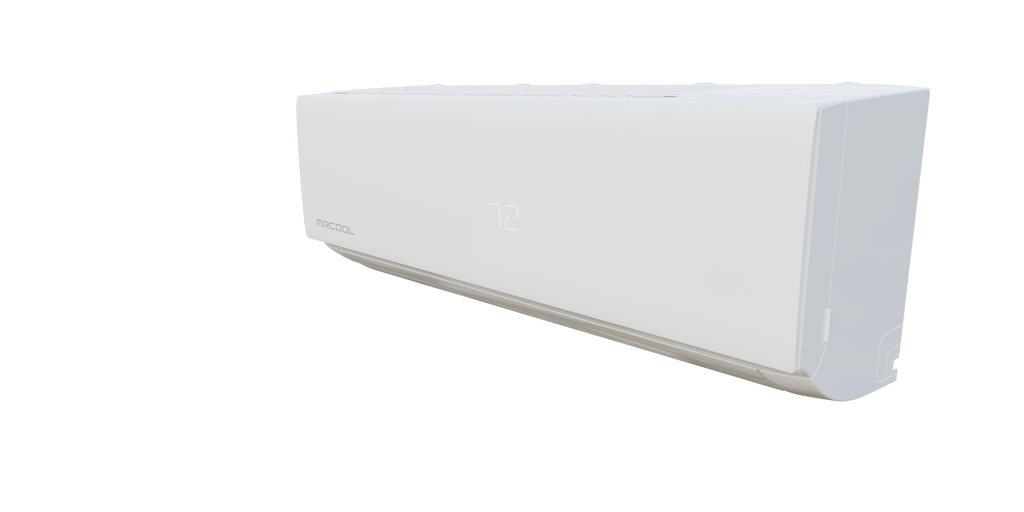

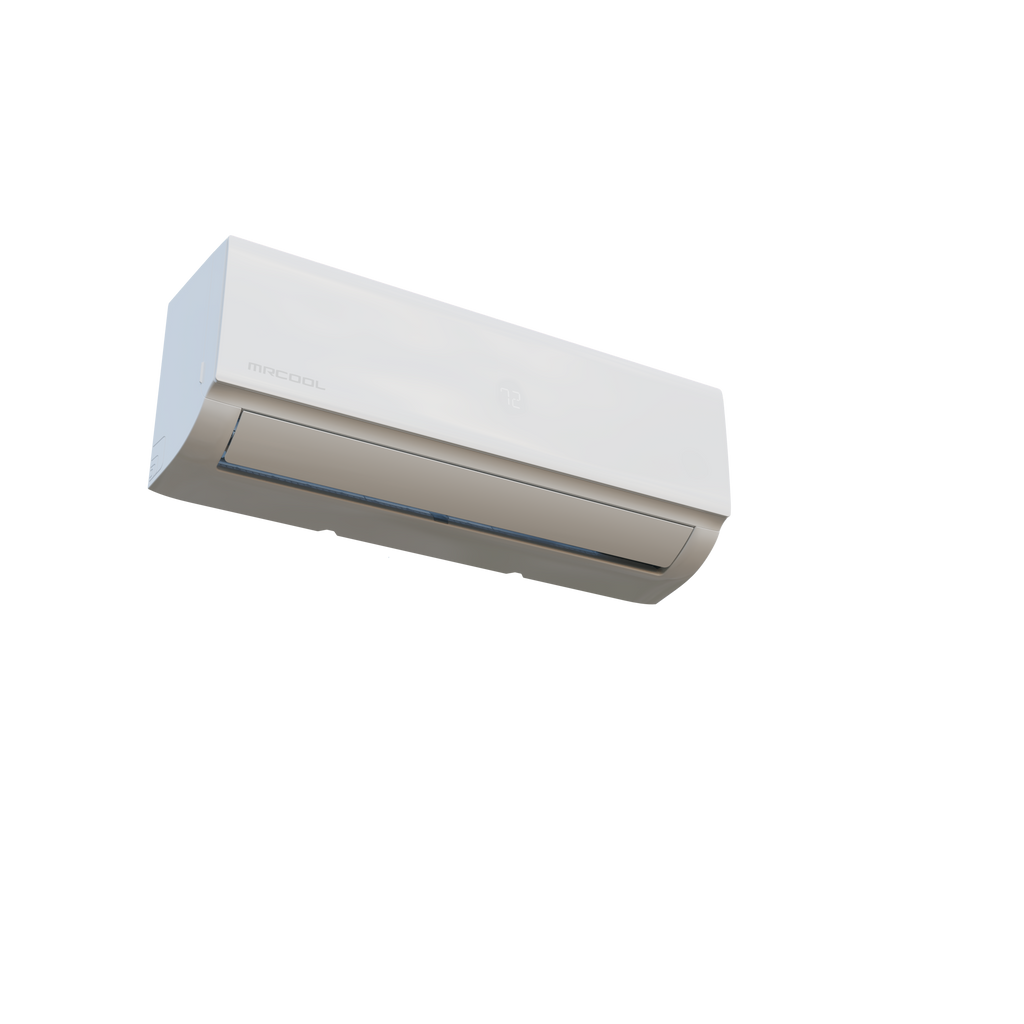

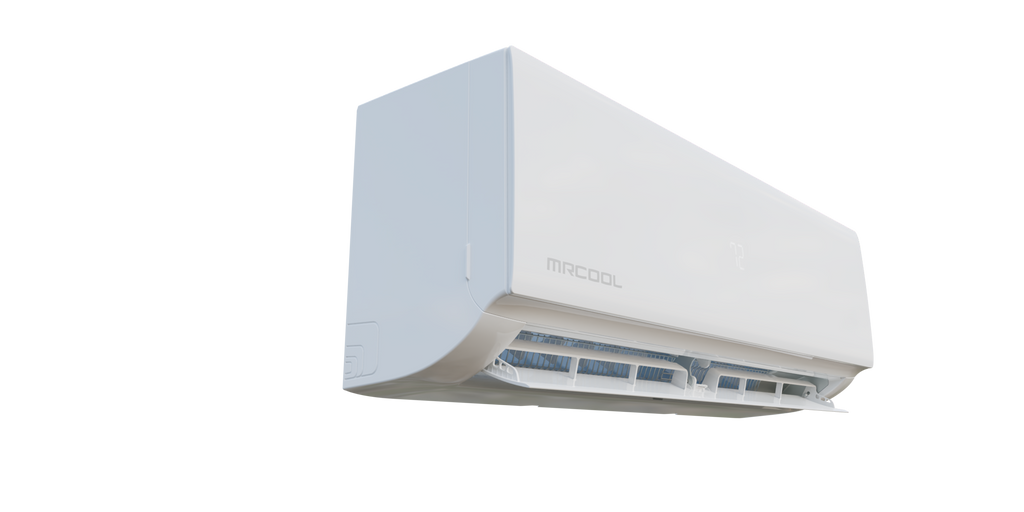

The MRCOOL� DIY� Select 24K BTU 230V Ductless Mini-Split Heat Pump Air Handler provides efficient, dependable heating and cooling for spaces up to 1,050 square feet. Ideal for living rooms, open-concept areas, large basements, and bonus rooms, it delivers consistent year-round comfort while helping reduce energy usage and operating costs. Engineered as part of the MRCOOL� DIY� lineup, this unit is designed for true do-it-yourself installation. The compatible Quick Connect� line set is factory pre-charged with environmentally friendly R-454B, eliminating the need for vacuum pumps or refrigerant handling. Additionally, the DIYPRO� cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear. Comfort control is simple and flexible using the included wireless remote or the MRCOOL� Comfort app, which allows you to adjust temperatures, set schedules, and monitor energy usage from anywhere. Voice-control compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling enhance comfort while improving efficiency. A Gold Fin� condenser coating provides added corrosion resistance for long-term durability, even in humid or coastal environments. The MRCOOL� DIY� Select 24K includes a 2-year compressor warranty and 1-year parts warranty.
Model: DIYS-24-HP-WMAH-230A13-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: DIY Select
- MODEL: DIYS-24-HP-WMAH-230A13-O
- GTIN: 00840255595643
- UPC: 840255595643
- UNIT TYPE: Mini-Split
- EQUIPMENT TYPE: Air Handler
- CFM: 729.9 / 547.4 / 400.2 / 329.6
- TONNAGE: 2
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 3
- COLOR: White
- MAX COVERAGE AREA: 1050 sq. ft.
- ZONE CAPACITY: 1
- REFRIGERANT TYPE: R-454B
- DECIBEL RATING LOW (DBA): 21.5
- DECIBEL RATING HIGH (DBA): 51.5
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- BLOWER MOTOR TYPE: DC
- BLOWER MOTOR RPM: 1100/940/780
- FILTER TYPE: Reusable
- ADJUSTABLE THERMOSTAT: Yes
- FAN ONLY OPTION: Yes
- SLEEP MODE: Yes
- AUTO COOL: Yes
- WIFI COMPATIBILITY: Yes
- APP COMPATIBILITY: Yes
- WORKS WITH IOS: Yes
- WORKS WITH ANDROID: Yes
- REMOTE CONTROL INCLUDED: Yes
- BASE WARRANTY: 1 Year Parts
- BASE PARTS WARRANTY: 1 Year Parts
- BASE REMOTE WARRANTY: 1 Year
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 9.21
- NET HEIGHT (IN): 13.27
- NET WIDTH (IN): 42.6
- NET WEIGHT (LBS): 35.49
- GROSS DEPTH (IN): 14.09
- GROSS HEIGHT (IN): 17.68
- GROSS WIDTH (IN): 46.73
- GROSS WEIGHT (LBS): 49.6
- VIDEO 1: Open
- BROCHURE: Open
