Description

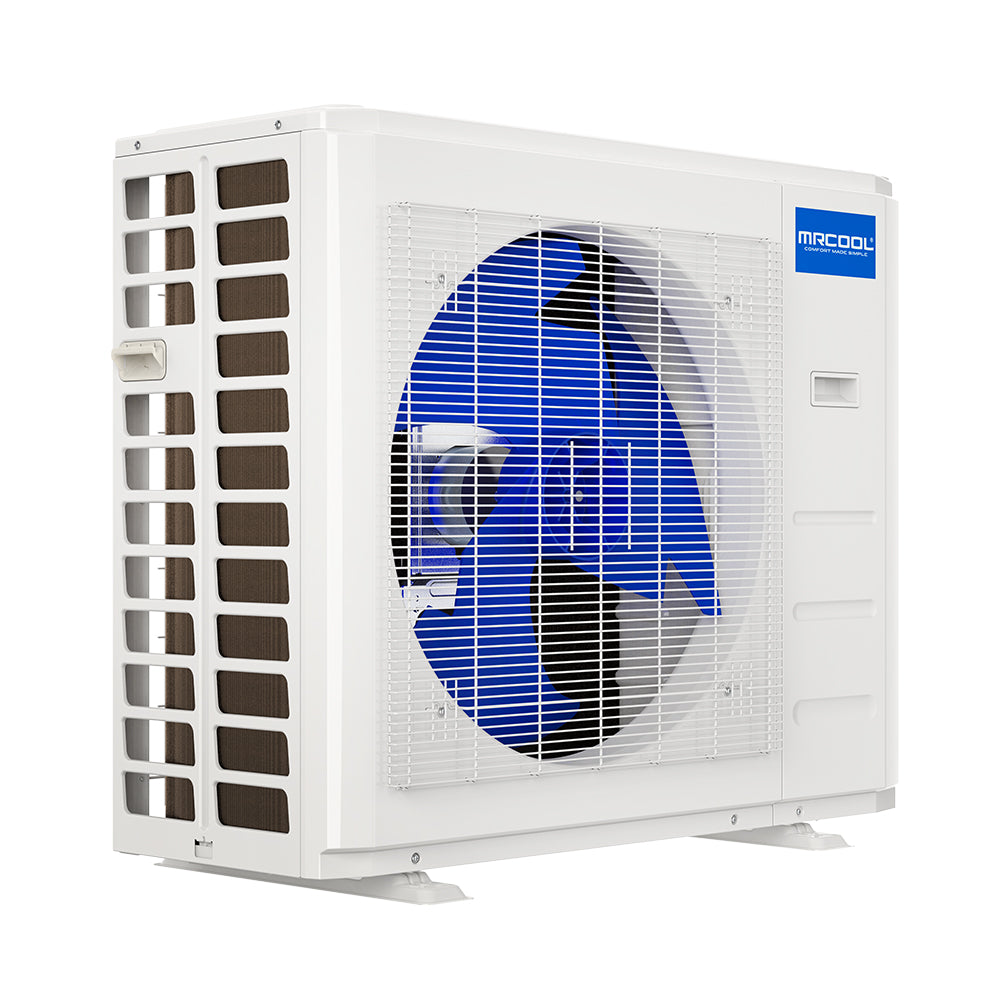

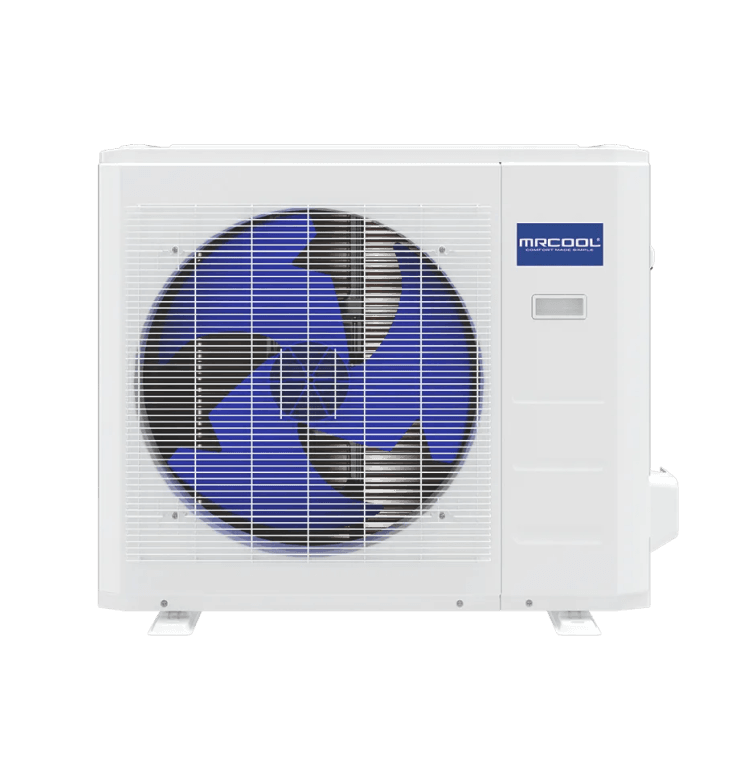

The MRCOOL� OLYMPUS E-STAR� 24k Series condenser is a powerful and efficient solution for heating and cooling areas up to 1,050 square feet, making it perfect for medium to large rooms, home offices, garages, and more. Its compact size simplifies installation, even in limited or unique spaces. Equipped with Wi-Fi and the MRCOOL� Smart HVAC app, you can control your system from anywhere using your smartphone or tablet. For those who prefer more direct control, the included remote control provides quick access to all settings. This air handler is designed with energy efficiency in mind, offering excellent SEER2 and EER2 ratings of 23 and 14, respectively, along with a HSPF2-4 rating of 11.7. These features help you save on energy bills while maintaining consistent and comfortable temperatures. The outdoor fan operates quietly at just 51.5 dB, ensuring minimal noise and disruption. The system uses R-454B refrigerant, an environmentally friendly choice that delivers optimal performance while helping to reduce the system's carbon footprint. In addition, the MRCOOL� OLYMPUS E-STAR� 24k Series is compatible with voice control through Amazon Alexa and Google Assistant, allowing you to adjust settings hands-free. The unit is backed by a 7-year compressor coverage and a 5-year parts warranty, ensuring durable performance, cutting-edge features, and lasting peace of mind.
Model: O-ES-24-HP-C-230C-O1
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: Olympus 4th Gen Single-Zone Condensers
- MODEL: O-ES-24-HP-C-230C-O1
- GTIN: 00840255587655
- UPC: 840255587655
- UNIT TYPE: Mini-Split
- WORKS WITH: O-24-HP-WMAH-230C-O DUCT-24HP-230B-O CASSETTE24HP-230C-O
- SEER2: Up to 21
- EER2: Up to 13
- HSPF2-4: 13.5
- HSPF2-5: 9.8
- TONNAGE: 2
- COOLING CAPACITY (BTU): 24000
- HEATING CAPACITY (BTU): 29000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 25
- MIN CIRCUIT AMPACITY (A): 24.9
- COLOR: White
- MAX COVERAGE AREA: Up to 1050
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 63.49
- DECIBEL RATING (DBA): 61.5
- INVERTER: DC
- MAX LINESET LENGTH (FT): 164
- LINESET FITTING TYPE: Flare
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 5/8
- COMPRESSOR MOTOR TYPE: Rotary
- CONDENSER FAN MOTOR RPM: 950/800/500
- METERING DEVICE: EXV + Throttle Valve
- UL LISTED: Yes
- CSA LISTED: Yes
- ETL LISTED: Yes
- ENERGY STAR CERTIFIED: Yes
- AHRI CERTIFIED: Yes
- BASE PARTS WARRANTY: 5-Year
- BASE COMPRESSOR WARRANTY: 7-Year
- BASE REMOTE WARRANTY: 5 Year
- HAS BATTERIES: Yes
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- RESTRICTED STATES: GU, PR, VI
- NET DEPTH (IN): 16.14
- NET HEIGHT (IN): 31.89
- NET WIDTH (IN): 37.24
- NET WEIGHT (LBS): 130.29
- GROSS DEPTH (IN): 19.69
- GROSS HEIGHT (IN): 34.45
- GROSS WIDTH (IN): 42.91
- GROSS WEIGHT (LBS): 141.31
- BROCHURE: Open
