Description

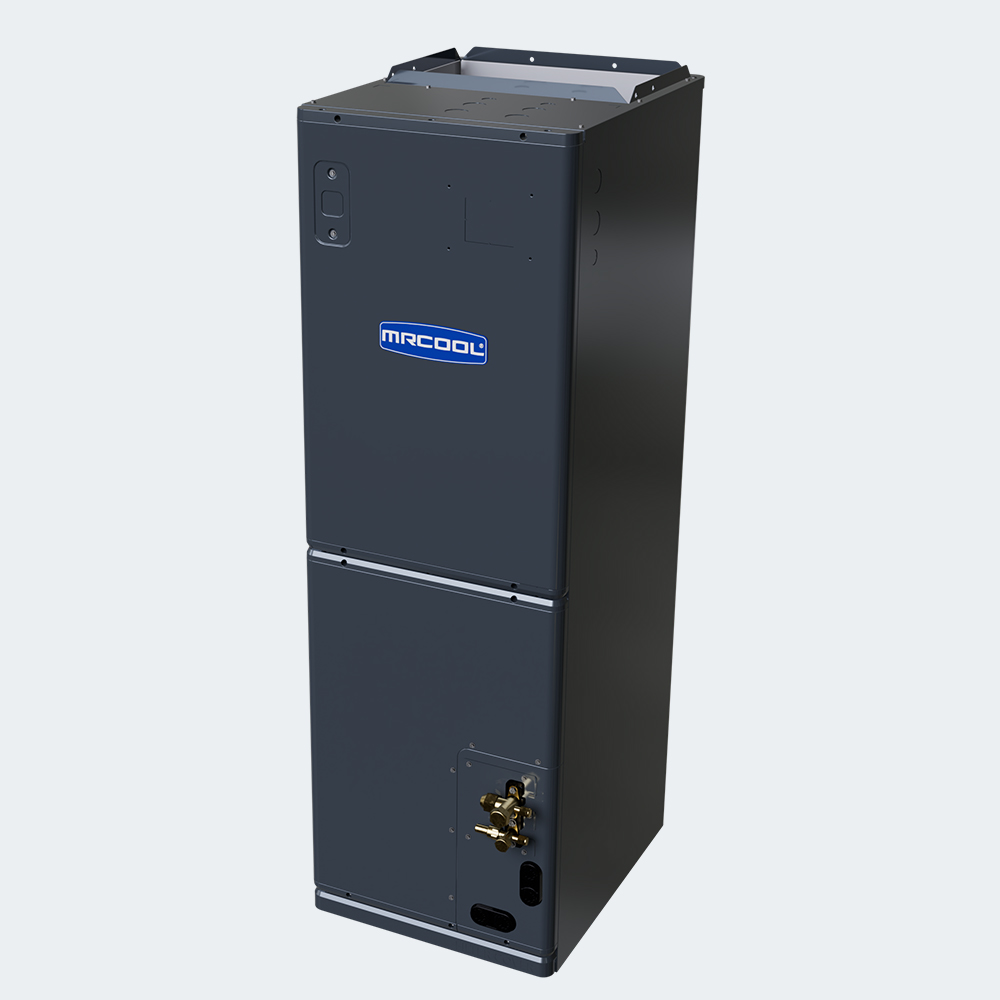

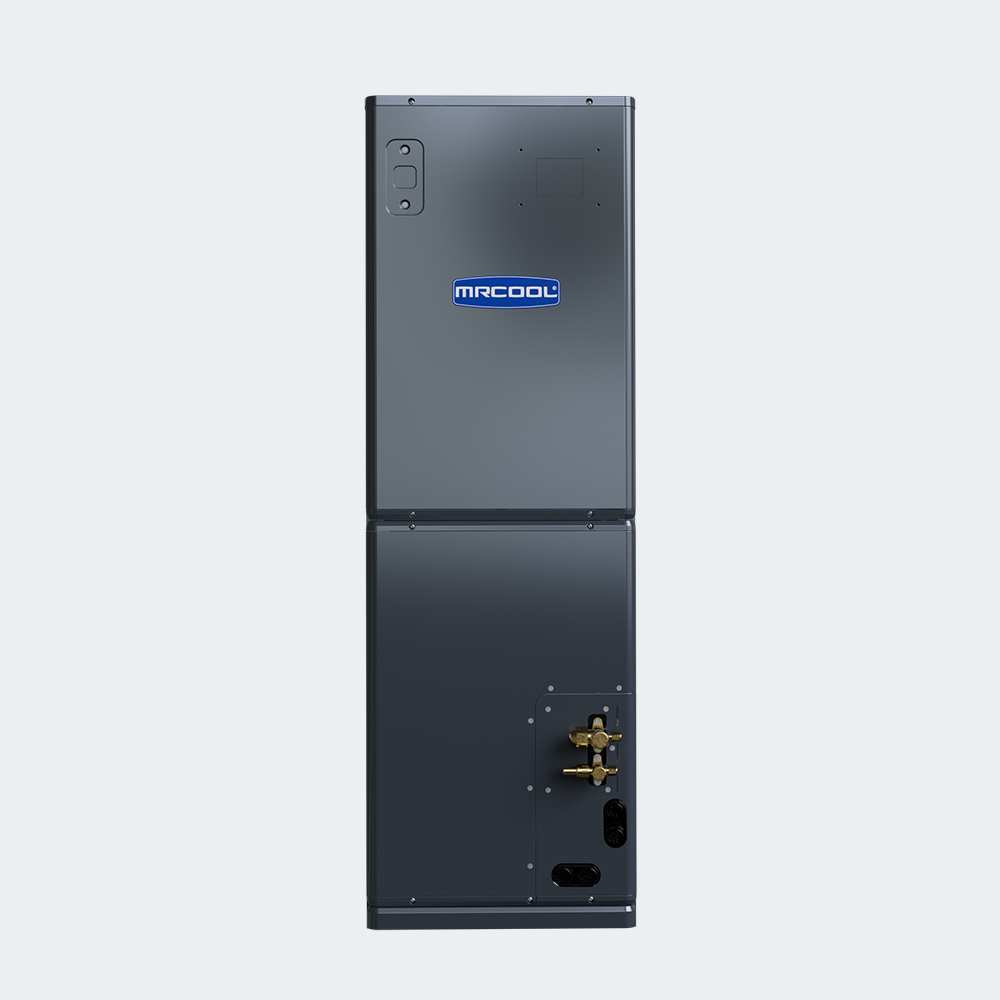

The MRCOOL� Universal� Series 24K Air Handler is built to deliver powerful, reliable, and energy-efficient comfort all year long. Whether you�re facing freezing winters or scorching summers, this compact unit works hard to maintain your ideal indoor temperature while reducing overall energy consumption�helping to lower monthly utility bills. Designed with flexibility in mind, the 24K Air Handler supports upflow, downflow, and horizontal installations. Its slim profile makes it easy to install in a variety of spaces, including attics, closets, and crawlspaces. For added convenience, it�s compatible with the MRCOOL� NO-VAC� Quick Connect� line set (sold separately), which eliminates the need for vacuuming or flaring�streamlining installation and saving time. To enhance performance during colder months, the unit also supports optional Universal� Series Heat Kits. These kits provide additional heating capacity and emergency backup heat when needed, boosting efficiency in extreme climates. At the heart of the air handler is an M-shaped evaporator coil with a large surface area that improves airflow and maximizes heat exchange. Made from 100% aluminum, the coil is corrosion-resistant for long-lasting durability. Despite its powerful performance, the unit operates at whisper-quiet sound levels, ensuring comfort without disruption. Backed by a 10-year parts warranty and a 2-year limited labor warranty, the MRCOOL� Universal� 24K Air Handler is a smart, dependable choice for homeowners looking to upgrade to efficient, long-lasting HVAC technology.
Model: UAH18024-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: Universal R-454B
- MODEL: UAH18024-O
- GTIN: 00840255587822
- UPC: 840255587822
- UNIT TYPE: Universal Series Air Handler
- CFM: 824/759.3/694.5/629.8/N\A
- TONNAGE: 2
- VOLTAGE (V): 115/208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 5.5/3.5
- MOUNT TYPE: Multi-Position
- COLOR: Dark Grey
- REFRIGERANT TYPE: R-454B
- DECIBEL RATING (DBA): N\A/47.5/44/33/N\A
- DECIBEL RATING LOW (DBA): 33
- DECIBEL RATING HIGH (DBA): 47.5
- NUMBER OF SPEEDS: 4
- MAX LINESET LENGTH (FT): 164
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 3/4
- FILTER TYPE: Replaceable
- FILTER SIZE: 12 x 20 x 1
- METERING DEVICE: EXV
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: Yes
- AUXILIARY HEATER SIZES: 5 KW / 8 KW / 10 KW / 15 KW
- UL LISTED: Yes
- CSA LISTED: Yes
- ETL LISTED: Yes
- BASE WARRANTY: 10 Year Parts
- BASE PARTS WARRANTY: 10 Years
- BASE LABOR WARRANTY: 2 Year
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 21.5
- NET HEIGHT (IN): 49.72
- NET WIDTH (IN): 14.49
- NET WEIGHT (LBS): 123.02
- GROSS DEPTH (IN): 31.1
- GROSS HEIGHT (IN): 52.95
- GROSS WIDTH (IN): 17.52
- GROSS WEIGHT (LBS): 154.76
- BROCHURE: Open
