Description

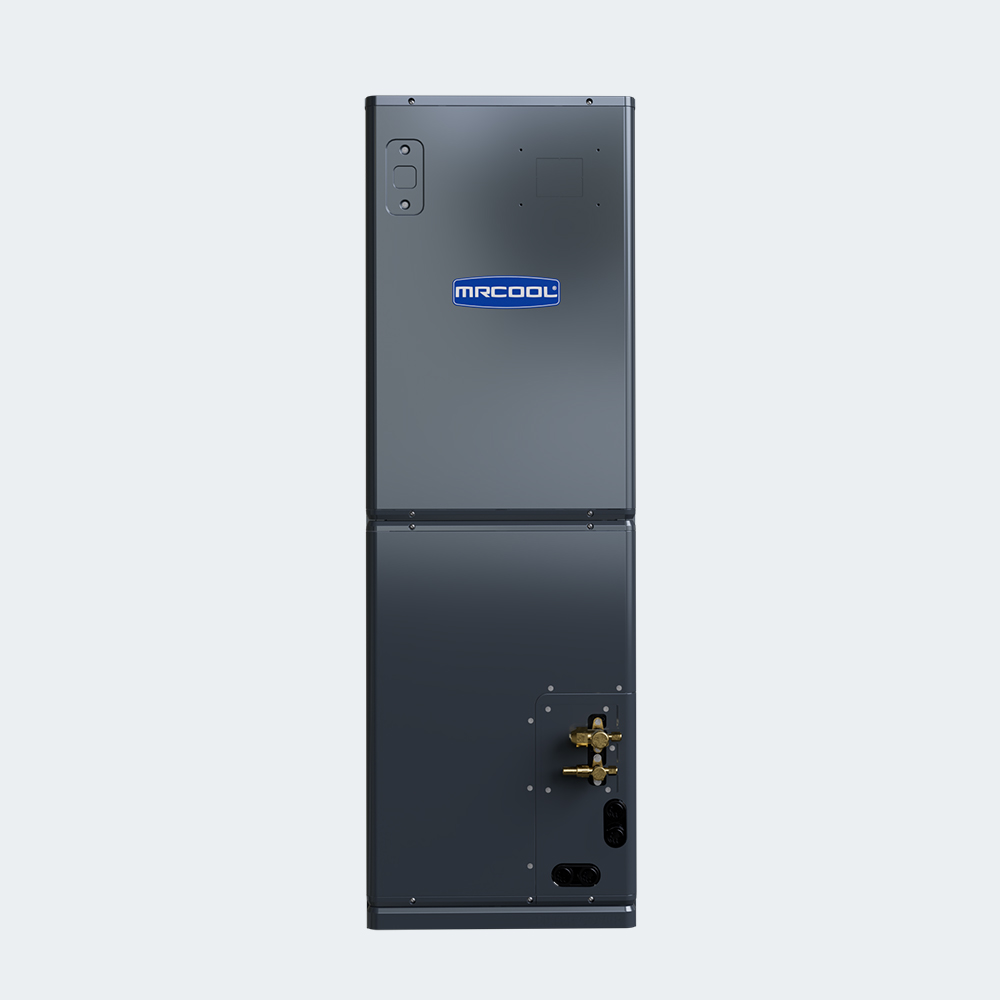

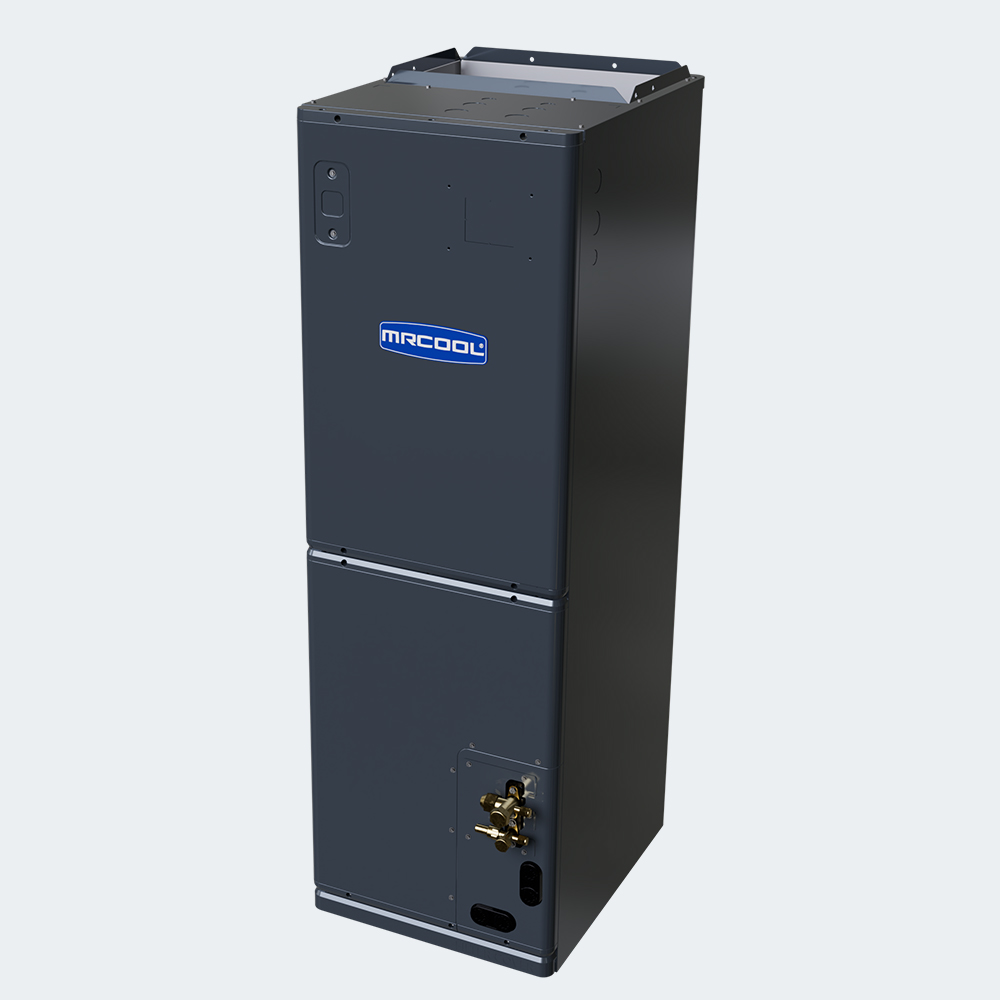

The MRCOOL� Universal� Series 36K Air Handler offers a high-efficiency, performance-driven solution for year-round indoor comfort. Designed to meet the needs of modern homeowners, it�s the perfect upgrade for those looking to reduce energy costs without sacrificing heating and cooling performance. Built for flexibility, the air handler features a multi-position design that allows for vertical, horizontal, or downflow installation. This makes it adaptable to a wide range of home layouts and ideal for tight or limited spaces. Its compact footprint simplifies placement, while compatibility with the MRCOOL� NO-VAC� Quick Connect� line set (sold separately) makes installation even easier. This innovative line set comes pre-charged and sealed, eliminating the need for vacuuming, flaring, or handling refrigerant�saving both time and installation cost. For enhanced functionality, the air handler supports optional Universal� Series Heat Kits, which can boost heating capacity during cold weather or serve as emergency backup heat during unexpected temperature drops. Inside, the system features an advanced M-shaped evaporator coil that increases the surface area for better heat exchange, improved airflow, and higher energy efficiency. Quiet operation ensures it blends seamlessly into your home environment, producing sound levels comparable to everyday conversation or a running dishwasher. The coil is constructed from 100% aluminum for superior corrosion resistance and long-term durability. Backed by a 10-year parts warranty and a 2-year limited labor warranty, the MRCOOL� Universal� 36K Air Handler delivers reliable performance and peace of mind.
Model: UAH18036-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: Universal R-454B
- MODEL: UAH18036-O
- GTIN: 00840255587846
- UPC: 840255587846
- UNIT TYPE: Universal Series Air Handler
- CFM: 1236.1/1147.8/1059.5/971.2/N\A
- TONNAGE: 3
- VOLTAGE (V): 115/208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 15
- MIN CIRCUIT AMPACITY (A): 8/6
- MOUNT TYPE: Multi-Position
- COLOR: Dark Grey
- REFRIGERANT TYPE: R-454B
- DECIBEL RATING (DBA): 48/46.5/45/33/N\A
- DECIBEL RATING LOW (DBA): 33
- DECIBEL RATING HIGH (DBA): 48
- NUMBER OF SPEEDS: 4
- MAX LINESET LENGTH (FT): 246
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 3/4
- FILTER TYPE: Replaceable
- FILTER SIZE: 16 x 20 x 1
- METERING DEVICE: EXV
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: Yes
- AUXILIARY HEATER SIZES: 5 KW / 8 KW / 10 KW / 15 KW / 20 KW
- UL LISTED: Yes
- CSA LISTED: Yes
- ETL LISTED: Yes
- BASE WARRANTY: 10 Year Parts
- BASE PARTS WARRANTY: 10 Years
- BASE LABOR WARRANTY: 2 Year
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 21.5
- NET HEIGHT (IN): 53.98
- NET WIDTH (IN): 17.52
- NET WEIGHT (LBS): 149.25
- GROSS DEPTH (IN): 31.1
- GROSS HEIGHT (IN): 57.09
- GROSS WIDTH (IN): 20.47
- GROSS WEIGHT (LBS): 182.1
- BROCHURE: Open
