Description

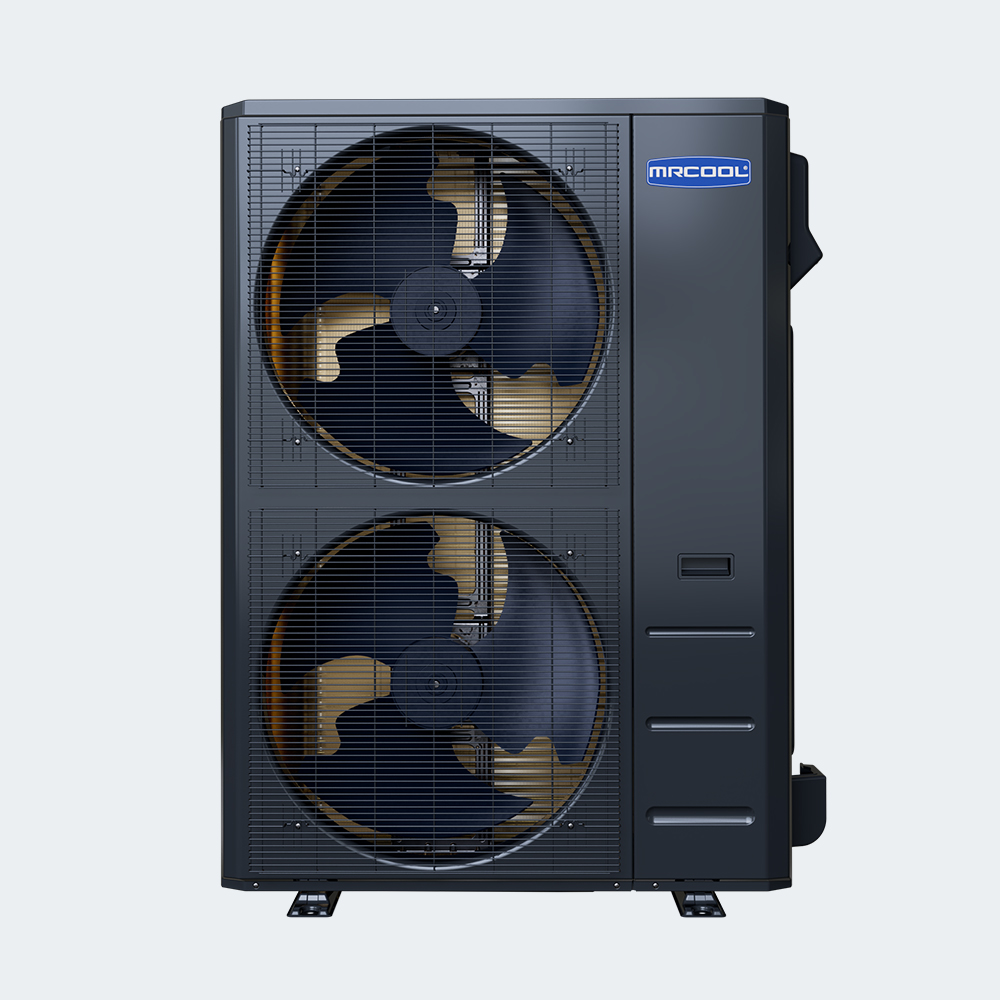

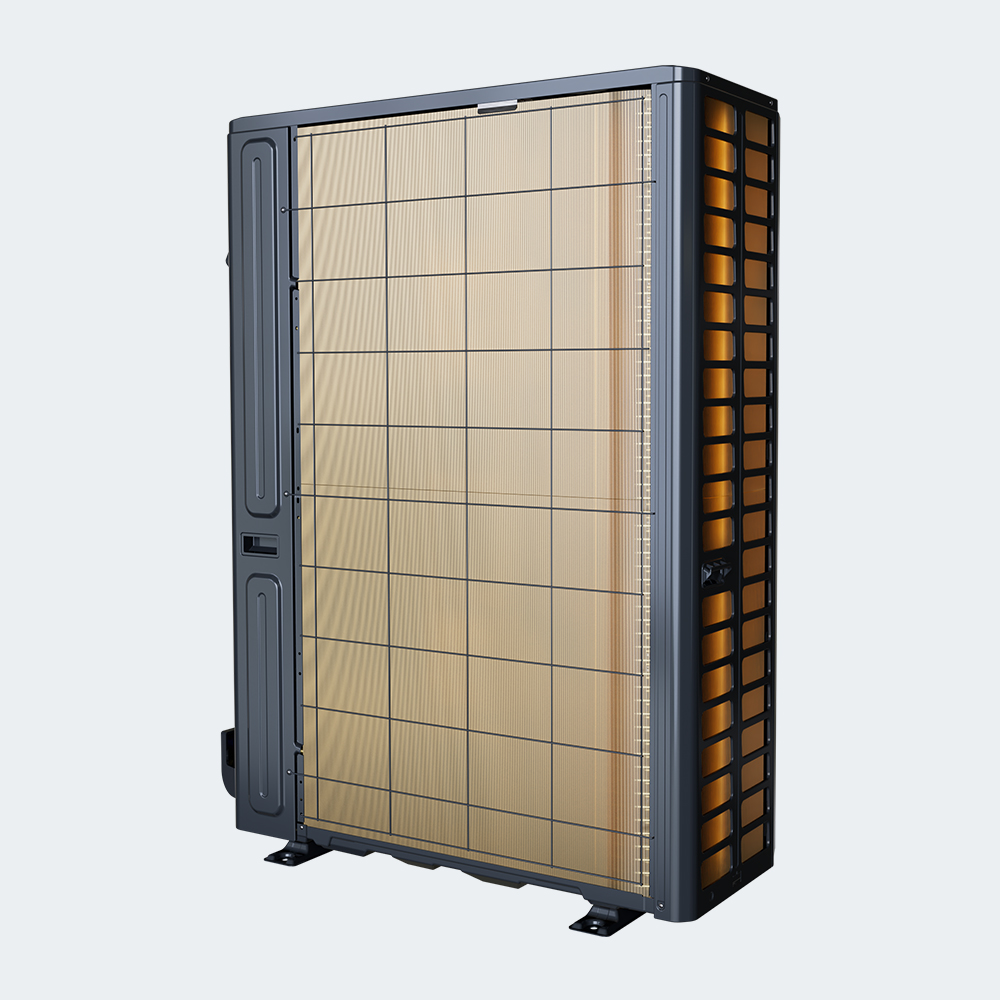

The MRCOOL� Universal� Series 60K DC Inverter Heat Pump Condenser delivers powerful, energy-efficient performance in all climates. Whether you�re facing sub-zero winter temperatures or peak summer heat, this high-capacity unit maintains strong, consistent airflow and dependable comfort throughout the year. With an impressive 17.5 SEER2 efficiency rating, it�s designed to reduce energy usage without sacrificing performance�making it an excellent choice for large residential spaces or demanding HVAC applications. Designed with flexibility and ease in mind, installation is fast and streamlined�especially when paired with the optional MRCOOL� NO-VAC� Quick Connect� line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, cutting installation time, labor costs, and the risk of error. Its compact footprint also allows for flexible placement in areas with limited outdoor clearance, making it ideal for both new builds and retrofit projects. At the core of this system is advanced DC inverter technology, which enables the condenser to adjust its output continuously based on your home�s heating or cooling needs. This eliminates the frequent cycling common with traditional systems, resulting in quieter operation, greater energy efficiency, and less wear on components�helping extend the lifespan of the unit. Whether you�re upgrading from an outdated system or planning a new installation, the MRCOOL� Universal� Series 60K Condenser offers exceptional performance, energy savings, and dependable comfort. It�s backed by a 10-year parts warranty and a 2-year limited labor warranty for added peace of mind.
Model: UHP18060-O
Ships from MRCOOL. Allow at least 10 days for processing and shipping. Delivery charges are calculated and collected at checkout.
Specifications
- BRAND NAME: MRCOOL
- SERIES: Universal R-454B
- MODEL: UHP18060-O
- GTIN: 00840255587914
- UPC: 840255587914
- UNIT TYPE: Universal Series Heat Pump
- SEER2: Up to 17.5
- EER2: Up to 12
- HSPF2-4: 9.5
- HSPF2-5: 7.7
- TONNAGE: 5
- COOLING CAPACITY (BTU): 54000
- HEATING CAPACITY (BTU): 55000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 40
- MIN CIRCUIT AMPACITY (A): 40
- COLOR: Dark Grey
- REFRIGERANT TYPE: R-454B
- REFRIGERANT VOLUME (OZ): 183.42
- DECIBEL RATING (DBA): 64.5
- INVERTER: DC
- MAX LINESET LENGTH (FT): 246
- LIQUID LINE SIZE: 3/8
- SUCTION LINE SIZE: 3/4
- COMPRESSOR MOTOR TYPE: Twin-Rotary
- CONDENSER FAN MOTOR RPM: 1000/900/750/650
- METERING DEVICE: EXV
- UL LISTED: Yes
- CSA LISTED: Yes
- ETL LISTED: Yes
- BASE WARRANTY: 10 Year Parts
- BASE PARTS WARRANTY: 10 Years
- BASE LABOR WARRANTY: 2 Year
- CONTAINS ELECTRONICS: Yes
- CONTAINS CHEMICALS: Yes
- CONTAINS COMPRESSED GAS: Yes
- PROPOSITION 65 WARNING: Yes
- NET DEPTH (IN): 16.34
- NET HEIGHT (IN): 52.48
- NET WIDTH (IN): 37.48
- NET WEIGHT (LBS): 242.95
- GROSS DEPTH (IN): 19.49
- GROSS HEIGHT (IN): 58.27
- GROSS WIDTH (IN): 43.11
- GROSS WEIGHT (LBS): 275.13
- BROCHURE: Open
