Description

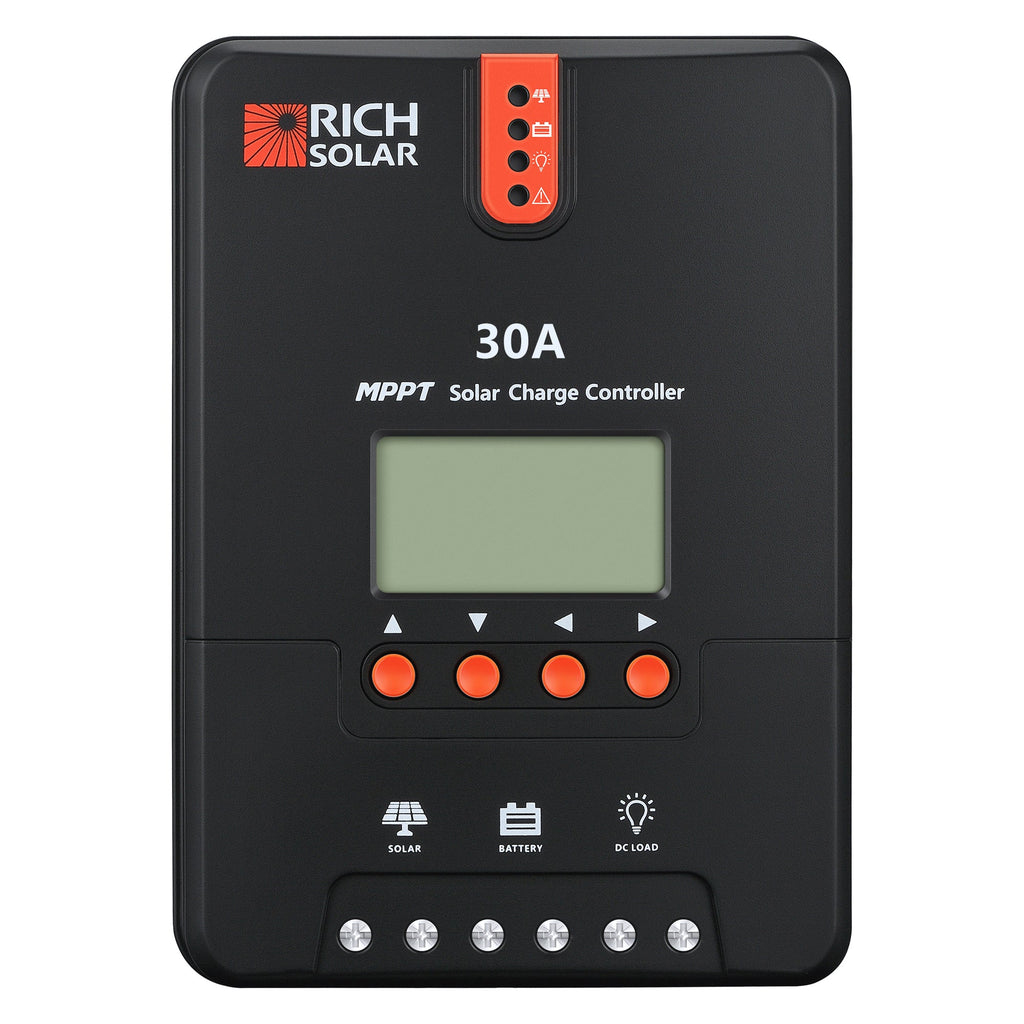

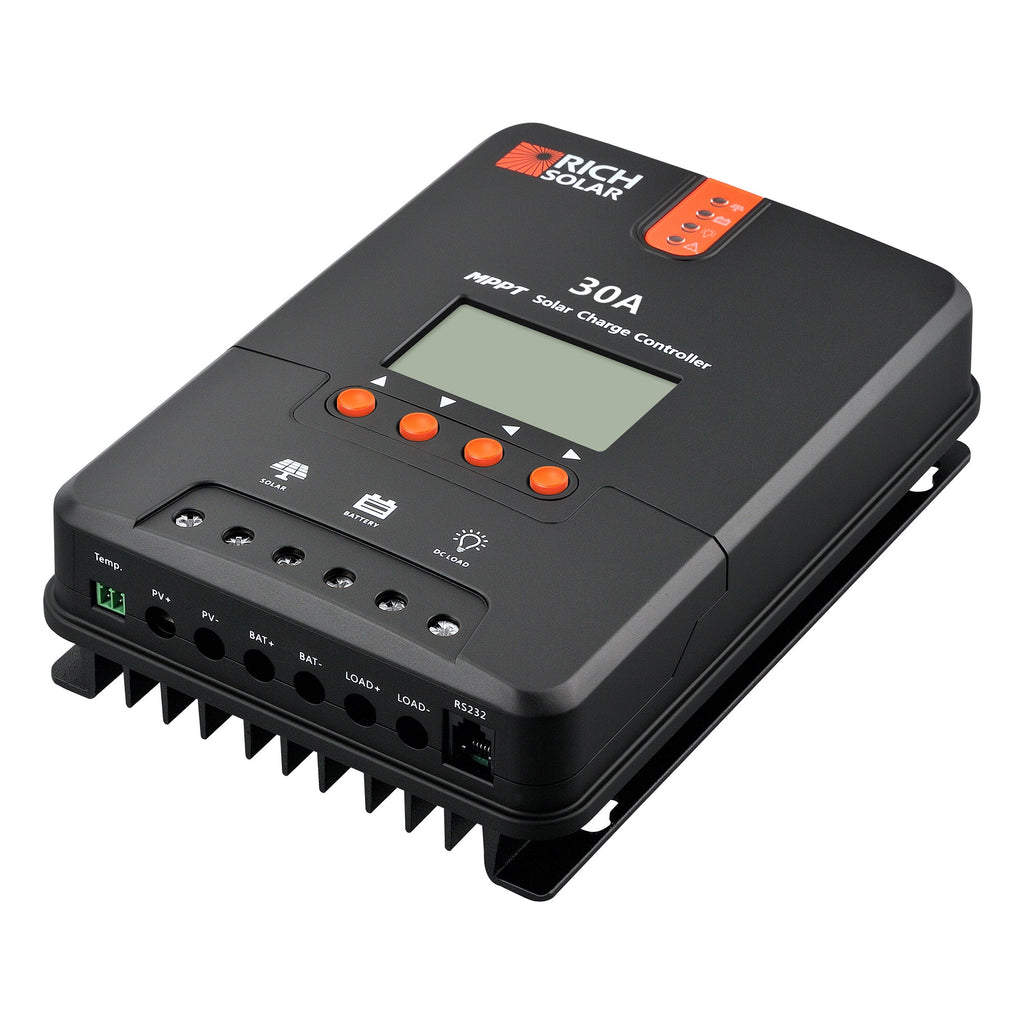

RICH SOLAR 30 Amp MPPT Solar Charge Controller, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Default Title | RS-MPPT30 |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Manufacturer specifications
| Nominal System Voltage | 12V/24V Auto |
|---|---|
| Rated Charging Current | 30A |
| Rated Load Current | 20A |
| Max Solar Input Voltage | 100V(25℃), 90V(-25℃) |
| Discharge Circuit Voltage drop | ≤0.15V |
| Net Weight | 4.41lbs |
| Dimensions | 9.37 x 6.81 x 2.85 in |
| Battery Wire Diameter | 6mm² |
| Load Wire Diameter | 5mm² |
| No-load Loss | 0.7W to 1.2W |
| Battery Voltage | 9V to 35V |
| Max. Power Point Voltage Range | Battery Voltage +2V to 75V |
| Max. Photovoltaic System Input Power | 400W/12V, 800W/24V |
| Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99% |
| Temperature Compensation Factor | -3mv//2V Default |
| Operating Temperature | -35°C to +45°C |
| Protection Degree | IP32 |
| Communication Method | RS232 |
| Altitude | ≤3000m |
| Max. Capacitive Load Capacity | 1000uF |
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
