Description

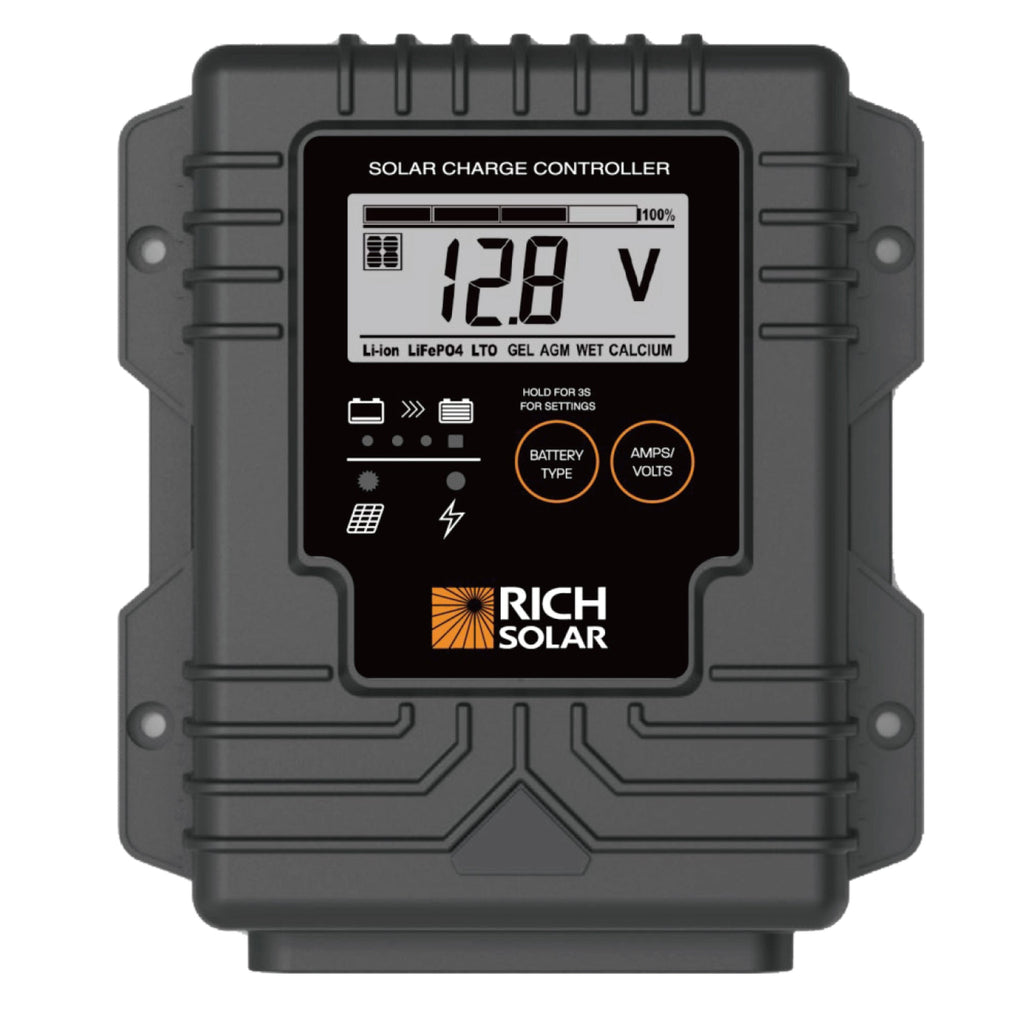

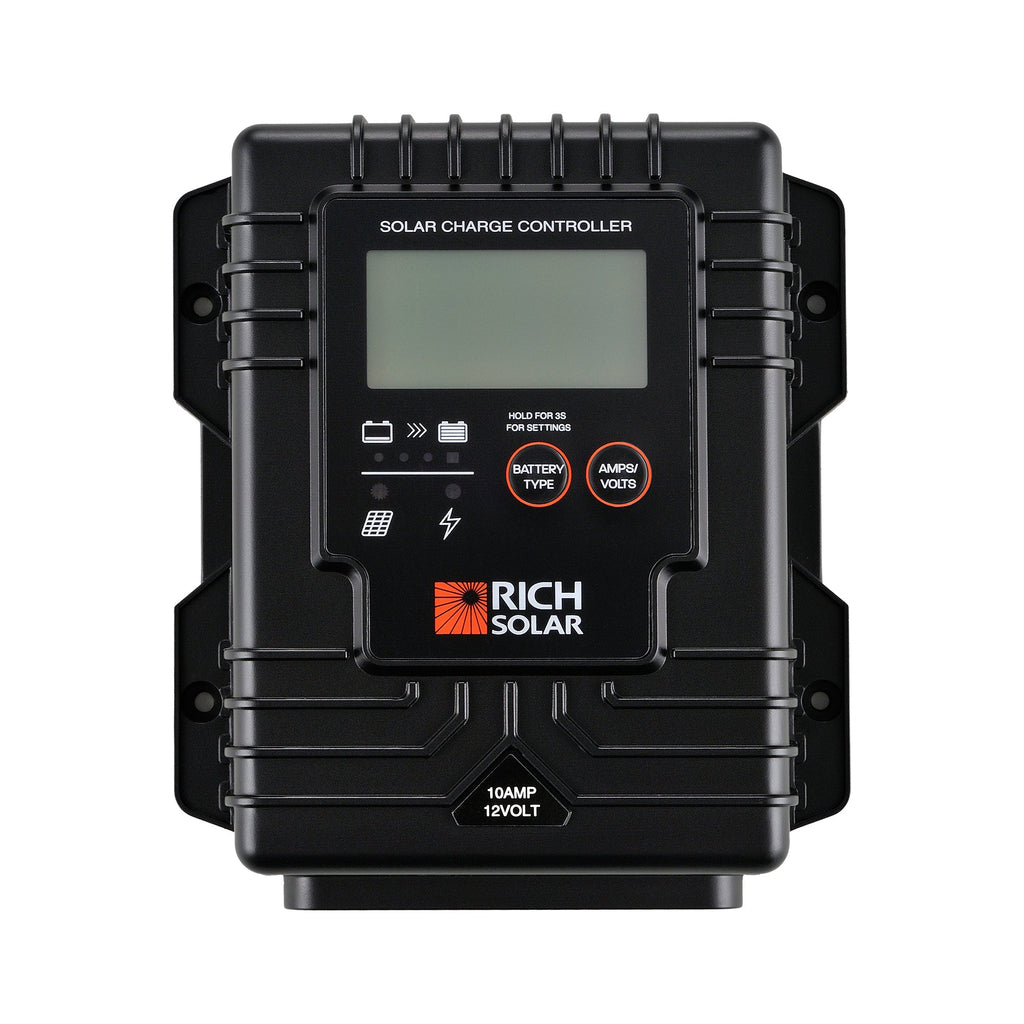

RICH SOLAR BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Default Title | RS-PWM10WP |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Manufacturer specifications
| Rated solar panel amps | Max. 10AMP |
|---|---|
| Normal input Solar cell array voltage | 15-22VDC |
| Max. solar cell array voltage (output has no load) | 25VDC |
| The controller's lowest operating voltage (at solar or battery side) | 8VDC |
| Standby current consumption at night | 5mA |
| Maximum voltage drop-Solar panel to battery | 0.25VDC |
| Grounding | Positive Ground |
| Minimum battery start charging voltage | 3VDC |
| Soft start charging voltage | 3-10±0.2VDC |
| Soft start charging current (50% PWM duty) | Up to 5AMP |
| Equalization charging voltage at 25 ℃ | 15.5±0.2VDC |
| Equalization charging timer timed out | 2 Hours |
| Battery temperature compensation coefficient | -24mV/°C |
| Temperature compensation range | -20~+50°C (-4°F to 122°F) |
| Over temperature protection during charging | 65°C (149℉) |
| Input-output terminal | M5 terminals |
| Controller material | Plastic, Standard ABS |
| Power terminal maximum stranded wire size | #10AWG stranded-5mm² |
| Mounting | Vertical wall mounting |
| IP grade | IP65 |
| Net weight | Approx. 0.3kg/0.66lb |
| Operating temperature | -25~50°C(-13~122℉) |
| Storage temperature | -40~85°C(-40~185℉) |
| Operating Humidity range | 100% no condensation |
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
