Description

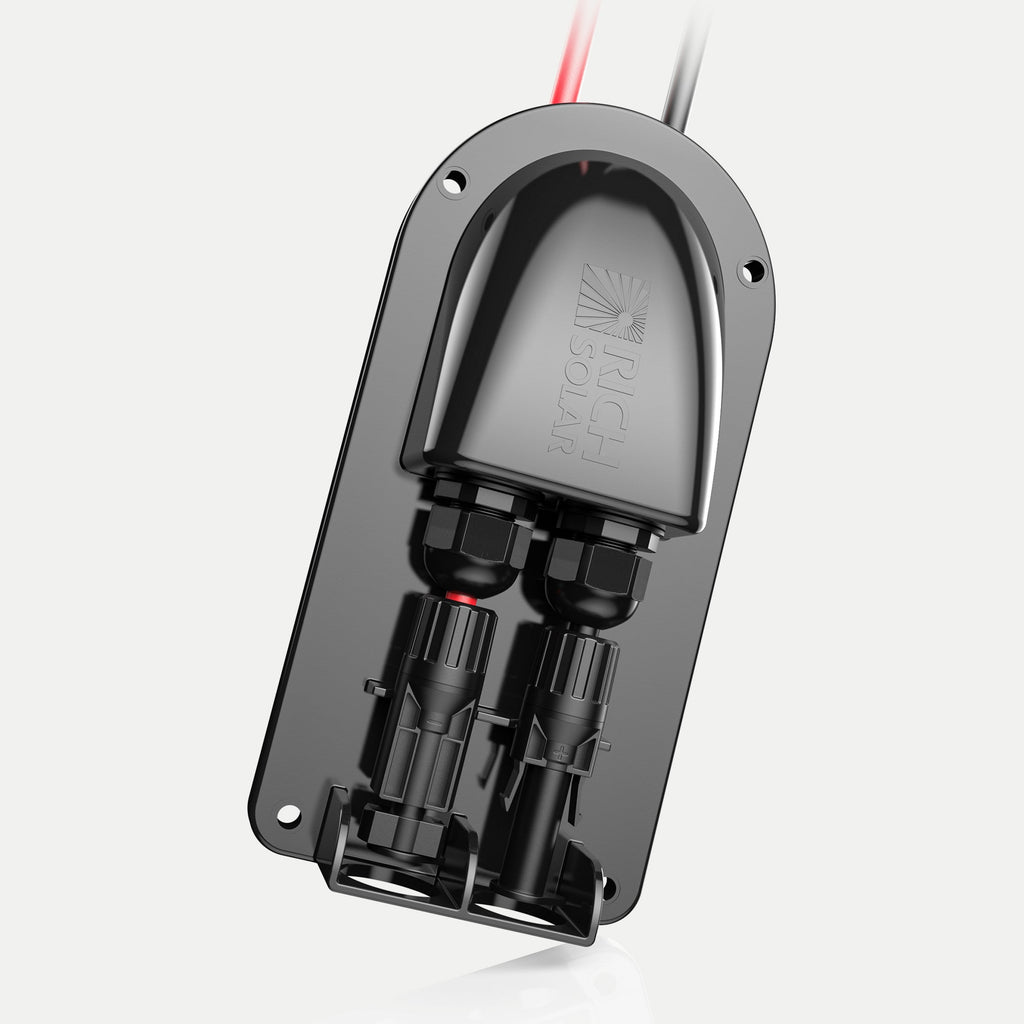

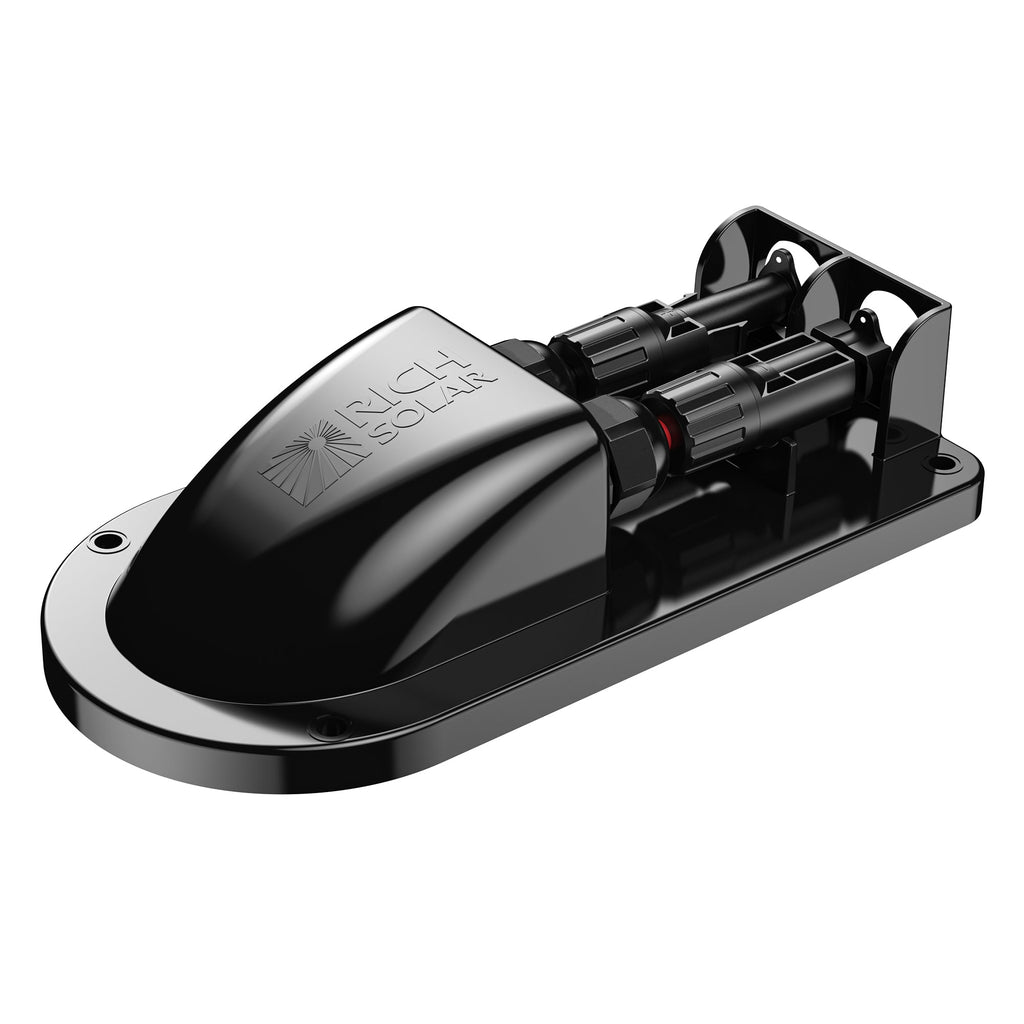

RICH SOLAR Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Default Title | RS-G02 |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
Manufacturer product details
- Pre-Wired Design: Pre-assembled with UL 1015 10AWG tin-plated copper wires and solar connectors for faster installation.
- High Current Capacity: Supports up to 42A maximum and 30A continuous current.
- Heat-Resistant Insulation: VW-1 rated PVC insulation resists heat up to 221°F (105°C) for enhanced safety and durability.
- Flame-Retardant Housing: Durable PP construction provides reliable outdoor performance from -40°F to 185°F.
- Weatherproof Design: IP68 cable gland helps protect against water and dust in outdoor environments.
- Material: Flame-Retardant Polypropylene (PP)
- Operating Temperature: -40°F to 185°F
- Dimensions: 7.2 × 3.8 × 2.0 in
- Weight: 0.34 lb
- Package Dimensions: 8 × 4 × 3 in
- Gross Weight: 1 lb
- Maximum Current: 42A
- Continuous Current: 30A
- Maximum Voltage: 600V
- Wire Type: UL 1015 10AWG
- Conductor Material: Tin-Plated Copper
- Wire Insulation: PVC (VW-1 Flame Rated)
- Wire Temperature Rating: 5°F to 221°F
- Type: PG9
- Material: PA6
- Protection Rating: IP68
- Flame Class: UL94 V-2
