Description

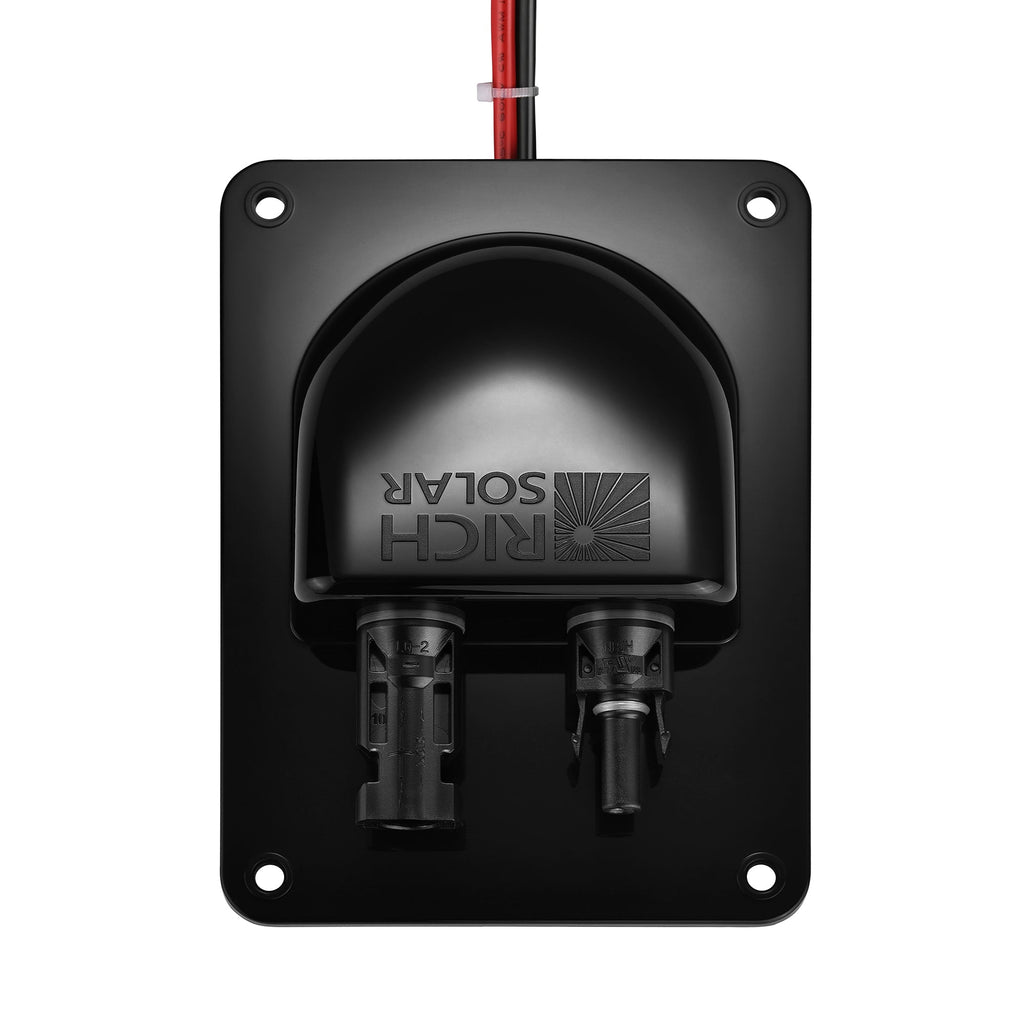

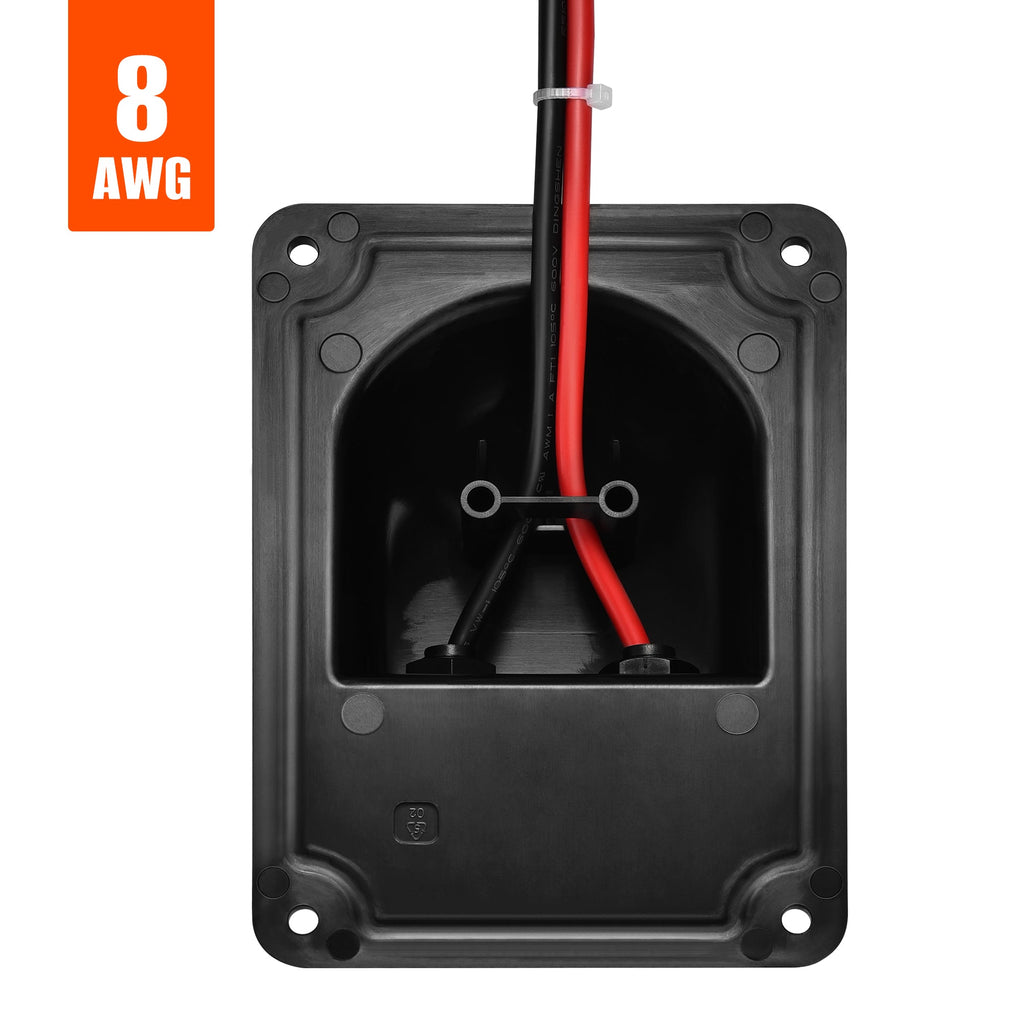

RICH SOLAR Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Default Title | RS-G05 |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
Manufacturer product details
- Pre-Wired Design: Includes 8AWG UL 1015 tin-plated copper wires with pre-installed solar connectors for faster installation.
- High Current Capacity: Supports up to 50A maximum and 37.7A continuous current.
- Heat-Resistant Insulation: VW-1 rated PVC insulation resists heat up to 221°F (105°C) for enhanced safety and durability.
- Flame-Retardant Housing: Durable PP construction provides reliable outdoor performance from -40°F to 185°F.
- Weatherproof Design: IP68 solar connectors provide reliable protection against water and dust in outdoor environments.
- Housing Material: Flame-Retardant Polypropylene (PP)
- Operating Temperature: -40°F to 185°F
- Dimensions: 5.9 × 4.3 × 1.6 in
- Weight: 0.34 lb
- Package Dimensions: 7 × 5 × 2 in
- Gross Weight: 1 lb
- Maximum Current: 50A
- Continuous Current: 37.7A
- Maximum Voltage: 600V
- Wire: UL 1015 8AWG
- Conductor Material: Tin-Plated Copper
- Wire Insulation: PVC (VW-1 Flame Rated)
- Wire Temperature Rating: 5°F to 221°F
- Protection Rating: IP68
- Flame Class: UL94 V-0
