Description

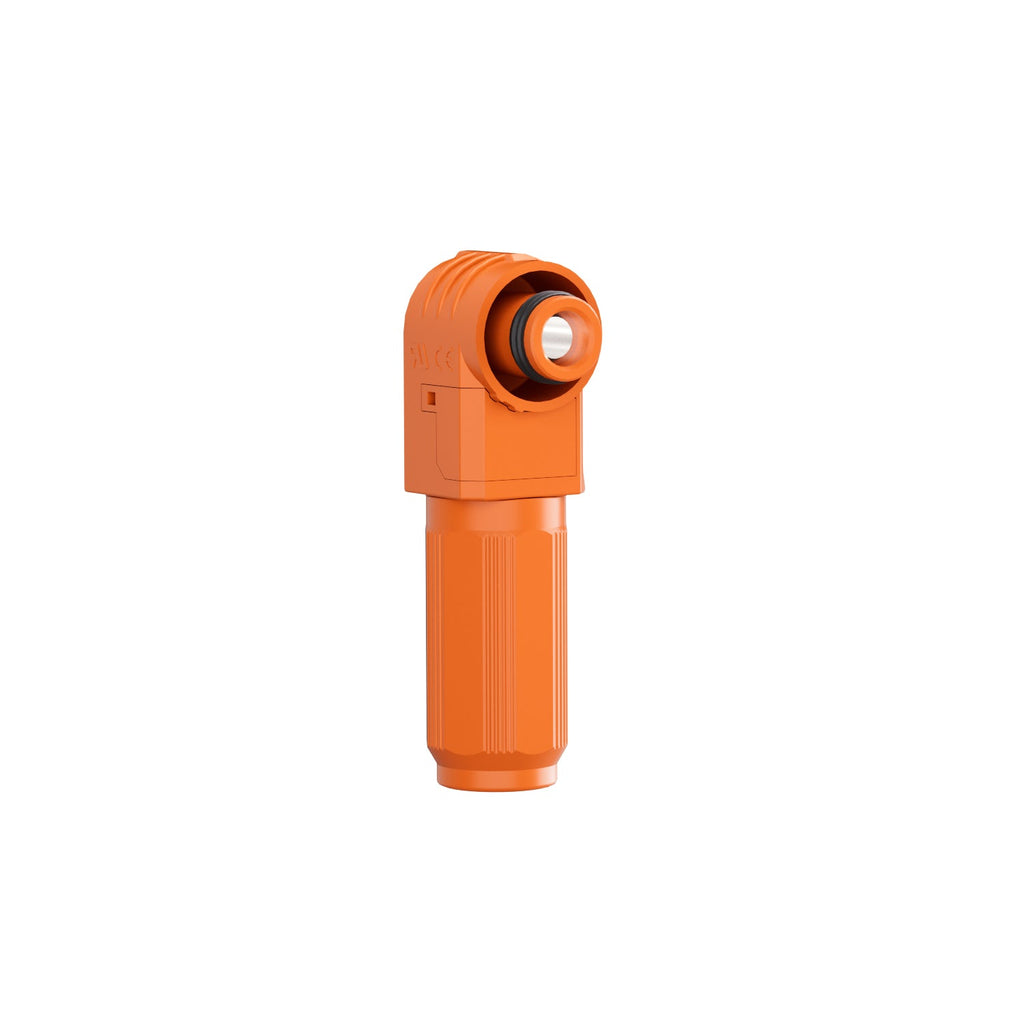

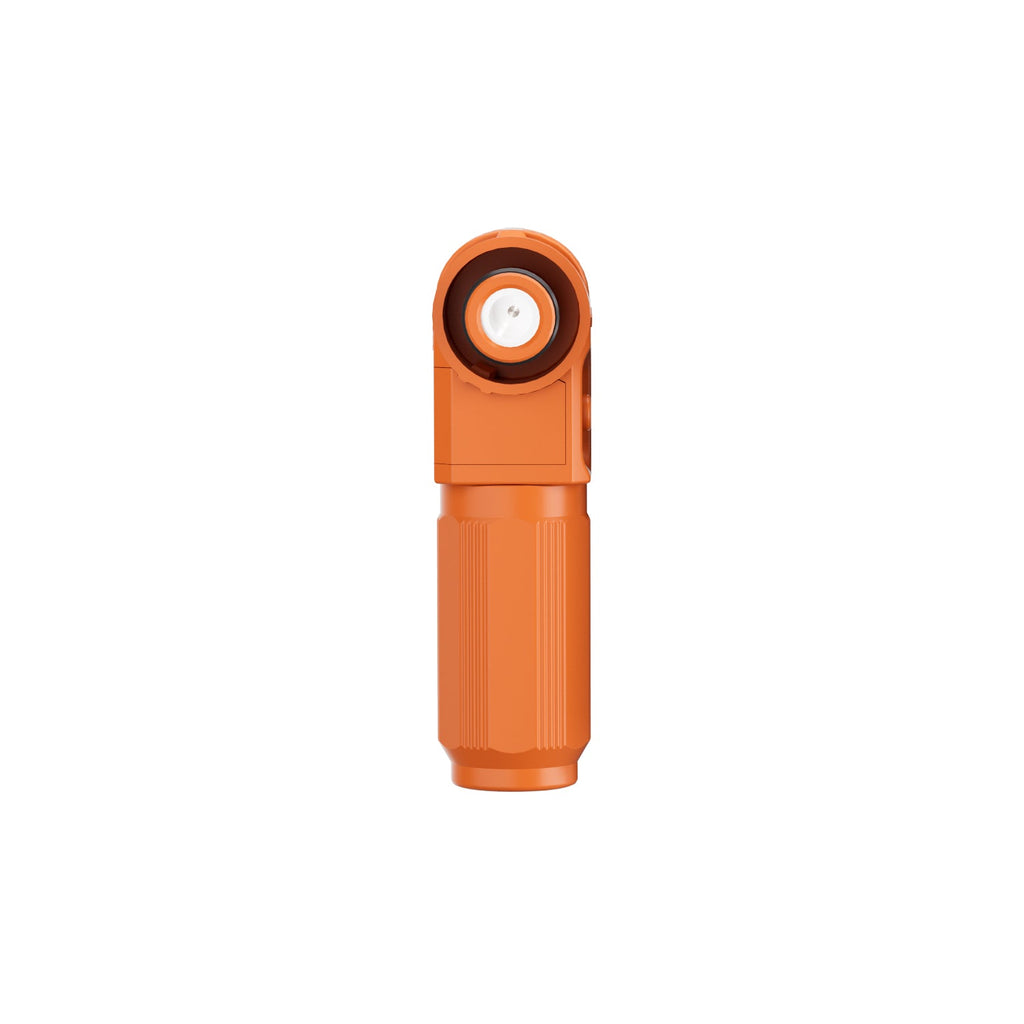

RICH SOLAR Energy Storage Connector | 120A 4AWG Wall-Mount DC Connector, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Positive Plug | RS-8001 |
| Negative Plug | RS-8002 |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
Manufacturer product details
- ALPHA 5 PRO Compatible: Designed for custom cable connections to the ALPHA 5 PRO battery.
- 1500V DC / 120A Rated: Supports high-power DC applications.
- IP67 Protection When Mated: Provides reliable protection in harsh outdoor environments.
- Wide Temperature Range: Reliable operation from -40°F to 257°F.
- Low-Resistance Copper Contacts: Provides efficient, durable, and oxidation-resistant performance.
- Model: RS-8001 / RS-8002
- Rated Voltage: 1500 V DC
- Rated Current: 120 A
- Contact Resistance: ≤ 0.5 mΩ
- Insulation Resistance: ≥ 5000 MΩ (Dry)
- Dielectric Withstand Voltage: 6800 V/min
- Mounting Type: Wall Mount
- Compatible Cable: 4AWG / 25 mm²
- Recommended Strip Length: 13-14 mm
- Mating Cycles: 100 times
- Insertion / Withdrawal Force: ≤ 60 N / > 10 N
- IP Rating: IP67 (Mated)
- Operating Temperature: -40°F to 257°F (-40°C to +125°C)
- Flammability: UL94 V-0
- Dimensions: 2.60 × 0.63 in (66 × 16 mm)
- Net Weight: 1.31 oz (37g)
- This connector is specifically designed and intended for use only with RICH SOLAR ALPHA 5 PRO batteries. We do not recommend or support the use of this connector with any non-ALPHA 5 PRO batteries or third-party battery systems. Any damage, malfunction, safety issue, or other problems resulting from improper use or incompatible battery connections will not be covered by RICH SOLAR, and RICH SOLAR assumes no liability or responsibility for such use.
