Description

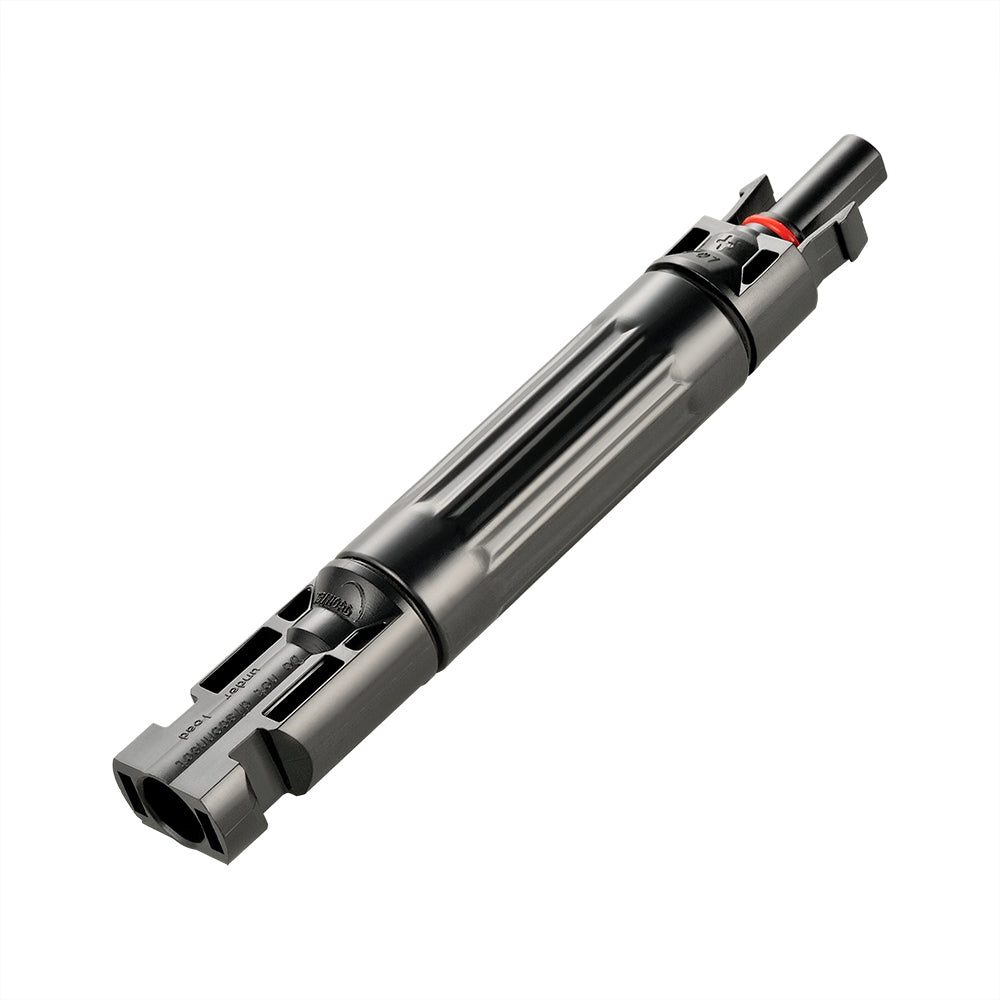

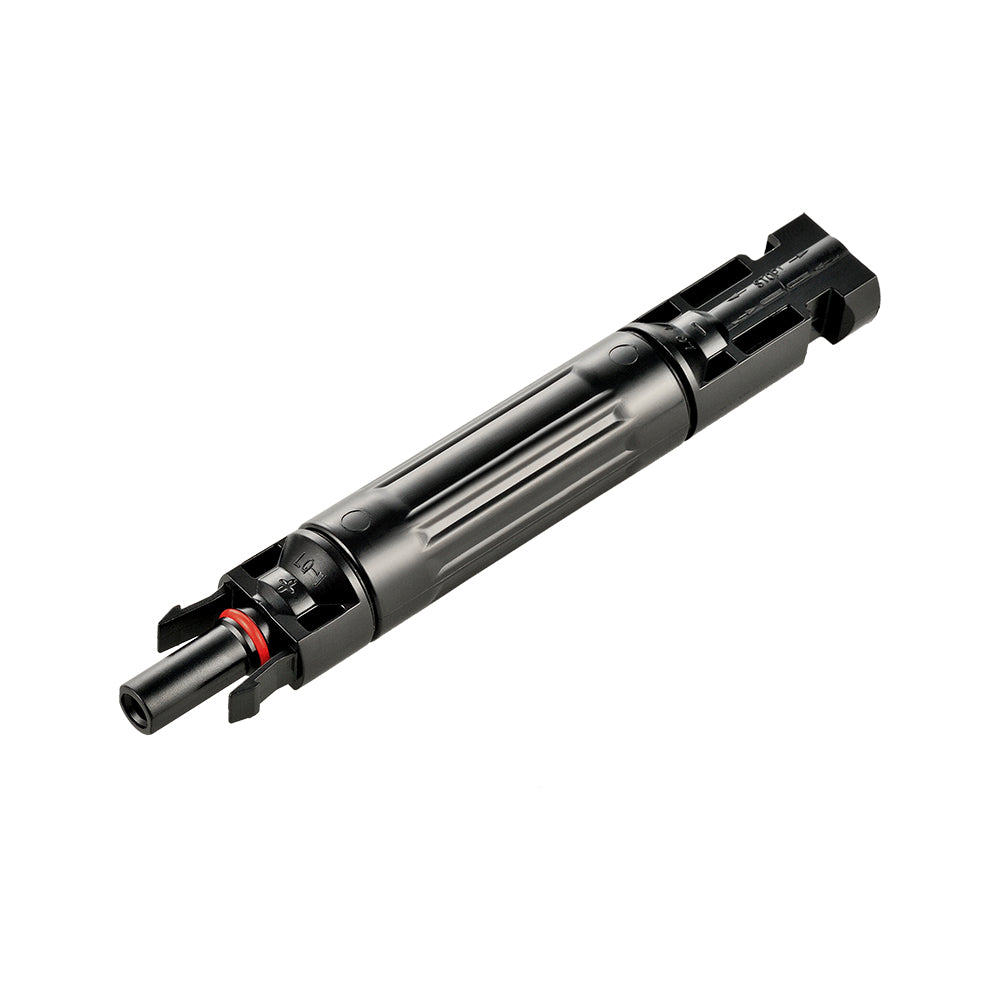

RICH SOLAR Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| 10A | RS-SC10F |
| 15A | RS-SC15F |
| 20A | RS-SC20F |
| 30A | RS-SC30F |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Manufacturer specifications
| Rated Current | 10A, 15A, 20A, or 30A |
|---|---|
| Rated Voltage | 1000V DC |
| Protection Rating | IP2X, IP67 |
| Flame Class | UL94 V-0 |
| Safety Class | II |
| Overvoltage Category | CAT III |
| Connector Type | Solar Connector (MC4 Compatible) |
| Contact Material | Silver-Plated Copper |
| Insulation Material | PPO |
| Contact Resistance | 1mΩ |
| Insertion Force | ≤50N |
| Withdrawal Force | ≥50N |
| Test Voltage | 6000V AC (50Hz, 1 min) |
| Operating Temperature | -40°F to 257°F |
| Package Dimensions | 3 × 8 in |
| Gross Weight | 1 lb |
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
