Description

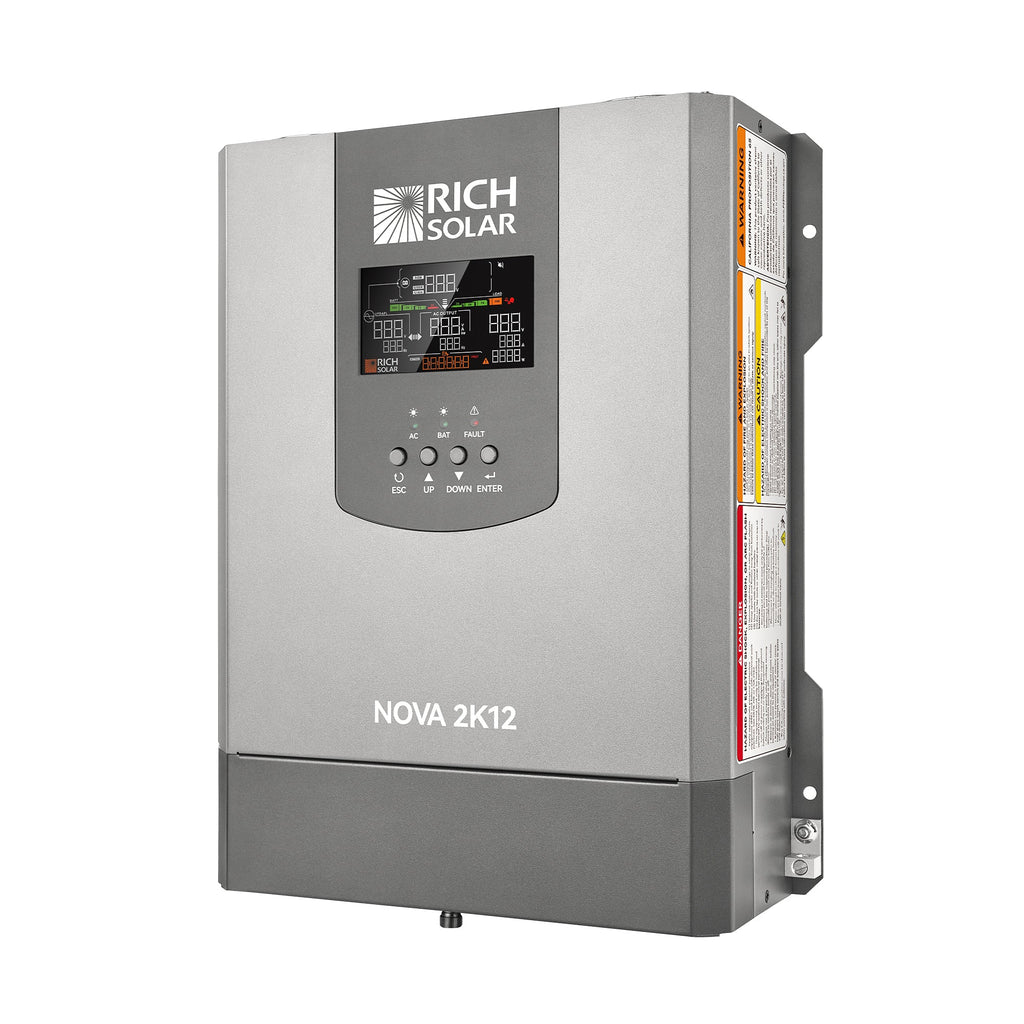

RICH SOLAR NOVA SWITCH 2K | 2000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Default Title | RS-V2P12TS |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
Manufacturer product details
- 2,000W Pure Sine Wave Output: Delivers reliable AC power with a 4,000W surge capacity for RVs, boats, and off-grid applications.
- Up to 91% Peak Efficiency: Maximizes battery runtime while reducing energy loss.
- Built-in Transfer Switch (<20ms): Automatically switches between shore power and inverter power for uninterrupted operation.
- Multiple Power Sources: Supports utility grid power or AC generators for AC input and 12V battery power for inverter operation.
- Battery Compatibility: Compatible with 12V deep-cycle and lithium (BMS) batteries.
- Configurable AC Output: Selectable 108V, 110V, or 120V output voltage and 50Hz or 60Hz output frequency.
- Pure Sine Wave Output (<5% THD): Delivers clean, stable power for sensitive electronics and household appliances.
- Advanced Protection System: Adjustable low-voltage shutdown (10.5V–12.8V) with overload, short-circuit, and over-temperature protection.
- Certified to UL 458 and FCC Part 15 standards.
- Nominal DC Voltage: 12V DC
- Operating voltage range:LBCO–18.0V DC
- Nominal current at full load: 192A DC
- Nominal Input Voltage: 120V AC
- Operating Voltage Range: 80–140V AC (Full Power)
- Input Frequency: 50Hz / 60Hz Selectable
- Rated Output Power: 2000W
- Surge Power: 4000W (5 sec)
- Output voltage options: 120V AC, 110V AC, or 108V AC
- Continuous current: 16.7A
- Output Frequency: 50Hz or 60Hz Selectable
- Total Harmonic Distortion (THD): <5%
- Peak Efficiency: 91%
- Transfer Time: <20ms
- Transfer Relay Rating (A): 30A
