Description

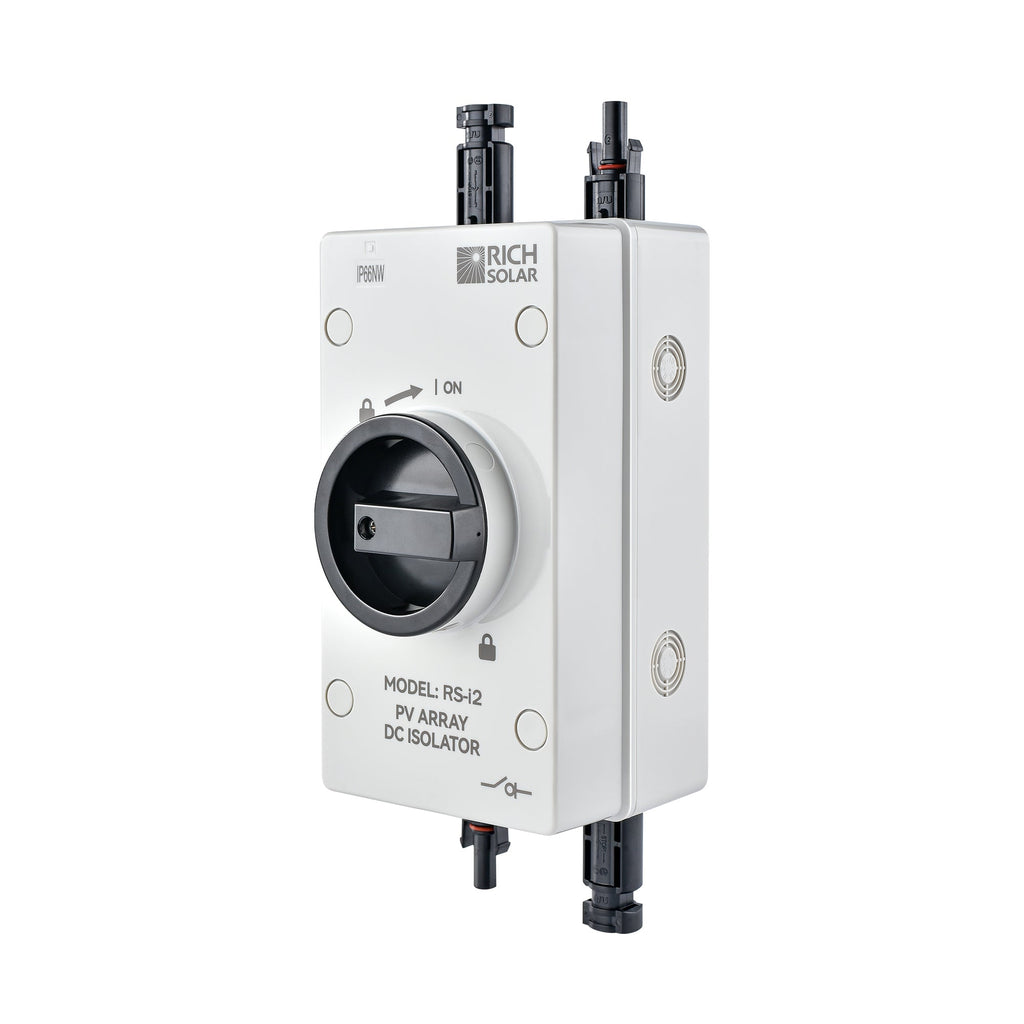

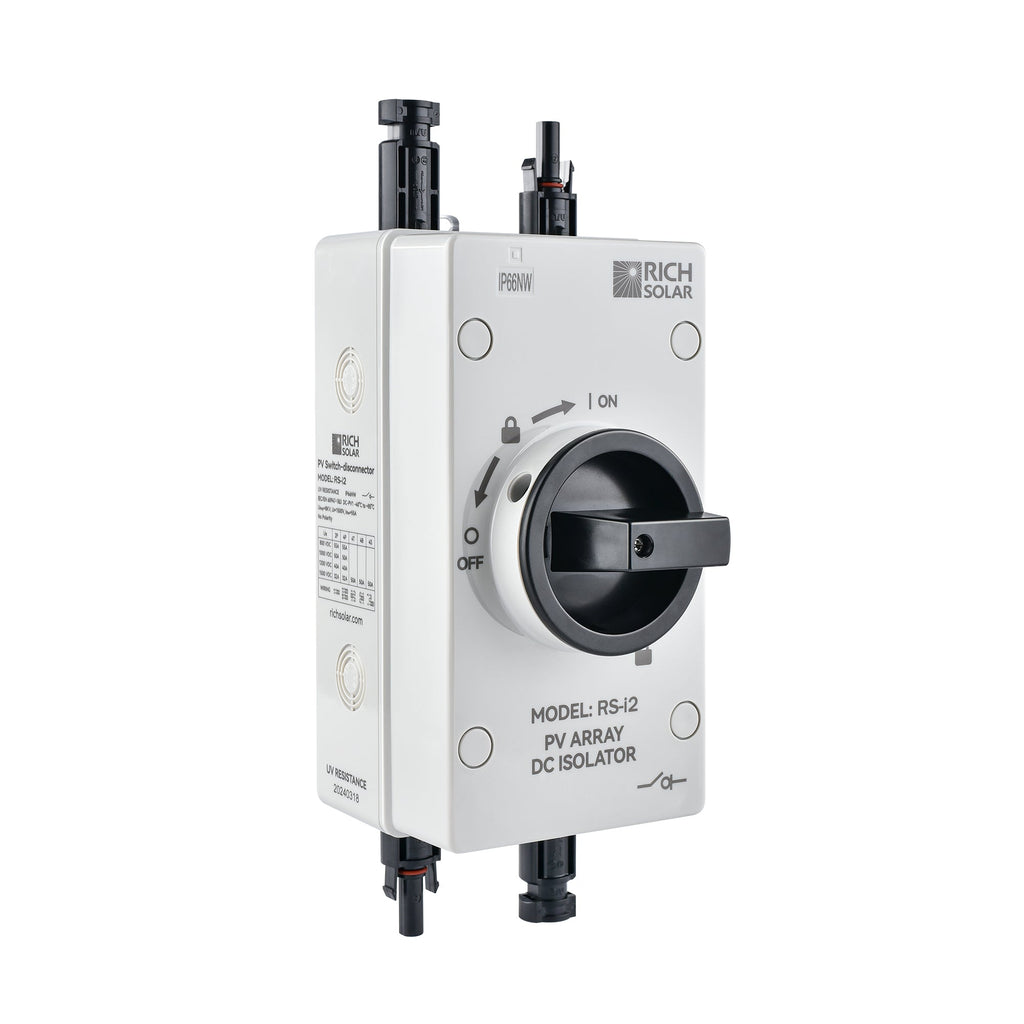

RICH SOLAR Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Default Title | RS-i2 |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Manufacturer specifications
| Rated Thermal Current (Ith) | 40A |
|---|---|
| Rated Insulation Voltage (Ui) | 1500V |
| Poles / Circuit | 2P in series |
| Supported PV Strings | 1 PV string |
| Impulse Withstand Voltage | 8 kV |
| Arc Suppression Time | <3ms |
| IP Rating | IP66NW |
| Operating Temperature | -40℉ to 158℉ |
| Housing Material | Flame-retardant PC (UL94 V-0) |
| Dimensions (HxWxD) | 9.8x3.8x4.3 in |
| Weight | 1.3lb (0.57kg) |
| Certifications | CE, UL 508I |
| Warranty | 3 years |
| Package Dimensions | 5 × 5 × 11 in |
| Gross Weight | 2 lb |
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
Delivery & availability
Standard delivery within the contiguous United States is included. This item is supplier-fulfilled. Contact sales@cartergoods.com for delivery to other destinations or special delivery requirements.
