Description

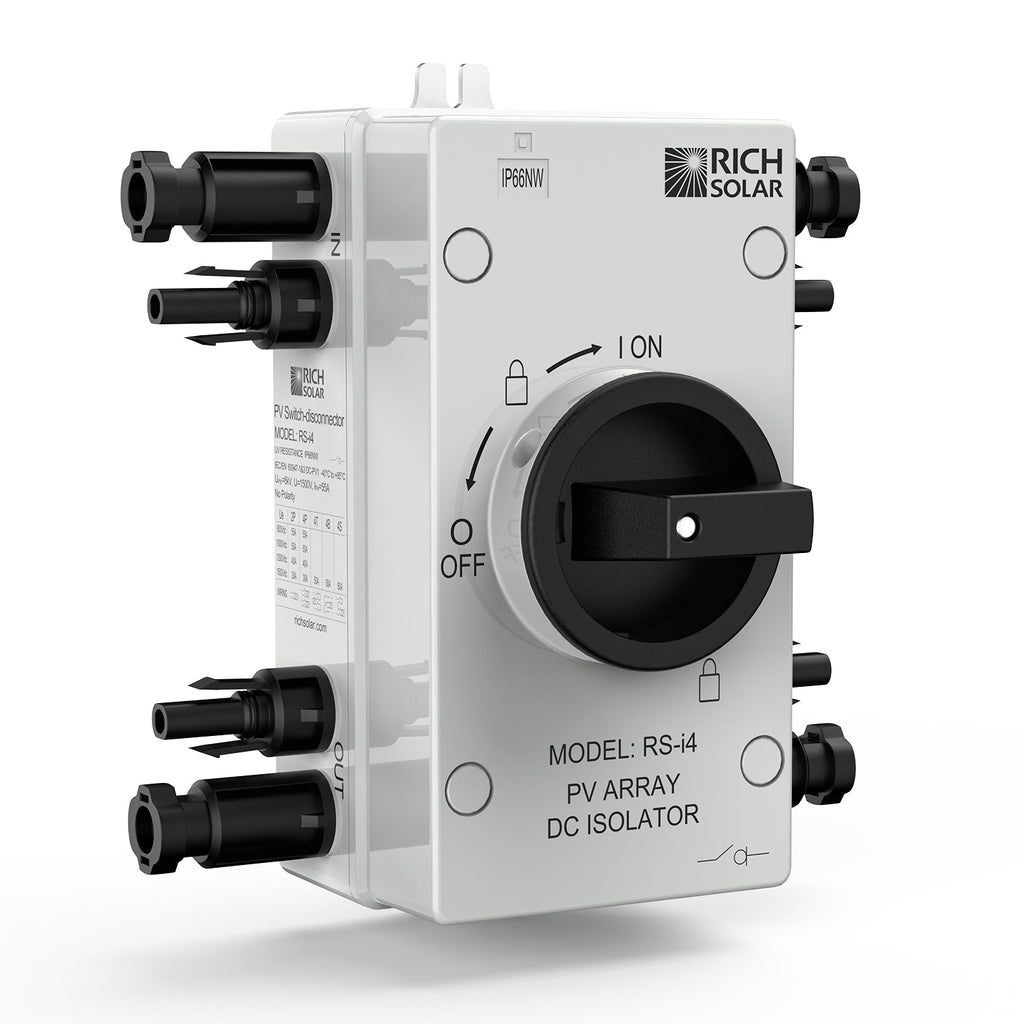

RICH SOLAR Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch, supplied by RICH SOLAR and sold by Carter Goods.
| Configuration | Manufacturer SKU |
|---|---|
| Default Title | RS-i4 |
Match system voltage, component ratings, and installation requirements to your application before ordering. Carter Goods is your contact for order and delivery support.
Manufacturer specifications
| Rated Insulation Voltage (Ui) | 1500V |
|---|---|
| Rated Thermal Current (Ith) | 40A |
| Poles / Circuit | 4P in series |
| Supported PV Strings | 2 PV strings |
| Impulse Withstand Voltage | 8 kV |
| IP Rating | IP66NW |
| Arc Suppression Time | <3 ms |
| Operating Temperature | -40℉ to 158℉ |
| Housing Material | Flame-retardant PC (UL94 V-0) |

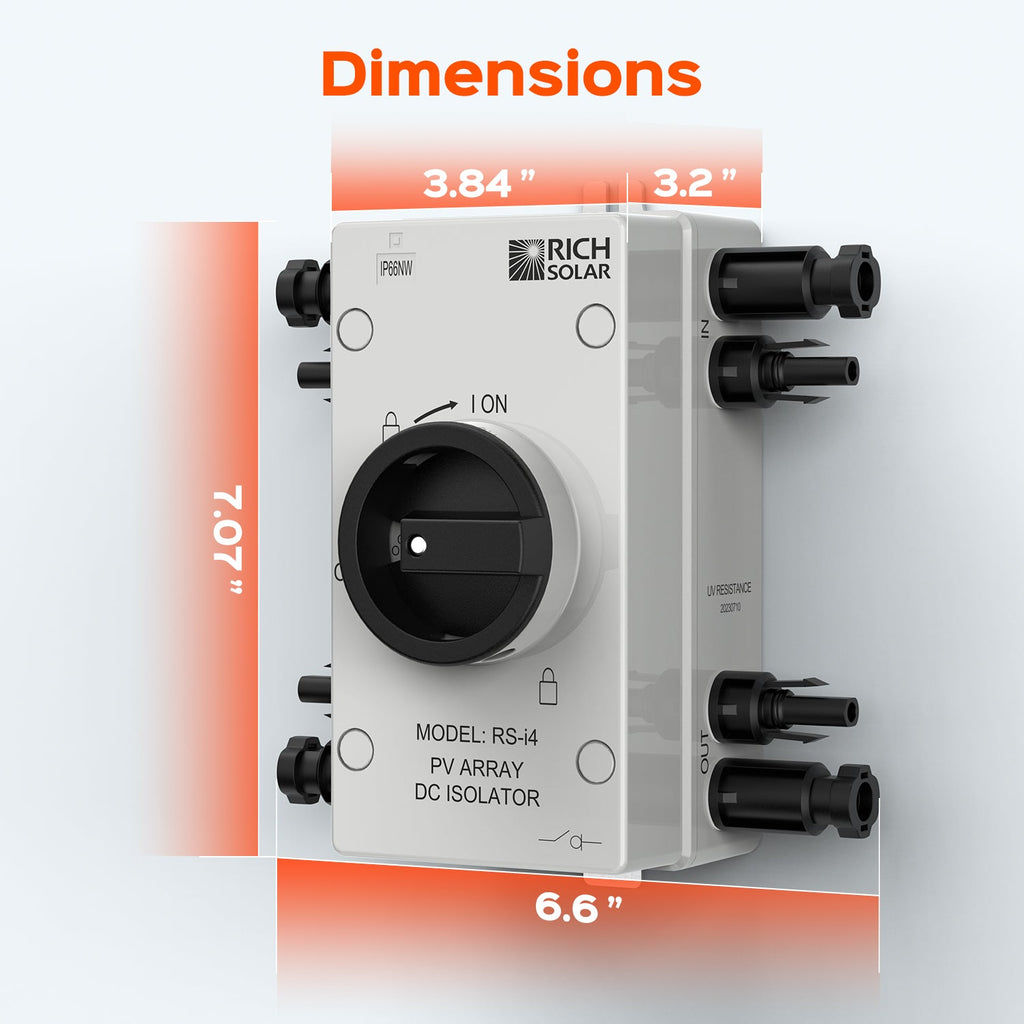

| Dimensions (HxWxD) | 7.1x6.8x4.3 in |
| Net Weight | 1.6lb |
| Certifications | CE, UL 508I |
| Warranty | 3 years |
| Package Dimensions | 8 × 5 × 8 in |
| Gross Weight | 3 lb |
Before you order
Confirm the selected configuration, dimensions, system voltage, and component compatibility. Contact Carter Goods Sales for product selection and order support.
